Technical Specifications
Wheel Diameter
4
Caster City Recommendation
Ollie Recommends!
Non-Marking
Yes
Kingpinless
Yes
Wheel Width
1 1/4
Wheel Bearing
Ball
Stem Size
See OPTIONS ABOVE
Maximum Capacity (lbs)
250 lbs
Overall Height
5"
Swivel Radius
3 1/4
Color
Gray
K3 Stem Add Ons
GR95, SQ3/4, SQ7/8, SQ7/8-GR
Weight
2.5 lbs
- Description
- FAQ
- Reviews
- CASTER CITY GUARANTEE
- Measurement Conversion Table
- Articles and How to Guides
Description
4″ High Capacity Rubber Wheel.Ball Bearings in the Wheel. Shown in photo with 5″ Wheel.
Application Use
- Healthcare (Up to 350 lbs): Hospital beds, medical carts, IV poles — Non-marking, rubber wheels
- Education (Up to 300 lbs): Classroom chairs, library carts — Polypropylene, rubber wheels
- Offices (Up to 300 lbs): Office chairs, desks — Soft rubber, nylon wheels
- Retail (Up to 300 lbs): Display racks, shopping carts — Non-marking, polyurethane wheels
- Food Service (Up to 1250 lbs, NSF certified): Food carts, kitchen equipment — Stainless steel, high-temp wheels
- Industrial (Up to 350 lbs): Moving dollies, stocking carts — Hard rubber, nylon wheels
- Hospitality (Up to 300 lbs): Banquet tables, laundry carts — Chrome, rubber wheels
- Warehouses (Up to 1500 lbs): Shelving, carts — Polyurethane, steel wheels
- Manufacturing (Up to 350 lbs): Assembly lines, material handling — Phenolic, rubber wheels
FAQ
Stem Caster Model K3 FAQ
What is the Stem Caster Model K3?
The StemCaster Model K3, also known as a stud caster due to its metal stem design, is a durable institutional stem caster designed for reliability. Made with stamped steel and a bright zinc-plated finish for corrosion resistance, this light duty industrial caster supports up to 350 pounds per caster. It is NSF listed, making it ideal for institutional equipment in environments like food service and healthcare.
What is the Stem Caster Model K3 made of?
The StemCaster Model K3 features a stamped steel construction for durability, ensuring it can handle frequent use in demanding settings. Its external metal parts are bright zinc-plated to resist corrosion.
What are the mounting specifications for the Stem Caster Model K3?
Mounting plate: 2-3/8” x 3-5/8”; Slotted hole pattern: 1-3/4” x 2-7/8” to 3”; Bolt size: 5/16”.

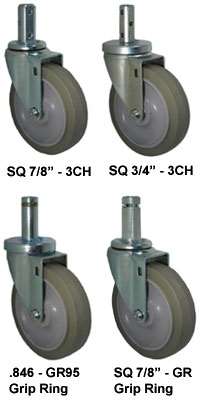

What stem options are available?
- Square Stems: SQ3/4 (3 x 1/4 CRX DRL), SQ7/8 (3 x 1/4 CRX DRL), SQ7/8-GR (5/16 CRX DRL)
- Grip Ring Stems: GR91 (7/16, 1-3/8″ length), GR95 (7/16, 2-3/16″ length)
What are the structural features?
3/8” axle, 1/2” rivet, double ball bearings, and a metal dust cap protecting the swivel raceways.
What is the weight capacity?
350 pounds per caster, regardless of brake type.
What wheel sizes are available?
3”, 3.5”, 4”, and 5”.
What tread widths are available?
1.25” or 1.5”, depending on wheel configuration.
What types of wheels are available?
- Gray Soft Rubber
- Super Soft Gray Rubber
- High Capacity Blue Rubber
- High Capacity Rubber
- Maroon/Gray Premium Polyurethane
- Gray Polyurethane
- Ultra Premium Orange Polyurethane
- Polyolefin – Black
- Nylon (White)
- High Temp Glass Filled Nylon
What are the brake options?
- TB: Top lock metal pedal, high-temp capable
- PTB: Plastic pedal, easier to engage/disengage
- TL: Total locking brake (wheel + bracket)
What are the benefits of its design?
Double ball raceways ensure smooth swivel motion and even load distribution; dust cap increases longevity; zinc finish resists corrosion.
Is it certified?
Yes, it’s NSF listed for sanitation compliance in institutional settings.
Why is it considered a new model?
It’s an updated version of Model 3 with improved stem options and performance features, despite legacy part numbers.
How does it compare to other casters?
Offers improved strength, versatility, and safety compared to other stem swivel casters due to its structural and material design.
Key Features Summary
- Construction: Stamped steel, zinc-plated
- Capacity: 350 lbs per caster
- Stem Options: Square and grip ring
- Brake Options: TB, PTB, TL
- Wheel Sizes: 3”–5”
- Tread Widths: 1.25”–1.5”
- Mounting: 2-3/8” x 3-5/8”, slotted pattern
- Structure: 3/8” axle, 1/2” rivet, dust cap
- Certifications: NSF listed
