4″ Blue All Polyurethane Wheel – Model 9 Swivel Caster

Description

DO NOT ORDER SWIVEL LOCK OR RACEWAY SEALS IF YOU ORDER THE TL – TOTAL LOCK BRAKE. THE TL BRAKE WILL NOT WORK WITH EITHER THE SWIVEL LOCK OR RACEWAY SEALS.

Plate Caster Model 9 swivel casters are our most popular industrial caster because of its low initial cost and wide selection of wheels.  Under the mounting plate it has 2 rows of balls rotating on heat treated raceways.  The swivel has a nut and bolt center pin welded to withstand normal abuse in a manually moved application.  The kingpin bolt diameter is 5/8” and the leg thickness is 1/4”, welded on the inside and out.  The diameter of the axle is ½” and is designed to use wheels with a hub width of 2 7/16”.  This caster is constructed from stamped steel.  The metal frames are zinc plated for rust resistance, and it has lubrication fittings for all moveable parts.  Model 9 has a broad selection of wheel brakes and swivel locks for most applications.  Other mounting plate sizes and wheel bearing types are available on request.

This blue, solid all polyurethane industrial caster wheel was developed for sanitary and washdown applications, and is capable of rolling indoors or outdoors.  The blue all polyurethane (“AP”) caster wheel is manufactured in 1-¼” and 2” wide; with diameters ranging from 3”-5” and 4”-8”.  Caster City manufactures this (“AP”) blue all polyurethane wheel to come with a roller bearing, delrin bearings, or a sealed precision ball bearing and all bearing options are available in stainless steel as well.  The temperature range of this industrial caster wheel is -50°to 180° F and the durometer of the polyurethane is Shore 60D.

These wheels are non marking and non conductive. The absence of a metal center eliminates bond failure as a cause for wheel replacement. These caster wheels are especially suited for use with stainless steel casters in wet and corrosive applications. They are designed for use in Pharmaceutical Laboratories, Hospitals, and Food Processing Plants – wherever a clean sanitary design is desired. These wheels are not recommended for applications involving shock, overloading, abuse, obstructions, poor floors, or for storage (standing) loads. Hardness is 60 – 65 Durometer Shore D. Temperature range is -20° to 180° F.

These wheels are designed for use in a wet environment and they eliminate the possibility of tire separation.

If your application calls for more than 500lbs per caster wheel and you desire the characteristics of an all polyurethane wheel, consider the gray all polyurethane (“HU”) caster wheel.

This caster is available in Stainless Steel Model 9.  It is constructed from 304 SS.  This is an excellent caster for wet or corrosive applications if your total weight exceeds 1000lbs.  It comes with the same large selection of wheels, some of which are also NSF and ROHS compliant.

*This Plate Caster Model 9 contains a All Polyurethane Swivel Wheel.

The Photo Displayed on CasterCity.com is the 5” Caster Wheel.

For more information and help placing an order, give us a call at 800-501-3808

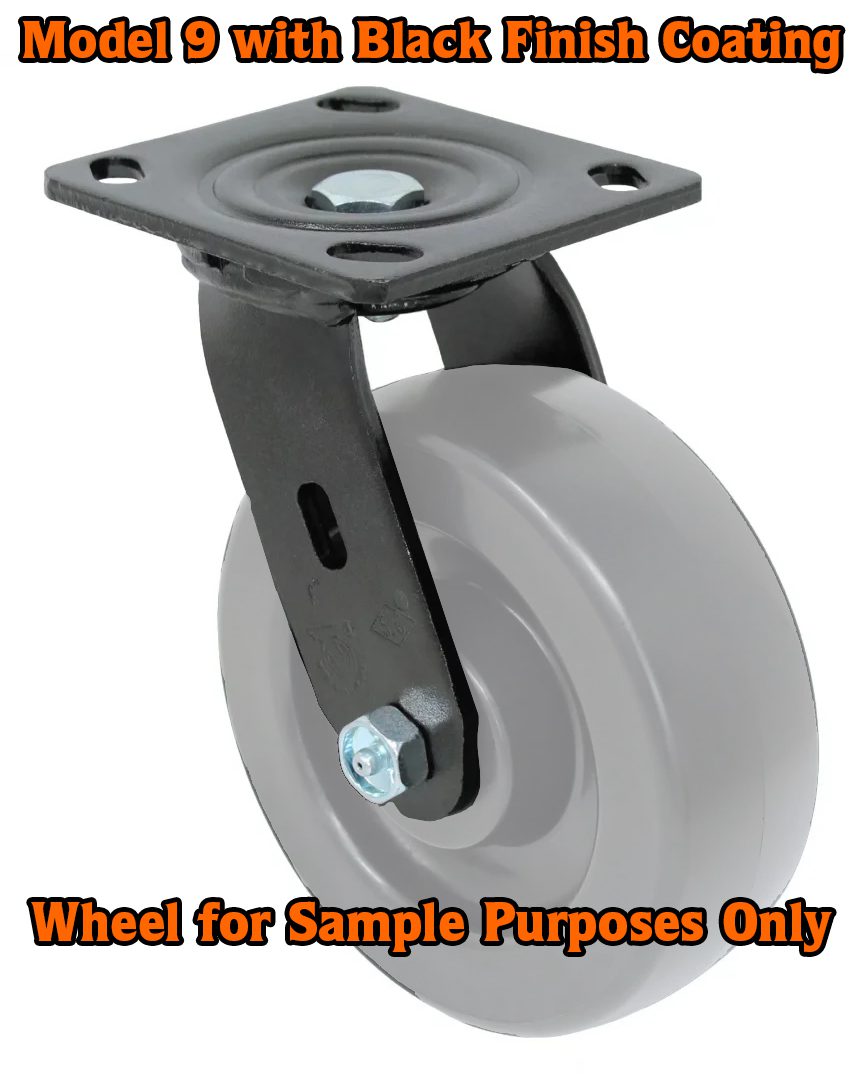

Sample of the Plate Caster Model 9:
