316 Stainless Steel Industrial Casters Model 3. Capacity up to 300 pounds per caster. 316 stainless steel casters excel in highly corrosive environments such as marine applications, chemical processing plants, pharmaceutical manufacturing, food processing facilities (especially those using caustic cleaners or salt), water treatment facilities, and any setting where exposure to chlorides, acids, or harsh cleaning agents is routine.
Caster City manufactures this 316 stainless steel caster for washdowns and as-such it has no dust cap covering the swivel bearing. Utilizing a 1.25″ wide wheel design that provides optimal load distribution while maintaining maneuverability in tight spaces.
Desktop: When you put your mouse over the words in the wheel description column you see a picture of the wheel. Click on the part number in the Swivel and Rigid columns to see the complete caster.
Mobile: Hold down your finger on the chart and scroll to the right to click on the part number you would like to order.
CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | STD BRG TYPE | MAX CAP. EACH CASTER LBS. | SWIVEL CASTER Part Number | RIGID CASTER Part Number | APPROX SWIVEL WEIGHT (LBS) | APPROX SWIVEL RADIUS | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|---|---|
3″ | 1 1/4″ | Gray Soft Rubber![]() |
PS | 200 | SS316-3RF3X1.25-S | Coming Soon | 1.5 | 2 7/8″ | 4 3/16″ |
3″ | 1 1/4″ | Solid Polyurethane![]() |
SSSB, D | 300 | SS316-3AP3X1.25-S | SS316-3AP3X1.25-R | 1.5 | 2 7/8″ | 4 3/16″ |

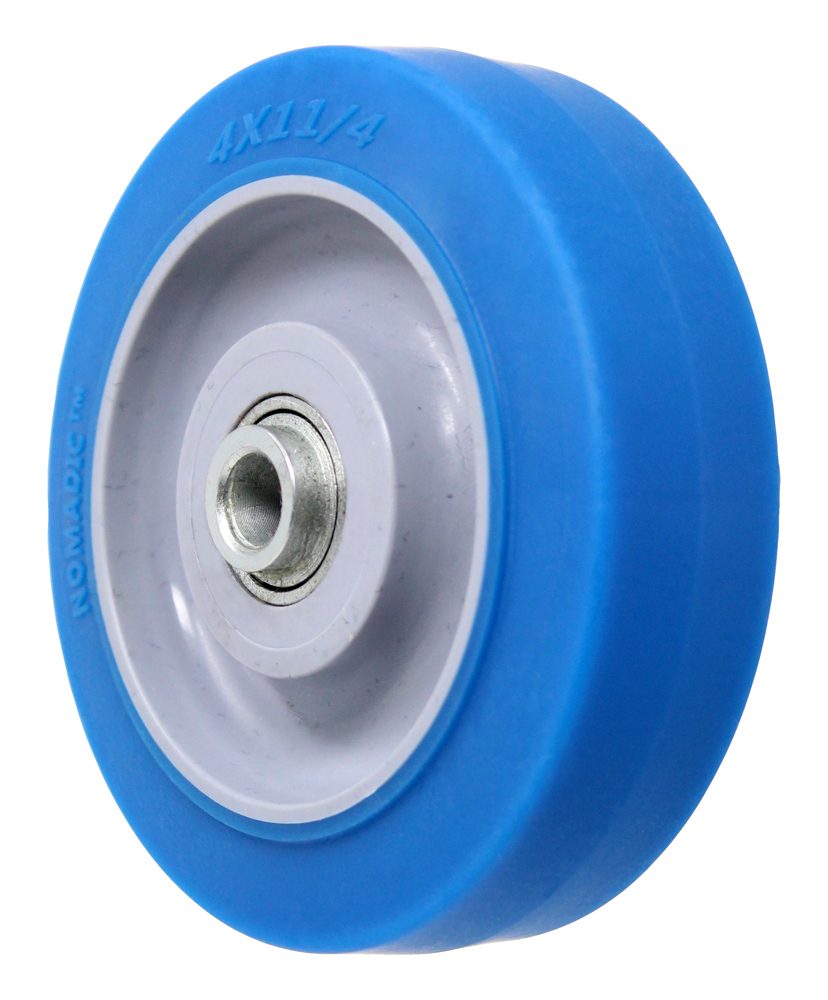

3″ | 1 1/4″ | High Capacity Soft Blue Rubber![]() |
D | 250 | SS316-3RHB3X1.25-S | Coming Soon | 1.5 | 2 7/8″ | 4 3/16″ |

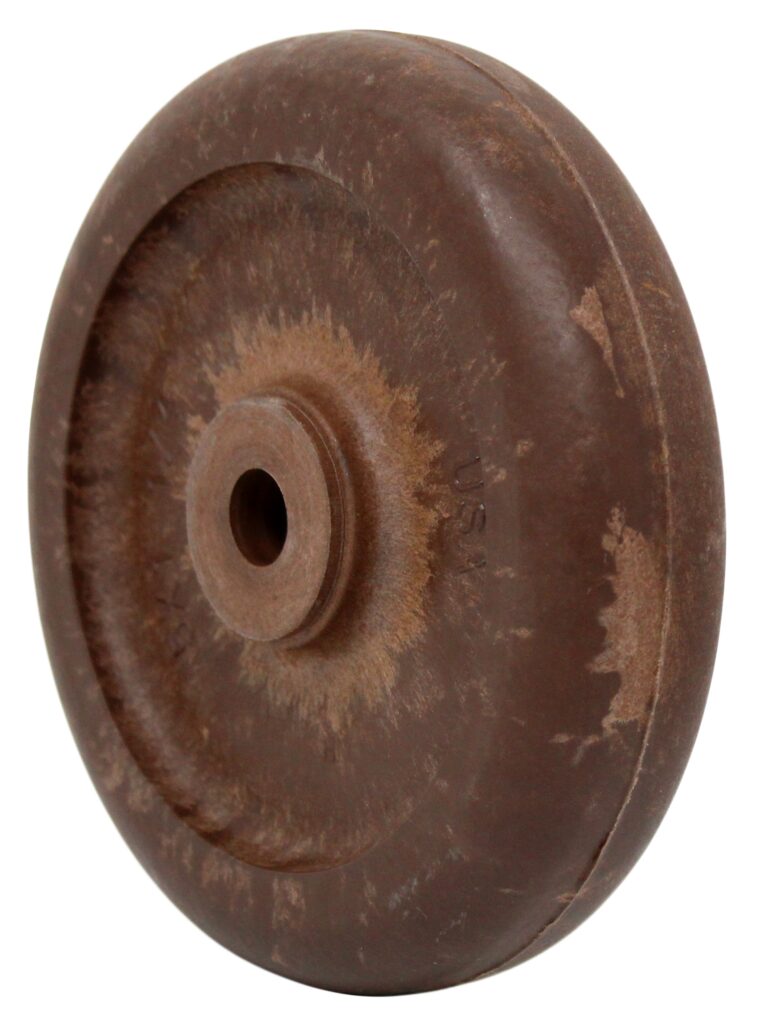

3″ | 1 1/4″ | High Temperature Phenolic![]() |
SSSB | 200 | SS316-3TP3X1.25-S | Coming Soon | 1.5 | 2 7/8″ | 4 3/16″ |

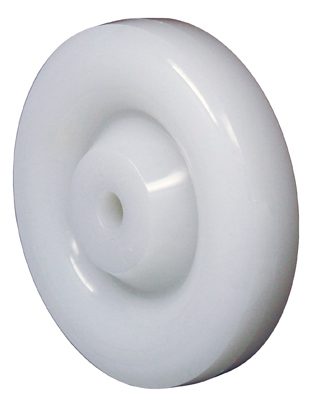

3″ | 1 1/4″ | Nylon![]() |
D, SSSB | 300 | SS316-3NY3X1.25-S | Coming Soon | 1.5 | 2 7/8″ | 4 3/16″ |
3″ | 1 1/4″ | High Temperature Glass Filled Nylon![]() |
SSSB | 200 | SS316-3NP3X1.25-S | Coming Soon | 1.5 | 2 7/8″ | 4 3/16″ |
3″ | 1 1/4″ | Maroon Premium Polyurethane![]() |
D | 300 | SS316-3PM3X1.25-S | Coming Soon | 1.5 | 2 7/8″ | 4 3/16″ |

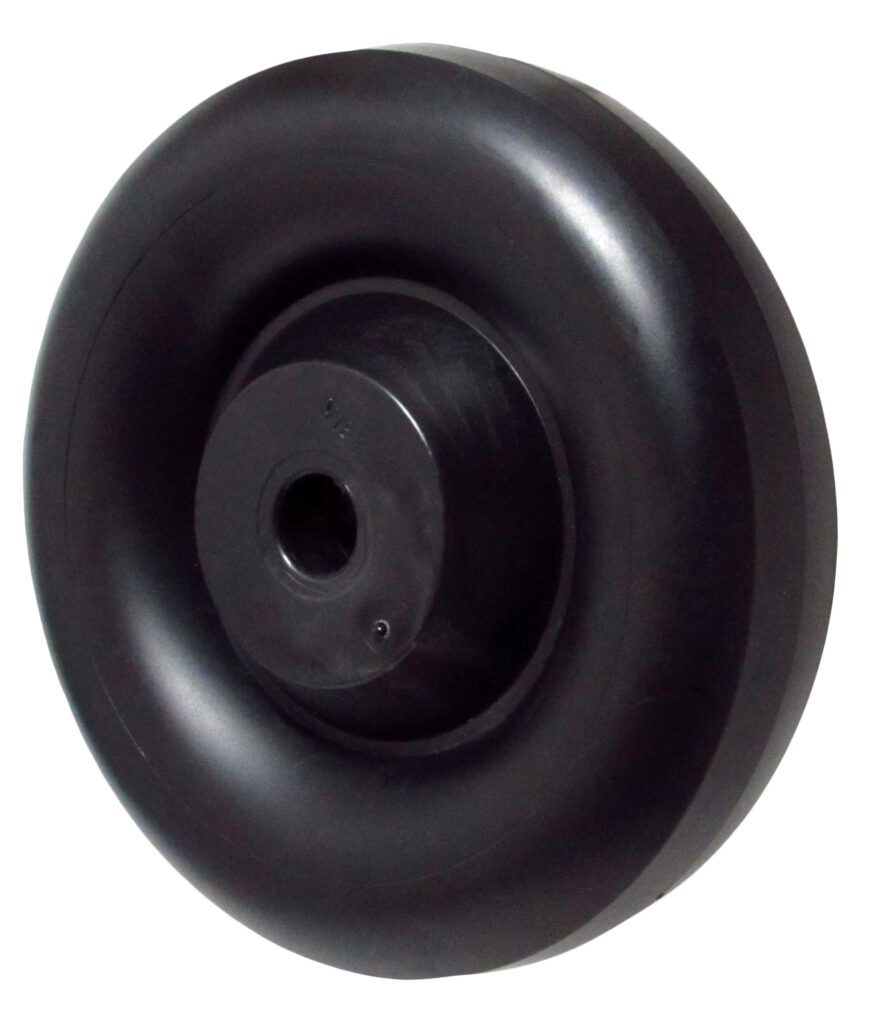

3″ | 1 1/4″ | Polyolefin – Black![]() |
D, SSSB | 250 | SS316-3PB3X1.25P-S | Coming Soon | 1.5 | 2 7/8″ | 4 3/16″ |

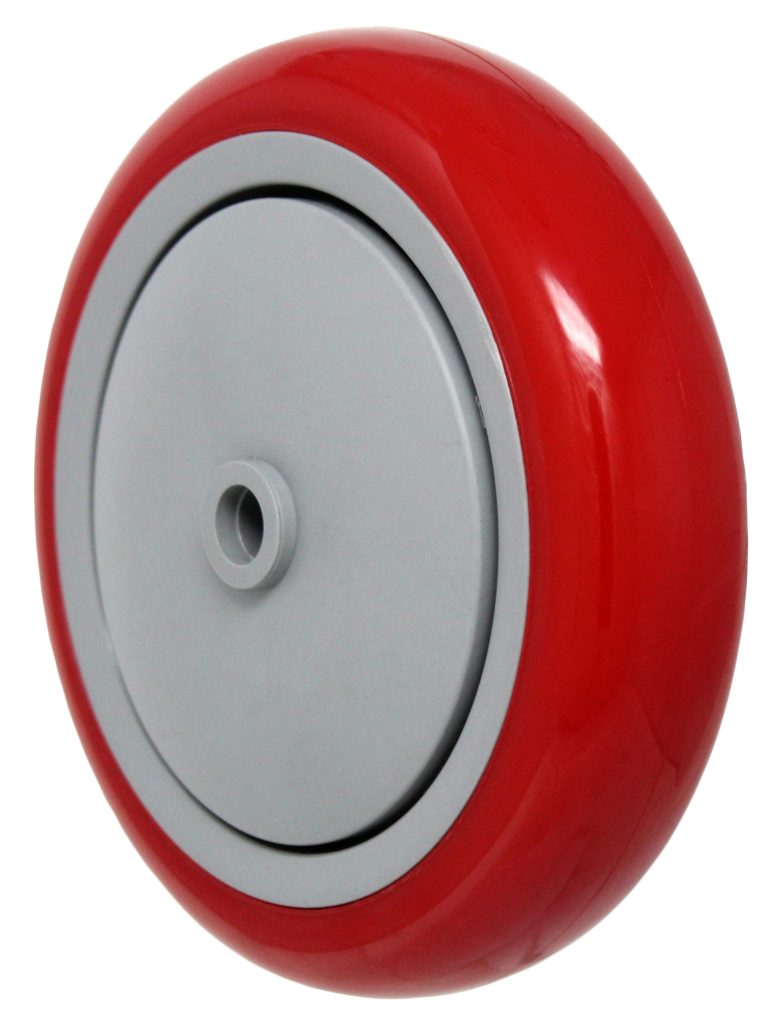

3″ | 1 1/4″ | Red Polyurethane on Polyolefin![]() |
PS | 200 | SS316-3RG3X1.25-S | Coming Soon | 1.5 | 2 7/8″ | 4 3/16″ |

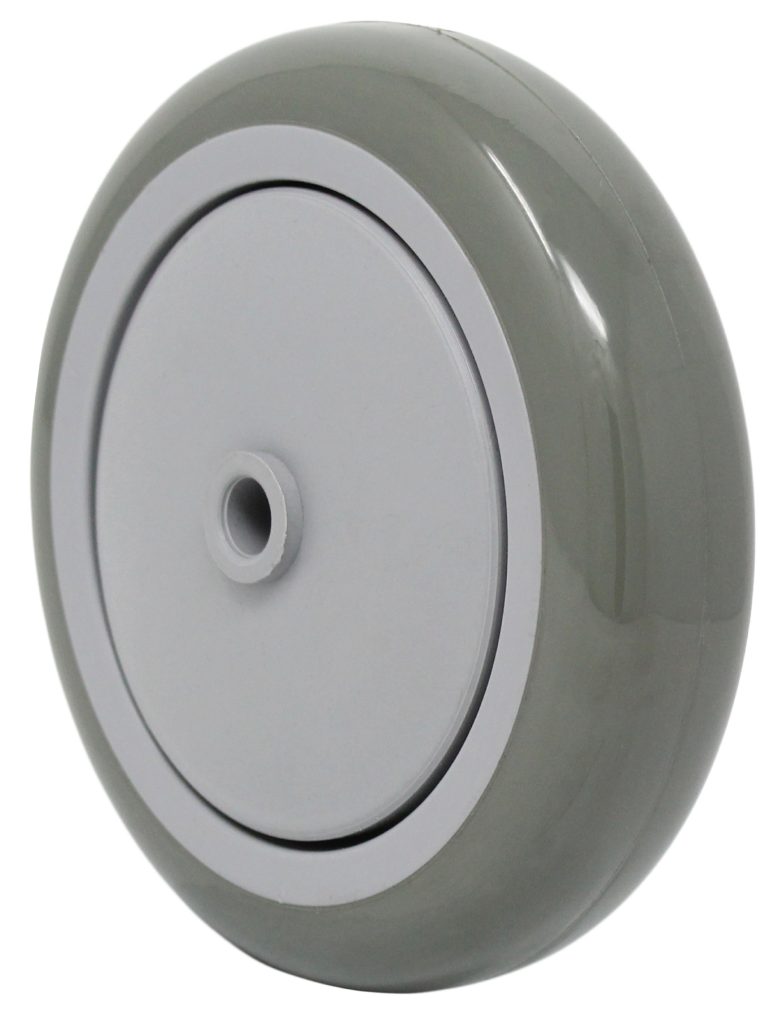

3″ | 1 1/4″ | Gray Polyurethane on Polyolefin![]() |
PS | 200 | SS316-3GP3X1.25-S | Coming Soon | 1.5 | 2 7/8″ | 4 3/16″ |

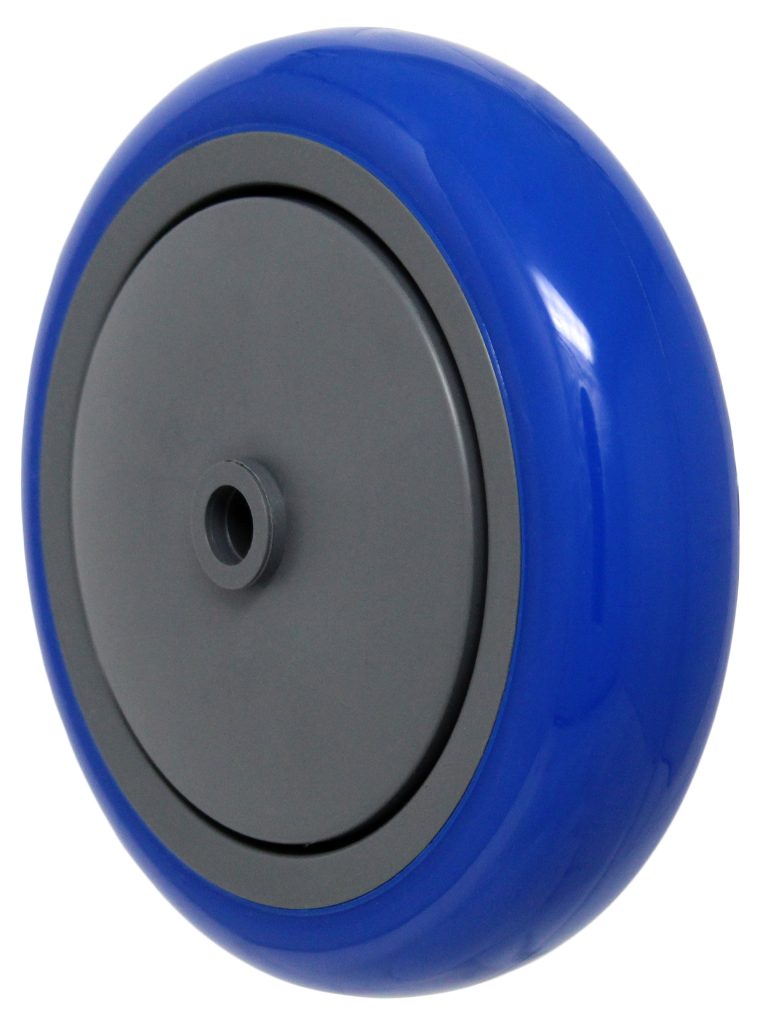

3″ | 1 1/4″ | Blue Polyurethane on Polyolefin![]() |
PS | 200 | SS316-3BP3X1.25-S | Coming Soon | 1.5 | 2 7/8″ | 4 3/16″ |

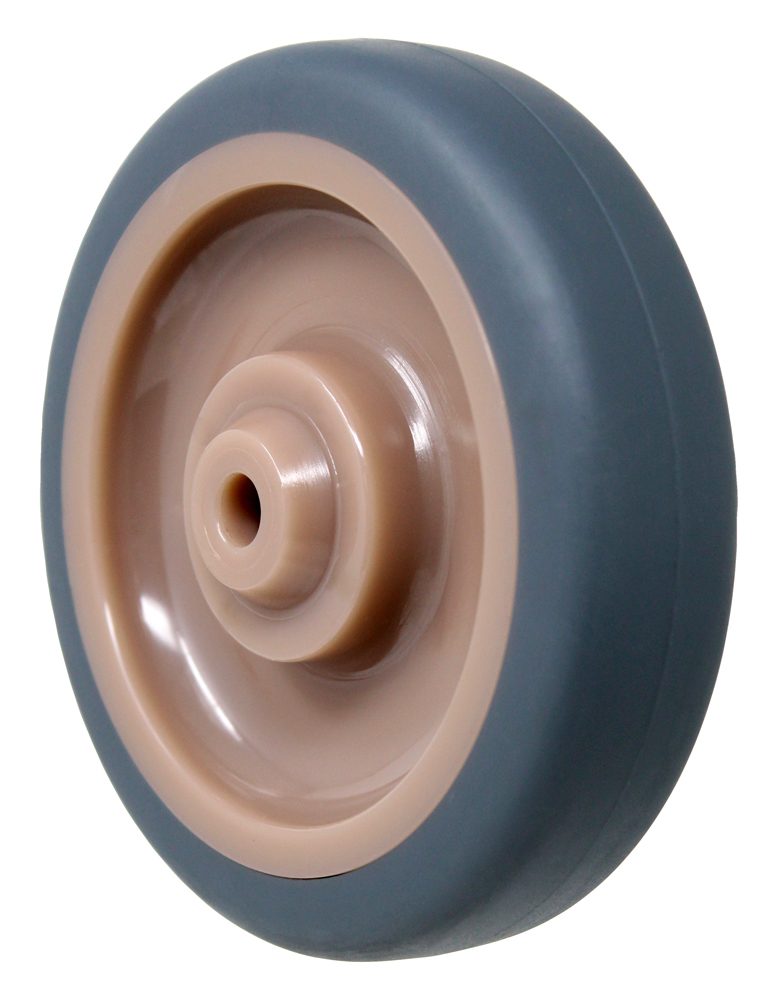

3″ | 1 1/4″ | Autoclave Rubber Wheel![]() |
PB – 3/8″ Axle Hole | 200 | SS316-3UT3X1.25P-S | Coming Soon | 1.5 | 2 7/8″ | 4 3/16″ |

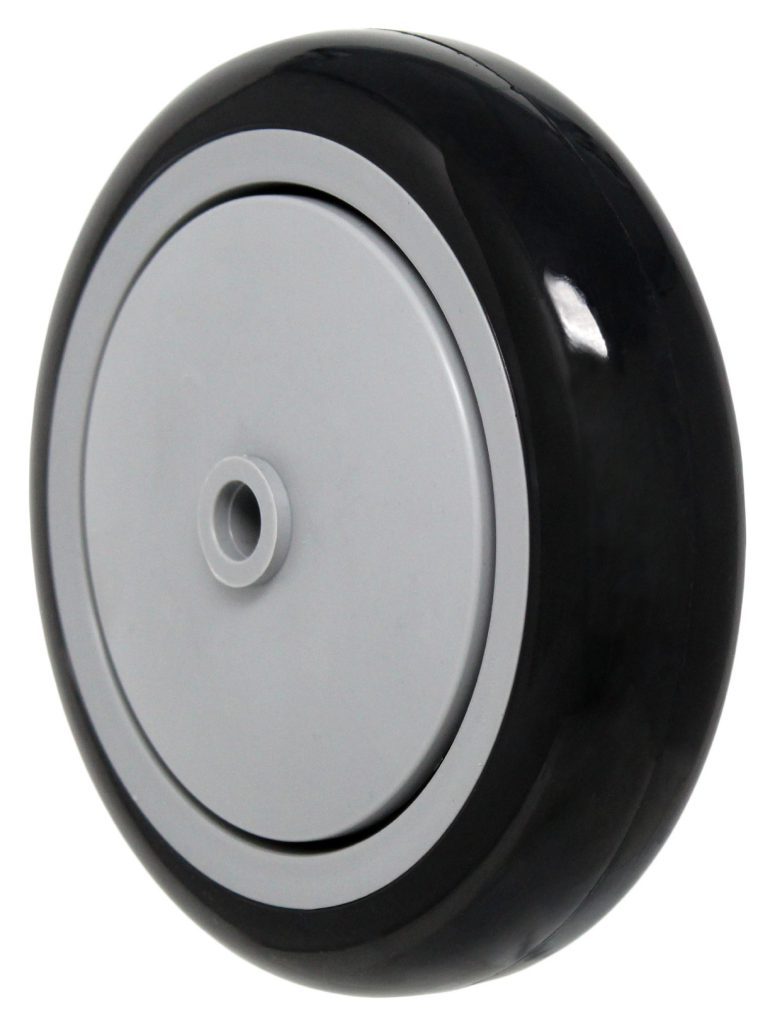

3″ | 1 1/3″ | Black Polyurethane on Polyolefin![]() |
PS | 200 | SS316-3BK3X1.25-S | SS316-3BK3X1.25-R | 1.5 | 2 7/8″ | 4 3/16″ |
CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | STD BRG TYPE | MAX CAP. EACH CASTER LBS. | SWIVEL CASTER Part Number | RIGID CASTER Part Number | APPROX SWIVEL WEIGHT (LBS) | APPROX SWIVEL RADIUS | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|---|---|
4″ | 1 1/4″ | Gray Soft Rubber![]() |
PS | 225 | SS316-3RF4X1.25-S | Coming Soon | 1.9 | 3 3/8″ | 5 1/4″ |
4″ | 1 1/4″ | Solid Polyurethane![]() |
SSSB, D | 300 | SS316-3AP4X1.25-S | SS316-3AP4X1.25-R | 1.5 | 3 1/2″ | 5 1/4″ |
4″ | 1 1/4″ | High Capacity Soft Blue Rubber![]() |
D | 300 | SS316-3RHB4X1.25-S | Coming Soon | 1.8 | 3 1/2″ | 5 1/8″ |
4″ | 1 1/4″ | High Temperature Phenolic![]() |
SSSB | 250 | SS316-3TP4X1.25-S | Coming Soon | 1.8 | 3 1/2″ | 5 1/8″ |
4″ | 1 1/4″ | Nylon![]() |
D, SSSB | 300 | SS316-3NY4X1.25-S | Coming Soon | 1.5 | 3 1/2″ | 5 1/8″ |
4″ | 1 1/4″ | High Temperature Glass Filled Nylon![]() |
SSSB | 250 | SS316-3NP4X1.25-S | Coming Soon | 1.8 | 3 1/2″ | 5 1/8″ |
4″ | 1 1/4″ | Maroon Premium Polyurethane![]() |
D | 300 | SS316-3PM4X1.25-S | Coming Soon | 1.8 | 3 1/2″ | 5 1/8″ |
4″ | 1 1/4″ | Polyolefin – Black![]() |
D, SSSB | 300 | SS316-3PB4X1.25-S | Coming Soon | 1.5 | 3 1/2″ | 5 1/8″ |
4″ | 1 1/4″ | Red Polyurethane on Polyolefin![]() |
PS | 200 | SS316-3RG4X1.25-S | Coming Soon | 1.9 | 3 3/8″ | 5 1/4″ |
4″ | 1 1/4″ | Gray Polyurethane on Polyolefin![]() |
PS | 225 | SS316-3GP4X1.25-S | Coming Soon | 1.9 | 3 3/8″ | 5 1/4″ |
4″ | 1 1/4″ | Blue Polyurethane on Polyolefin![]() |
PS | 225 | SS316-3BP4X1.25-S | Coming Soon | 1.9 | 3 3/8″ | 5 1/4″ |
4″ | 1 1/4″ | Autoclave Rubber Wheel![]() |
PB – 3/8″ Axle Hole | 225 | SS316-3UT4X1.25P-S | Coming Soon | 1.5 | 3 1/2″ | 5 1/8″ |
4″ | 1 1/3″ | Black Polyurethane on Polyolefin![]() |
PS | 200 | SS316-3BK4X1.25-S | SS316-3BK4X1.25-R | 1.9 | 3 3/8″ | 5 1/4″ |
4″ | 1 1/4″ | Welded Disc Polyurethane![]() |
SSPSBB | 250 | SS316-3US4X1.25-S | Coming Soon | 1.9 | 3 3/8″ | 5 1/4″ |
CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | STD BRG TYPE | MAX CAP. EACH CASTER LBS. | SWIVEL CASTER Part Number | RIGID CASTER Part Number | APPROX SWIVEL WEIGHT (LBS) | APPROX SWIVEL RADIUS | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|---|---|
5″ | 1 1/4″ | Gray Soft Rubber![]() |
PS | 250 | SS316-3RF5X1.25-S | Coming Soon | 2.2 | 3 7/8″ | 6 3/16″ |
5″ | 1 1/4″ | Solid Polyurethane![]() |
SSSB, D | 300 | SS316-3AP5X1.25-S | SS316-3AP5X1.25-R | 1.5 | 3 7/8″ | 6 3/16″ |
5″ | 1 1/4″ | High Capacity Soft Blue Rubber![]() |
D | 300 | SS316-3RHB5X1.25-S | Coming Soon | 2.1 | 4″ | 6 1/4″ |
5″ | 1 1/4″ | High Temperature Phenolic![]() |
SSSB | 300 | SS316-3TP5X1.25-S | Coming Soon | 2.1 | 4″ | 6 1/4″ |
5″ | 1 1/4″ | Nylon![]() |
D, SSSB | 300 | SS316-3NY5X1.25-S | Coming Soon | 2.1 | 4″ | 6 1/4″ |
5″ | 1 1/4″ | High Temperature Glass Filled Nylon![]() |
SSSB | 300 | SS316-3NP5X1.25-S | Coming Soon | 2.1 | 4″ | 6 1/4″ |
5″ | 1 1/4″ | Maroon Premium Polyurethane![]() |
D | 300 | SS316-3PM5X1.25-S | Coming Soon | 1.8 | 4″ | 6 1/4″ |
5″ | 1 1/4″ | Polyolefin – Black![]() |
D, SSSB | 300 | SS316-3PB5X1.25-S | Coming Soon | 2.1 | 4″ | 6 1/4″ |
5″ | 1 1/4″ | Red Polyurethane on Polyolefin![]() |
PS | 250 | SS316-3RG5X1.25-S | Coming Soon | 2.2 | 3 7/8″ | 6 3/16″ |
5″ | 1 1/4″ | Gray Polyurethane on Polyolefin![]() |
PS | 250 | SS316-3GP5X1.25-S | Coming Soon | 2.2 | 3 7/8″ | 6 3/16″ |
5″ | 1 1/4″ | Blue Polyurethane on Polyolefin![]() |
PS | 250 | SS316-3BP5X1.25-S | Coming Soon | 2.2 | 3 7/8″ | 6 3/16″ |
5″ | 1 1/4″ | Autoclave Rubber Wheel![]() |
D, SSSB | 300 | SS316-3UT5X1.25P-S | Coming Soon | 2.1 | 4″ | 6 1/4″ |

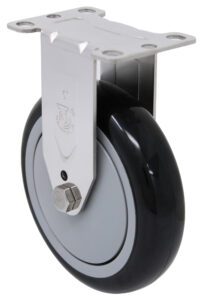

5″ | 1 1/4″ | Black Polyurethane on Polyolefin![]() |
PS | 250 | SS316-3BK5X1.25-S | SS316-3BK5X1.25-R | 1.9 | 3 7/8″ | 6 3/16″ |

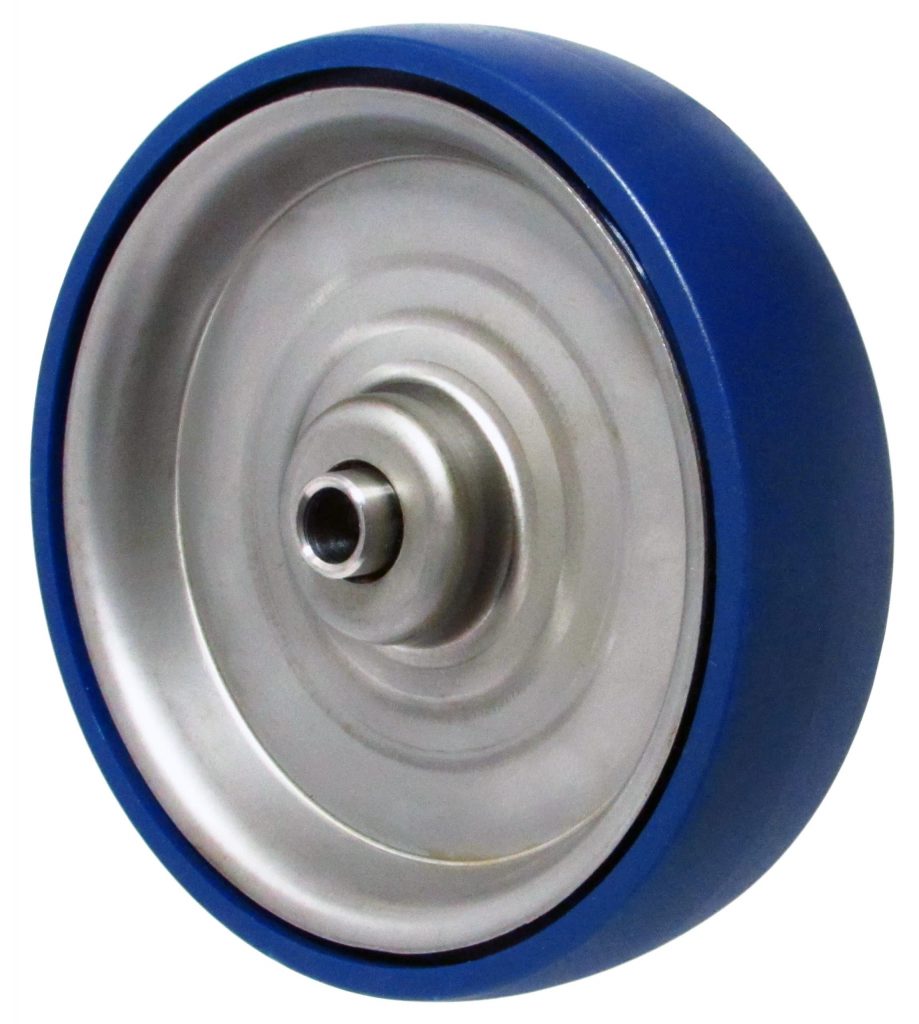

5″ | 1 1/4″ | Welded Disc Polyurethane![]() |
SSPSBB | 300 | SS316-3US5X1.25-S | Coming Soon | 2.2 | 3 7/8″ | 6 3/16″ |
Welded Disc Polyurethane Wheel Only Available in 4″ and 5″
In industrial and engineering applications, the choice between 316 and 304 stainless steel is driven by environmental exposure and corrosion resistance requirements. 316 stainless steel, enhanced with molybdenum (2-3%) and a higher nickel content, provides superior resistance to chlorides and harsh chemicals compared to 304 stainless. This makes it essential for marine environments, chemical processing facilities, and applications involving aggressive cleaning agents or high salt concentrations.
The addition of molybdenum in 316 stainless significantly improves resistance to pitting and crevice corrosion, particularly critical in environments where chloride exposure is constant. This grade is widely specified in marine installations, chemical plants, food processing facilities, and pharmaceutical manufacturing where regular exposure to caustic cleaning agents and process chemicals would compromise 304 stainless steel’s integrity.
While 316 stainless steel commands a higher price point than 304, its enhanced corrosion resistance makes it the optimal choice for applications where equipment failure due to corrosion cannot be tolerated.
