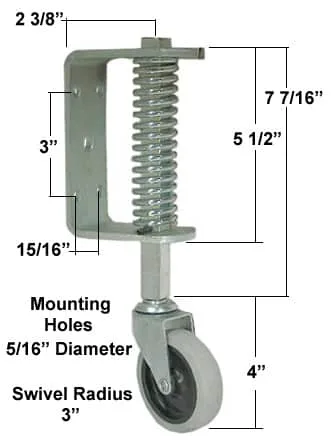

The bottom of the mounting bracket must be flush with the bottom of the door.” Notice: The swivel radius is 3″. The distance from where the bracket gets attached to the door to the center of the stem is only 2-3/8″. The swivel can NOT rotate 360 degrees. The wheel will come in contact with the door. The mounting bracket must be flush with the bottom of the door in order for the wheel NOT to hit the door.
Ideal for use on Light Weight Doors.
3″ Non-Marking Gray Rubber Wheel.
125 lb. capacity per caster.
100 lb. compression spring.
Spring offsets for uneven floors.
Caster frame is zinc plated for rust resistance.
Vertical mounting plate size is 2″ x 5 1/2″ with 4 holes spaced 15/16″ x 3″ on center for 5/16″ mounting hardware.
Ideal for use on Ladders and Light Weight Doors.
25 lb. compression spring.
Spring offsets for uneven floors.
Caster frame is zinc plated for rust resistance.
Vertical mounting plate size is 3 11/16″ x 1″ with holes for 5/16″ mounting hardware.
Showing all 3 resultsSorted by popularity
