Polyurethane on Aluminum Caster Wheels

You should never select on the basis of load capacity alone. Capacity ratings do not take into account the effort required to manually move a load. Capacity ratings are based on manual operation under ideal conditions. If these wheels are going to be moved by mechanically powered equipment, consult us for a reduced capacity rating based on your application.

These caster wheels are liquid cast polyurethane on aluminum centers. They are used in almost every type of application, but are especially popular in Research Laboratories, Hospitals, Food Service, Schools, Bakeries and other Institutional applications.

They have non-marking polyurethane tires which are easier rolling than Gray Rubber wheels on smooth floors. They withstand exposure to many chemicals and solvents and can be used in industrial applications which do not involve shock, overloading, abuse, obstructions, poor floors or storage ( standing ) loads.

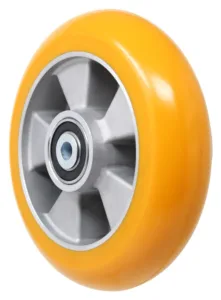

The Extra Thick, softer durometer, CP and UXY Polyurethane on Aluminum wheels both provide more cushion than thinner polyurethane wheels. Extra Thick CP and UXY tires help to protect cargo, minimize vibration, and roll more easily over small obstructions such as uneven expansion joints. These wheels have extra large precision sealed ball bearings. The CP wheels are more resistant to bond failure caused by metal shavings.

Please call us for a recommendation if any of these wheels are to be used with mechanically powered equipment.

img Polyurethane tires are chemically bonded to a light-weight aluminum center.
img 1 1/4″ wide wheels have Ball Bearings.
img 2″ wide wheels have Precision Sealed Ball Bearings.
img Wheels with prefix PA: 95 A
img Wheels with prefix UDC – Durometer: 65 D
img Wheels with prefix UXY – Durometer: 80-85 A
img Wheels with prefix UAO – Durometer: 90 A
img Wheels with prefix UAC – Durometer: 95 A
img Temperature range: -20° F to 180° F.

Caster Chart

WHEEL DLAM.TREAD WIDTHHub LengthCapacity Lbs.Wheel ONLY Part NumberBearing I.D. / TypeApprox. Wt.
3″1 1/4″1 9/16″300PA3X1.25B3/8″ Ball Bearing1/2
3″1 1/4″1 9/16″400UXY3x1.25PS3/8″ Precision Sealed1/2

WHEEL DLAM.TREAD WIDTHHub LengthCapacity Lbs.Wheel ONLY Part NumberBearing I.D. / TypeApprox. Wt.
3 1/2″1 1/4″1 9/16″325PA35X1.25B3/8″ Ball Bearing1/2

WHEEL DLAM.TREAD WIDTHHub LengthCapacity Lbs.Wheel ONLY Part NumberBearing I.D. / TypeApprox. Wt.
4″1 1/4″1 9/16″350PA4X1.25B3/8″ Ball Bearing1/2
4″1 1/4″1 9/16″450UXY4x1.25PS3/8″ Precision Sealed1/2
4″2″2 7/16″600UXY4X2PS1/2″ Precision Sealed2
4″2″2 7/16″700UAO4X2PS1/2″ Precision Sealed2
4″2″2 7/16″900UAO4X2SPS1/2″ Stainless Steel Precision Sealed Ball Bearing2 1/2

WHEEL DLAM.TREAD WIDTHHub LengthCapacity Lbs.Wheel ONLY Part NumberBearing I.D. / TypeApprox. Wt.
5″1 1/4″1 9/16″400PA5X1.25B3/8″ Ball Bearing1
5″1 1/4″1 9/16″400PA5X1.25B3/8″ Ball Bearing1
5″2″2 7/16″700UXY5X2PS1/2″ Precision Sealed2 1/2
5″2″2 7/16″800UAO5X2PS1/2″ Precision Sealed2 1/2
5″2″2 7/16″900UXY5X2SPS1/2″ Stainless Steel Precision Sealed Ball Bearing2 1/2
5″2″2 7/16″900 UAO5X2SPS 1/2″ Stainless Steel Precision Sealed Ball Bearing2 1/2

WHEEL DLAM.TREAD WIDTHHub LengthCapacity Lbs.Wheel ONLY Part NumberBearing I.D. / TypeApprox. Wt.
6″2″2 7/16″1000UXY6X2PS1/2″ Precision Sealed3
6″2″2 7/16″1000UAC6X2PS1/2″ Precision Sealed3
6″2″2 7/16″1000UAO6X2PS1/2″ Precision Sealed3
6″2″2 7/16″1000UDC6X2PS1/2″ Precision Sealed3
6″2″2 7/16″1200CP6X2PS1/2″ Precision Sealed4
6″2″2 7/16″1200CPR6X2PS1/2″ Precision Sealed4
6″2″2 7/16″1000 UXY6X2SPS 1/2″ Stainless Steel Precision Sealed Ball Bearing3
6″2″2 7/16″1000 UAO6X2SPS 1/2″ Stainless Steel Precision Sealed Ball Bearing3

WHEEL DLAM.TREAD WIDTHHub LengthCapacity Lbs.Wheel ONLY Part NumberBearing I.D. / TypeApprox. Wt.
8″2″2 7/16″1200UXY8X2PS1/2″ Precision Sealed4
8″2″2 7/16″1200UAC8X2PS1/2″ Precision Sealed4
8″2″2 7/16″1200UAO8X2PS1/2″ Precision Sealed4
8″2″2 7/16″1200UDC8X2PS1/2″ Precision Sealed4
8″2″2 7/16″1500CP8X2PS1/2″ Precision Sealed5
8″2″2 7/16″1500CPR8X2PS1/2″ Precision Sealed5
8″2″2 7/16″1200UXY8X2SPS1/2″ Stainless Steel Precision Sealed Ball Bearing4
8″2″2 7/16″1200 UAO8X2SPS 1/2″ Stainless Steel Precision Sealed Ball Bearing4

Order Direct

Need Help with your order?
(800) 501-3808

You should never select on the basis of load capacity alone. There is no industry standard for load capacity ratings and they may not include a factor for abuse. Our capacity ratings are below what the casters are capable of carrying because most applications have less than perfect conditions. Please refer to the information shown at the bottom of this page. If you have any doubt as to which wheel or caster is the BEST choice for your application contact us for a recommendation.
