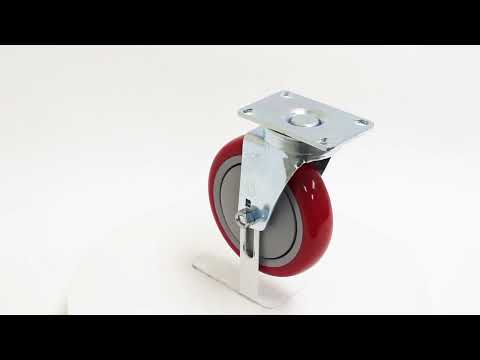

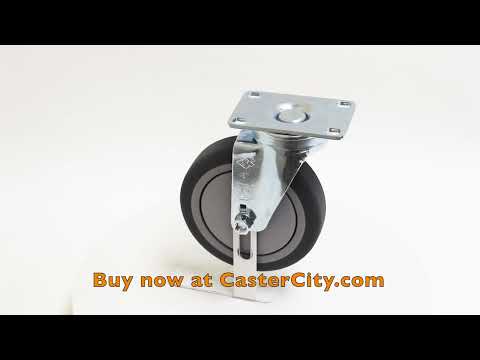

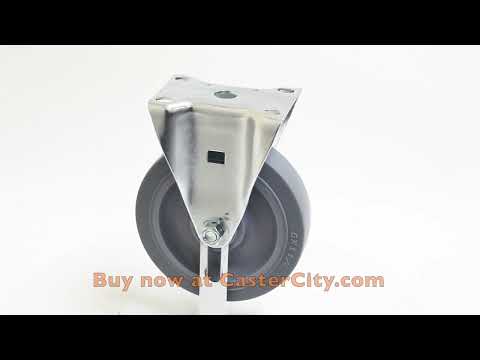

Plate Caster Model 3

Industrial Plate Caster

Top Plate Size: 2 3/8″ x 3 5/8″
Bolt Hole Spacing: 1 3/4″ x 3; Slotted to 1 3/4″ x 2 7/8″
Mounting Bolt Size: 5/16″

Click here for same caster with a LARGER Mounting Plate – Model K3

Click here for 316 Stainless Steel Industrial Plate Caster Model 3

Click Links Below for 2D Drawing of Caster Model 3:

Capacity up to 350 pounds per caster. These casters are ideal for most types of equipment and projects where the total weight is less than 1000 lbs. on a set of 4 casters. They are offered with a wide selection of wheels. Model 3 casters are popular with retail business and consumer applications.

Click here to get this caster with:

2″ Wide Wheels – Model 4A

Black Finish

Stainless Steel

Plate Caster Model 3 Chart
(Click the Part Number to Order)

Desktop: When you put your mouse over the words in the wheel description column you see a picture of the wheel. Click on the part number in the Swivel and Rigid columns to see the complete caster.

Mobile: Hold down your finger on the chart and scroll to the right to click on the part number you would like to order.

Filter through the Available Diameters to find the size you need.

CASTER WHEEL DIAM.	TREAD WIDTH	WHEEL TREAD MATERIAL Click below for Replacement Wheels	STD BRG TYPE	MAX CAP. EACH CASTER LBS.	SWIVEL CASTER Click P/N Below to Order	RIGID CASTER Click P/N Below to Orde	APPROX SWIVEL WEIGHT (LBS)	APPROX SWIVEL RADIUS	OVERALL HEIGHT
3″		FRAME ONLY FOR 3″ WHEELS	NA	NA	3YA3X1.25-S	3YA3X1.25-R	1	2 7/8″	NA
3″	1 1/4″	Gray Soft Rubber	PS	150	3RF3X1.25-S	3RF3X1.25-R	1 3/4″	2 7/8″	4 1/8″
3″	1 1/4″	Super Soft Gray Soft Rubber	B	105	3RS3X1.25-S	3RS3X1.25-R	1 3/4″	2 7/8″	4 1/8″
3″	1 1/4″	High Capacity Blue Rubber	B	250	3RHB3X1.25B-S	3RHB3X1.25B-R	1 3/4″	2 7/8″	4 1/8″
3″	1 1/4″	High Capacity Rubber	B	200	3RH3X1.25B-S	3RH3X1.25B-R	1 3/4″	2 7/8″	4 1/8″
3″	1 1/4″	Maroon/Gray Premium Polyurethane	B	250	3PM3X1.25-S	3PM3X1.25-R	1 3/4″	2 7/8″	4 1/8″
3″	1 1/4″	Gray Polyurethane	PS	200	3GP3X1.25-S	3GP3X1.25-R	1 3/4″	2 7/8″	4 1/8″
3″	1 1/4″	Black/Gray Polyurethane	PS	200	3BK3X1.25-S	3BK3X1.25-R	1 3/4″	2 7/8″	4 1/8″
3″	1 1/4″	Blue/Gray Polyurethane	PS	200	3BP3X1.25-S	3BP3X1.25-R	1 3/4″	2 7/8″	4 1/8″
3″	1 1/4″	Red/Gray Polyurethane	PS	200	3RG3X1.25-S	3RG3X1.25-R	1 3/4″	2 7/8″	4 1/8″
3″	1 1/4″	Gray Polyurethane ( Crown )	PS	200	3GPC3X1.25-S	3GPC3X1.25-R	1 3/4″	2 7/8″	4 1/8″
3″	1 1/4″	Ultra Premium Orange Polyurethane	PS	350	3UXY3x1.25-S	3UXY3x1.25-R	1 3/4″	2 7/8″	4 1/8″
3″	1 1/4″	All Polyurethane	P	200	3AP3X1.25-S	3AP3X1.25-R	1 3/4″	2 7/8″	4 1/8″
3″	1 1/4″	Blue Polyurethane on Aluminum	B	250	3PA3X1.25-S	3PA3X1.25-R	1 3/4″	2 7/8″	4 1/8″
3″	1 1/4″	Polyolefin – Black	P	250	3PB3X1.25-S	3PB3X1.25-R	1 3/4″	2 7/8″	4 1/8″
3″	1 1/4″	Polyolefin – Black Donut	B	250	3PB3X1.25B-S	3PB3X1.25B-R	1 3/4″	2 7/8″	4 1/8″
3″	1 1/4″	Nylon ( White )	B	300	3NY3X1.25B-S	3NY3X1.25B-R	1 3/4″	2 7/8″	4 1/8″
3″	1 1/4″	Phenolic	P	250	3TM3X1.25-S	3TM3X1.25-R	1 3/4″	2 7/8″	4 1/8″
3″	1 1/4″	Hard Rubber	B	200	3RN3X1.25-S	3RN3X1.25-R	1 3/4″	2 7/8″	4 1/8″
3″	1 1/4″	Gray Iron	P	250	3CL3X1.25-S	3CL3X1.25-R	1 3/4″	2 7/8″	4 1/8″
3″	1 1/4″	High Temp Phenolic – Fiberglass	P	250	3TP3X1.25-S	3TP3X1.25-R	1 3/4″	2 7/8″	4 1/8″

CASTER WHEEL DIAM.	TREAD WIDTH	WHEEL TREAD MATERIAL Click below for Replacement Wheels	STD BRG TYPE	MAX CAP. EACH CASTER LBS.	SWIVEL CASTER Click P/N Below to Order	RIGID CASTER Click P/N Below to Orde	APPROX SWIVEL WEIGHT (LBS)	APPROX SWIVEL RADIUS	OVERALL HEIGHT
4″		FRAME ONLY FOR 4″ WHEELS	NA	NA	3YA 4X1.25-S	3YA 4X1.25-R	1 1/4″	3 1/2″	NA
4″	1 3/8″	Blue Soft Rubber	RB	350	3RC4X1.375-S	3RC4X1.375-R	2	3 1/2″	5 1/8″
4″	1 1/4″	Gray Soft Rubber	PS	200	3RF4X1.25-S	3RF4X1.25-R	2	3 1/2″	5 1/8″
4″	1 1/4″	Super Soft Gray Soft Rubber	B	120	3RS4X1.25-S	3RS4X1.25-R	2	3 1/2″	5 1/8″
4″	1 1/4″	Gray Cushion Rubber	B	200	3RQ 4X1.25-S	3RQ4X1.25-R	2	3 1/2″	5 1/8″
4″	1 1/4″	High Capacity Blue Rubber	B	300	3RHB4X1.25B-S	3RHB4X1.25B-R	2	3 1/2″	5 1/8″
4″	1 1/4″	High Capacity Rubber	B	250	3RH4X1.25B-S	3RH4X1.25B-R	2	3 1/2″	5 1/8″
4″	1 1/4″	Maroon/Gray Premium Polyurethane	B	300	3PM4X1.25-S	3PM4X1.25-R	2	3 1/2″	5 1/8″
4″	1 1/4″	Gray Polyurethane	PS	250	3GP4X1.25-S	3GP4X1.25-R	2	3 1/2″	5 1/8″
4″	1 1/4″	Black/Gray Polyurethane	PS	250	3BK 4X1.25-S	3BK 4X1.25-R	2	3 1/2″	5 1/8″
4″	1 1/4″	Blue/Gray Polyurethane	PS	250	3BP4X1.25-S	3BP4X1.25-R	2	3 1/2″	5 1/8″
4″	1 1/4″	Red/Gray Polyurethane	PS	250	3RG4X1.25-S	3RG4X1.25-R	2	3 1/2″	5 1/8″
4″	1 1/4″	Gray Polyurethane ( Crown )	PS	250	3GPC4X1.25-S	3GPC4X1.25-R	2	3 1/2″	5 1/8″
4″	1 1/4″	Ultra Premium Orange Polyurethane	PS	350	3UXY4x1.25-S	3UXY4x1.25-R	2	3 1/2″	5 1/8″
4″	1 1/4″	All Polyurethane	P	250	3AP4X1.25-S	3AP4X1.25-R	2	3 1/2″	5 1/8″
4″	1 1/4″	Blue Polyurethane on Aluminum	B	300	3PA4X1.25-S	3PA4X1.25-R	2	3 1/2″	5 1/8″
4″	1 1/4″	Polyolefin – Black	P	300	3PB4X1.25-S	3PB4X1.25-R	2	3 1/2″	5 1/8″
4″	1 1/4″	Polyolefin – Black Donut	B	300	3PB4X1.25B-S	3PB4X1.25B-R	2	3 1/2″	5 1/8″
4″	1 1/4″	Nylon ( White )	B	300	3NY4X1.25B-S	3NY4X1.25B-R	2	3 1/2″	5 1/8″
4″	1 1/4″	Phenolic	P	300	3TM4X1.25-S	3TM4X1.25-R	2	3 1/2″	5 1/8″
4″	1 1/4″	Hard Rubber	B	250	3RN4X1.25-S	3RN4X1.25-R	2	3 1/2″	5 1/8″
4″	1 1/4″	Gray Iron	P	300	3CL4X1.25-S	3CL4X1.25-R	2	3 1/2″	5 1/8″
4″	1 1/4″	High Temperature Phenolic	P	300	3TP4X1.25-S	3TP4X1.25-R	2	3 1/2″	5 1/8″
4″	1 1/4″	High Temperature Glass Filled Nylon	P	300	3NP4X1.25-S	3NP4X1.25-R	2	3 1/2″	5 1/8″
4″	1 1/4″	High Temp Glass Filled Nylon	P	300	3NP4X1.50-S	3NP4X1.50-R	2	3 1/2″	5 1/8″

CASTER WHEEL DIAM.	TREAD WIDTH	WHEEL TREAD MATERIAL Click below for Replacement Wheels	STD BRG TYPE	MAX CAP. EACH CASTER LBS.	SWIVEL CASTER Click P/N Below to Order	RIGID CASTER Click P/N Below to Orde	APPROX SWIVEL WEIGHT (LBS)	APPROX SWIVEL RADIUS	OVERALL HEIGHT
5″		FRAME ONLY FOR 5″ WHEELS	NA	NA	3YA5X1.25-S	3YA5X1.25-R	1 1/2″	4″	NA
5″	1 1/4″	Gray Soft Rubber	PS	250	3RF5X1.25-S	3RF5X1.25-R	2 1/2″	4″	6 1/4″
5″	1 1/4″	Gray Cushion Rubber	B	200	3RQ5X1.25-S	3RQ5X1.25-R	2 1/2″	4″	6 1/4″
5″	1 1/4″	Super Soft Gray Soft Rubber	B	125	3RS5X1.25-S	3RS5X1.25-R	2 1/2″	4″	6 1/4″
5″	1 1/4″	High Capacity Blue Rubber	B	300	3RHB5X1.25B-S	3RHB5X1.25B-R	2 1/2″	4″	6 1/4″
5″	1 1/4″	High Capacity Rubber	B	300	3RH5X1.25B-S	3RH5X1.25B-R	2 1/2″	4″	6 1/4″
5″	1 1/4″	Maroon/Gray Premium Polyurethane	B	300	3PM5X1.25-S	3PM5X1.25-R	2 1/2″	4″	6 1/4″
5″	1 1/4″	Gray Soft Rubber ( Crown )	PS	250	3RD5X1.25-S	3RD5X1.25-R	2 1/2″	4″	6 1/4″
5″	1 1/4″	Gray Polyurethane	PS	250	3GP5X1.25-S	3GP5X1.25-R	2 1/2″	4″	6 1/4″
5″	1 1/4″	Black/Gray Polyurethane	PS	250	3BK5X1.25-S	3BK5X1.25-R	2 1/2″	4″	6 1/4″
5″	1 1/4″	Blue/Gray Polyurethane	PS	250	3BP5X1.25-S	3BP5X1.25-R	2 1/2″	4″	6 1/4″
5″	1 1/4″	Red/Gray Polyurethane	PS	250	3RG5X1.25-S	3RG5X1.25-R	2 1/2″	4″	6 1/4″
5″	1 1/4″	Gray Polyurethane ( Crown )	PS	250	3GPC5X1.25-S	3GPC5X1.25-R	2 1/2″	4″	6 1/4″
5″	1 1/4″	Ultra Premium Orange Polyurethane	PS	350	3UXY5x1.25-S	3UXY5x1.25-R	2 1/2″	4″	6 1/4″
5″	1 1/4″	All Polyurethane	P	300	3AP5X1.25-SS	3AP5X1.25-R	2 1/2″	4″	6 1/4″
5″	1 1/4″	Blue Polyurethane on Aluminum	B	300	3PA5X1.25-S	3PA5X1.25-R	2 1/2″	4″	6 1/4″
5″	1 1/4″	Polyolefin – Black	P	300	3PB5X1.25-S	3PB5X1.25-R	2 1/2″	4″	6 1/4″
5″	1 1/4″	Polyolefin – Black Donut	B	300	3PB5X1.25B-S	3PB5X1.25B-R	2 1/2″	4″	6 1/4″
5″	1 1/4″	Nylon ( White )	B	300	3NY5X1.25B-S	3NY5X1.25B-R	2 1/2″	4″	6 1/4″
5″	1 1/4″	Phenolic	P	300	3TM5X1.25-S	3TM5X1.25-R	2 1/2″	4″	6 1/4″
5″	1 1/4″	Hard Rubber	B	250	3RN5X1.25-S	3RN5X1.25-R	2 1/2″	4″	6 1/4″
5″	1 1/4″	Gray Iron	P	300	3CL5X1.25-S	3CL5X1.25-RS	2 1/2″	4″	6 1/4″
5″	1 1/4″	High Temp Phenolic – Fiberglass	P	300	3TP5X1.25-S	3TP5X1.25-R	2 1/2″	4″	6 1/4″
5″	1 1/4″	High Temp Glass Filled Nylon	P	300	3NP5X1.25-S	3NP5X1.25-R	2 1/2″	4″	6 1/4″
5″	1 1/2″	High Temp Glass Filled Nylon	P	300	3NP5X1.50-S	3NP5X1.50-R	2 1/2″	4″	6 1/4″

Add On Options

Wheel Brakes are not designed to hold on inclines:

Swivel Radius for 3 inch PTB brake = 4-3/8″ ± 1/8″
Swivel Radius for 4 inch PTB brake = 4-1/8 ± 1/8″
Swivel Radius for 5 inch PTB brake = 4-1/2″ ± 1/8″

Plate Caster Model 3 Features:

Swivel Construction Stamped steel. Swivel has double ball bearing with hardened raceways. Metal cover shields swivel bearings from dirt and dust.

Finish: external metal parts are Zinc plated.

Axle is 3/8″ diameter bolt with lock nut.

Axle – 1/2” diameter hollow bolt with lock nut.

Center Pin is a 1/2″ diameter steel rivet.

Wheel Bearing Types (PS= Precision Sealed Ball Bearings, B= Ball Bearings, D= Delrin Bearings, RB= Roller Bearing, P= Plain Bore.)

Deduct 1/4 lb. for weight of rigid caster.

Use the Polyolefin ( Industrial Plastic ) wheel for “Standing Loads”. Polyolefin wheels eliminate the possiblilty of a flat spot developing if the castered equipment is left parked for a prolong period.

Types of Wheels for Plate Caster Model 3

Typical Application Use for the Plate Caster Model 3 Series:

Institutional Equipment

Moving Dollies

Computer Equipment

Electronic & Diagnostic Equipment

Office Equipment

Bakery Equipment

Stocking Carts

Food Service Carts

Labatory Equipment

A zinc plated quick change plate gets bolted to your equipment and enables the casters to be easily and quickly installed or replaced (changed) without using tools.

Quick Change Plate – Caster Model 3

PN: 3QCP-01-NO

$6.00

Please note: THIS DOES NOT FIT OUR MODEL 3A TOTAL LOCKING CASTER !!!!!! Do NOT use with RIGID Casters.

Need Help with your order?
(800) 501-3808

You should never select on the basis of load capacity alone. There is no industry standard for load capacity ratings and they may not include a factor for abuse. Our capacity ratings are below what the casters are capable of carrying because most applications have less than perfect conditions. Please refer to the information shown at the bottom of this page. If you have any doubt as to which wheel or caster is the BEST choice for your application contact us for a recommendation.
