FAQ

Frequently Asked Questions: 4″ x 2″ V-Groove Solid Polyurethane Wheels

What are 4″ x 2″ V-Groove Solid Polyurethane Wheels? These are heavy-duty caster wheels from Caster City, designed for precise tracking on inverted angle iron or round bar rails with a 7/16″ deep, 7/8″ wide V-groove. Made from solid polyurethane, they support up to 1,500–2,000 lbs per wheel, resist chemicals, oils, and acids, and operate from -20°F to 250°F. Equipped with precision sealed ball bearings for 1/2″ axles, they offer smooth, quiet, low-maintenance performance and can roll on smooth floors when off tracks, ideal for industrial applications like warehousing, manufacturing, and food processing.

Why are these wheels used in industrial settings? They are used for their precise tracking on rails, high load capacity (1,500–2,000 lbs), and durability in harsh environments. The solid polyurethane resists flat spots, chemicals, and abrasion, while the non-marking material protects floors. The V-groove ensures stable guidance for carts or AGVs, and flat treads allow off-track use. Sealed bearings provide quiet, maintenance-free operation, making them suitable for automotive, aerospace, chemical, and food processing industries.

What applications are these wheels best suited for? They excel in:

• Warehousing: Guiding pallets on tracks in automated systems.
• Manufacturing: Moving parts or tools along assembly lines.
• Automotive: Transporting heavy frames or components.
• Food Processing: Rolling carts in washdown areas.
• Chemical Plants: Handling materials in corrosive settings.
• Aerospace: Precise tool movement in fabrication shops. Their versatility supports both track-guided and free-rolling tasks on smooth floors.

Can these wheels be used off tracks? Yes, the 2″ wide flat treads on either side of the V-groove ensure stable, smooth rolling on flat, smooth floors without marking. This makes them versatile for mixed applications, such as transitioning from rail-guided paths to free-rolling in warehouses or production areas, maintaining their high load capacity.

How do these wheels compare to metal V-groove wheels? Compared to metal wheels, these polyurethane wheels are non-marking, protecting floors from scratches or dents. They offer similar high load capacities (1,500–2,000 lbs) but resist chemicals, oils, and acids better, though they may not match metal’s heat tolerance in extreme conditions. Their sealed bearings ensure quieter, maintenance-free operation compared to metal wheels, which often require lubrication.

What environments are these wheels suitable for? They thrive in harsh, corrosive, or sanitary environments, resisting chemicals, oils, acids, and abrasion. Suitable for temperatures from -20°F to 250°F, they’re ideal for food processing, chemical plants, marine settings, and warehouses with frequent washdowns. Avoid extreme heat beyond 250°F, where metal may perform better.

What bearing type is used? These wheels use precision sealed ball bearings with a 1/2″ inner diameter, ensuring smooth, low-friction, and quiet operation. The sealed design is maintenance-free, preventing dust and debris buildup, ideal for hygienic or dusty environments. No other bearing options are specified for this model.

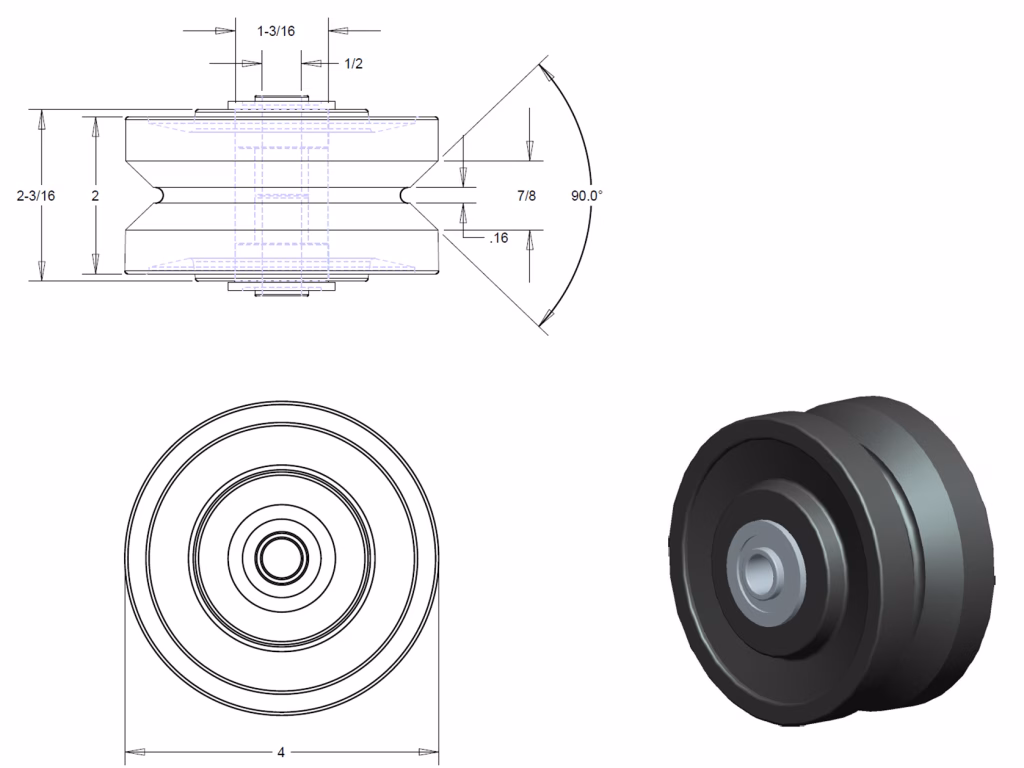

How do the V-groove dimensions affect performance? The 7/16″ deep, 7/8″ wide V-groove securely engages angle iron or round bar tracks, preventing derailment and ensuring precise tracking under loads up to 1,500–2,000 lbs. The flat treads balance weight distribution, reducing wear and enabling stable rolling on tracks or smooth floors.

Can these wheels handle static loads? Yes, the solid polyurethane construction prevents flat spots and delamination under static loads up to 1,500–2,000 lbs, ensuring reliability for stationary equipment or carts in industrial settings, unlike softer materials that may deform over time.

Are these wheels customizable? Standard configurations include polyurethane material, 4″ x 2″ size, and sealed bearings, but Caster City may offer modifications for specific track designs or load requirements. Contact the engineering team at 800-501-3808 to discuss custom needs within the specified capacity and temperature range.

How do I maintain these wheels? The sealed bearings require no lubrication, making them maintenance-free. Wipe down the non-porous polyurethane with approved cleaners to remove chemicals, oils, or debris. Inspect tracks for debris to ensure smooth tracking and avoid exceeding the 1,500–2,000 lb capacity to prolong wheel life.

Are these wheels noisy? No, the precision sealed ball bearings minimize friction and vibration, ensuring quiet operation compared to metal or roller-bearing wheels. This is ideal for noise-sensitive environments like food processing plants, pharmaceutical labs, or automated production lines.

Can these wheels be used in food processing or cleanroom environments? Yes, the non-marking polyurethane and chemical-resistant design suit food processing and cleanroom settings. The non-porous surface is easy to clean, and sealed bearings prevent contamination, meeting sanitation standards. Ensure proper cleaning to maintain hygiene compliance.

How do I choose this wheel size? The 4″ x 2″ size is ideal for tight spaces or lower-profile applications with loads up to 1,500–2,000 lbs. Consider track dimensions, floor conditions, and clearance needs. Contact Caster City at 800-501-3808 for guidance on fitment or alternative sizes.

What is the temperature range for these wheels? They operate reliably from -20°F to 250°F, suitable for cold storage or moderate-heat environments like food processing. Avoid prolonged exposure to temperatures above 250°F, as polyurethane may degrade. Consult Caster City for high-heat applications.

How do I install these wheels? Mount on 1/2″ axles compatible with the sealed bearings. Align the V-groove with tracks for guided use or position for flat-floor rolling. Ensure the caster frame matches the 2″ hub width. Contact Caster City at 800-501-3808 for installation advice.

Where can I get more information or support? For specs, quotes, or application guidance, contact Caster City’s engineering team at 800-501-3808. Visit Caster City for product details, technical data, or to request a quote. The team can assist with environmental suitability or custom configurations.
