6″ Black Polyolefin Wheel – Black Finish Model 9 Rigid Caster
$37.00
In Stock
Technical Specifications
Wheel Diameter
6
Wheel Width
2
Wheel Bearing
Roller
Maximum Capacity (lbs)
700 lbs
Overall Height
7 1/2"
Color
Black
Weight
5.25 lbs
Description
Black finished casters are designed with a semi-gloss black coating, not only enhancing their visual appeal but also providing protection against corrosion.
E-coat is an electrically applied paint coating. It is used as either a decorative or protective coating that enhances the appearance of parts while also protecting the surface of parts. Typical thickness is regulated to range between .0002” to .001” depending on the requirements.
Plate Caster Model 9 Rigid Caster is the matching plate caster for the Model 9 Swivel Caster. When manually moving equipment supported by 4 swivel casters it can be difficult to control the direction you are pushing or pulling. Rigid casters assist in controlling equipment being moved in straight line travel. Equipment with rigid casters installed can not move sideways. Rigid Casters are usually installed at the opposite end of the push handle. Leg thickness is 1/4”. The axle diameter is 1/2” long and is designed to use wheels with a hub width of 2 7/16”. This caster is constructed from stamped steel.
Rigid Casters can carry more weight than swivel casters because they do not have an offset. Nevertheless, on our website both rigid casters and matching swivel casters are shown with the same capacity. Other mounting plate sizes and wheel bearing types are available on request.
This caster is available in Stainless Steel Model 9. It is constructed from 304 Stainless Steel. This is an excellent caster for wet or corrosive applications if your total weight exceeds 1000lbs. comes with the same large selection of wheels, some of which are also NSF and ROHS compliant.
*This Plate Caster Model 9 contains the Black Polyolefin with Roller Bearing in the Wheel.

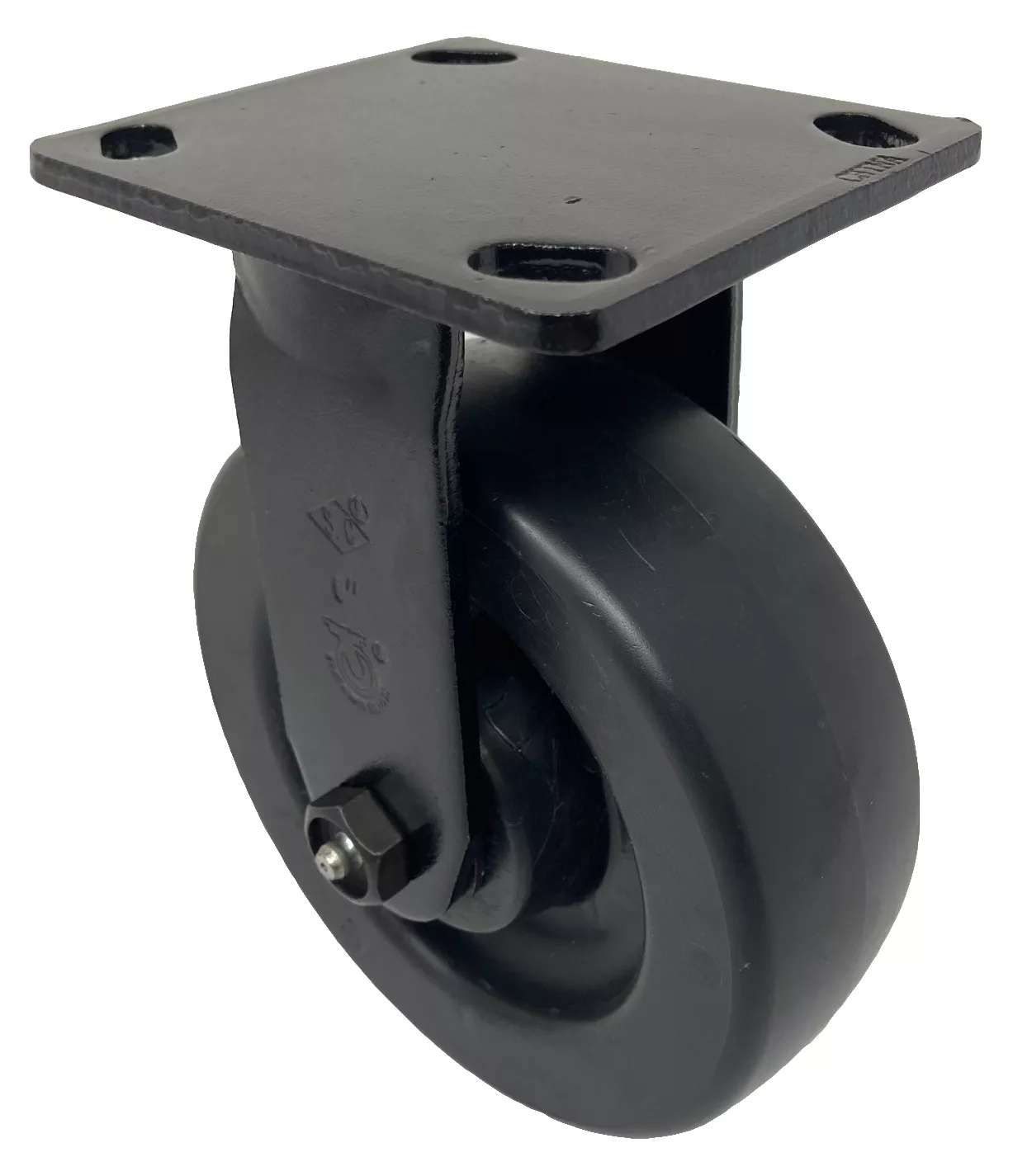

The Photo Displayed on CasterCity.com is the 6″ Caster Wheel.
This caster is available in Stainless Steel – click here. This is an excellent caster for wet or corrosive applications if your total weight exceeds 1000lbs. It comes with the same large selection of wheels, some of which are also NSF and ROHS compliant.
For more information and help placing an order, give us a call at 800-501-3808.
Our #1 goal is to help you find the best caster and wheels for your needs. If you need help finding the right casters, contact our team of professionals. You can also customize many of our casters with a variety of options such as swivel locks, wheel brakes and zerk fittings. We ship our products from assembly plants in Georgia, Pennsylvania, Virginia, Texas, Nevada and Canada. Whether you’re a one-man shop or a global giant, we can provide you with: We specialize in Business to Business, however, consumer orders are gladly accepted and we can provide you with:
- Fastest Lead Time in the Industry
- Caster performance data.
- Comparative data.
- Customized caster solutions.
- Help with caster solutions.
- Case studies by industry or application.
- Manufacturer and Distributor of over $25 million dollars in Finished Component Parts
- Majority of Orders Processed and Shipped in 2 Days or Less
If you have any questions about your measurements, please call 800-501-3808
