Download STP FileDownload 2D File6″ Low Friction Crown Tread 65D Polyurethane on Aluminum – Model 9 Swivel Caster
$74.44
In Stock
Please select any add ons you require for your caster and if you are selecting multiple option types, add all of the quantity for the first choice and then make your selections for the second, third, fourth, etc… choices. (Example: 2 With Brakes and 2 Without Brakes)
Technical Specifications
Wheel Diameter
6"
ISO 9001
ISO 9001:2015 Certified
Wheel Core Material
Aluminum
Fork Finish
Zinc Coating
Caster City Recommendation
Ollie Recommends!
Non-Marking
Yes
Wheel Width
2"
Wheel Bearing
Precision Sealed
Maximum Capacity (lbs)
1000 lbs
Overall Height
6-1/2"
Swivel Radius
4-1/4"
Color
Blue
Plate Fastener Type
Mounting Plate, Top Plate
Plate Mounting Type
Top Plate
Durometer
65D ± 5
Weight
6 lbs
- Description
- FAQ
- Applications
- Reviews
- CASTER CITY GUARANTEE
- Measurement Conversion Table
- Articles and How to Guides
Description

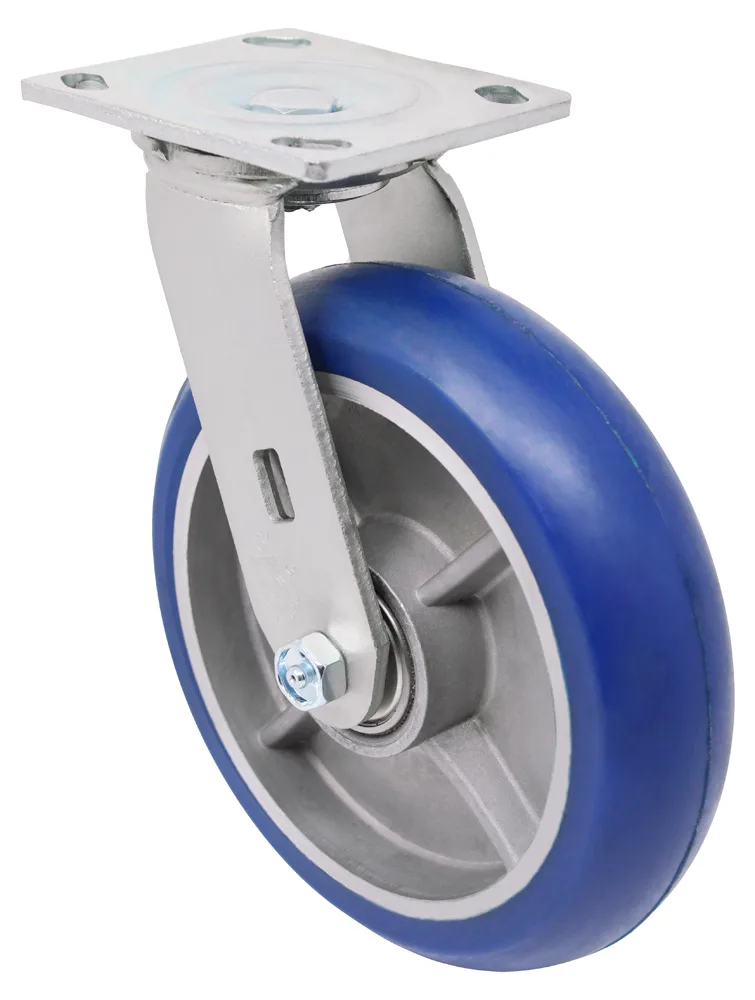

9UDC6x2-S (Swivel Caster) – The Ultimate Carpet Caster
The UDC crown tread polyurethane wheel uses 65D Shore D hardness (2.5-3× stiffer than standard 95A polyurethane) to fundamentally change how wheels interact with carpet. While conventional flat tread wheels compress into carpet pile, creating a plowing wave of buckled fibers, the UDC’s hard crown acts as a wedge that parts fibers laterally rather than crushing them vertically. The crowned geometry concentrates each wheel’s load into a 0.4-0.6″ contact patch, exceeding the fiber buckling threshold and forcing carpet fibers to deflect around the wheel rather than compress beneath it. This dramatically reduces rolling resistance and cuts swivel resistance by up to 80% compared to 95A flat tread polyurethane wheels. The minimal tire deflection of hard polyurethane means up to 60% less energy lost per revolution per wheel compared to softer flat polyurethane, enabling sustained operation on carpet without thermal bond degradation. Fibers spring back immediately after the crown passes, eliminating the viscoelastic lag and fiber bunching that plague soft rubber and standard Shore A polyurethane wheels.
Comparative analysis: A 6×2 wheel with 95A flat tread polyurethane maintains a contact patch up to 4× larger than the “UDC” crown tread polyurethane wheel. The result is vertical compression, buckling, and a continuous resistance wave ahead of each flat wheel. The 65D crown tread engages far fewer carpet fibers per wheel across its narrow tread face, forcing lateral deflection instead of vertical crushing. The crown’s reduced moment arm cuts swivel friction dramatically, allowing operators to change direction with significantly less effort. Service life extends through superior abrasion resistance inherent to hard durometer polyurethane, and the narrow contact patch experiences one-fifth the wear rate of full-width flat treads. Ideal for hospital equipment carts, hotel housekeeping, office furniture, and conference room AV systems transporting 1,200-1,600 lb loads where carpet dominates but hard floor transitions occur. The UDC 6×2 crown tread delivers reduced push force in real-world conditions. Wheel comes equipped with maintenance-free precision sealed ball bearings to further reduce the effort required for staff to move 1,400 lb loads on carpeted surfaces.
The Model 9 swivel bearing uses flame-hardened raceways with dual rows of balls and a 5/8″ welded kingpin, providing smooth 360-degree rotation under the full 1,000 lb load rating. The 4×4-1/2″ zinc-plated steel mounting plate with 2-5/8×3-5/8″ bolt pattern makes installation straightforward on most equipment. This swivel caster thrives in dry indoor factories, assembly lines, hospitals, and anywhere operators need a low-effort, maneuverable solution that protects floors while handling serious weight. The maintenance-free sealed bearings and non-marking blue tread make it ideal for clean environments where downtime isn’t an option and appearance matters.
DO NOT ORDER SWIVEL LOCK OR RACEWAY SEALS IF YOU ORDER THE TL – TOTAL LOCK BRAKE. THE TL BRAKE WILL NOT WORK WITH EITHER THE SWIVEL LOCK OR RACEWAY SEALS.
*This Plate Caster Model 9 contains the Orange Crown Tread Polyurethane on Aluminum Wheel. Precision Sealed Ball Bearings in the Wheel.
The Photo Displayed on CasterCity.com is the 6″ Caster Wheel.
This caster is available in Stainless Steel – click here. This is an excellent caster for wet or corrosive applications if your total weight exceeds 1000lbs. It comes with the same large selection of wheels, some of which are also NSF and ROHS compliant.
For more information and help placing an order, give us a call at 800-501-3808.
FAQ
What makes the UDC Crown Tread Polyurethane on Aluminum Hub Wheel a good industrial wheel for heavy duty casters?
The UDC Crown Tread Polyurethane on Aluminum Hub Wheel offers the lowest rolling resistance of any polyurethane wheel, with a 65D durometer hard crown tread that cuts through carpet fibers and changes directions effortlessly while supporting heavy loads up to 1,200 lbs, making it ideal for heavy duty Model 9 casters.
What materials are used in the UDC Crown Tread Polyurethane on Aluminum Hub Wheel for casters and wheels?
The UDC Crown Tread Polyurethane on Aluminum Hub Wheel features a non-marking high quality polyurethane tire with a 65 Shore D durometer, chemically and mechanically bonded to a lightweight aluminum hub, available in blue only.
What applications are best suited for the UDC Crown Tread Polyurethane on Aluminum Hub Wheel as a heavy duty wheel?
The UDC Crown Tread Polyurethane on Aluminum Hub Wheel excels on parade floats, carpeted staging areas, medical equipment, warehouse carts, and material handling setups on smooth floors or indoor carpet, where Model 9 heavy duty casters need maximum ergonomics and minimal rolling effort.
How does the UDC Crown Tread Polyurethane on Aluminum Hub Wheel handle carpet as an industrial caster wheel?
The UDC Crown Tread Polyurethane on Aluminum Hub Wheel cuts through carpet pile like a wedge instead of compressing fibers, with its 65D hard crown creating a line contact that parts fibers cleanly, eliminating the bunching and drag common with soft rubber wheels on Model 9 heavy duty casters.
Why does the UDC Crown Tread Polyurethane on Aluminum Hub Wheel reduce rolling effort for heavy duty casters?
The UDC Crown Tread Polyurethane on Aluminum Hub Wheel’s large crown tread and counter-bored hub with precision sealed ball bearings minimize surface friction and deflection, requiring less effort to start, turn, and maintain rolling loads than any other polyurethane wheel on Model 9 casters.
Why use the UDC Crown Tread Polyurethane on Aluminum Hub Wheel for heavy duty casters instead of softer wheels?
The UDC Crown Tread Polyurethane on Aluminum Hub Wheel delivers maximum ergonomics with its 65D durometer that eliminates tire deflection and carpet fiber compression, reducing draw bar pull significantly compared to softer wheels, making it the top choice for long-distance manual movement on Model 9 heavy duty casters.
What bearing type comes with the UDC Crown Tread Polyurethane on Aluminum Hub Wheel for heavy duty casters?
The UDC Crown Tread Polyurethane on Aluminum Hub Wheel comes with a counter-bored hub using precision sealed ball bearings, maintenance-free and designed for smooth operation in industrial caster wheel applications on Model 9 frames.
What’s the temperature range for the UDC Crown Tread Polyurethane on Aluminum Hub Wheel in industrial casters?
The UDC Crown Tread Polyurethane on Aluminum Hub Wheel operates from -40°F to 180°F with its 65 Shore D durometer, making it suitable for Model 9 heavy duty casters in typical indoor and outdoor environments, though caustic chemical exposure should be avoided due to aluminum hub reactivity.
What sizes and load capacities does the UDC Crown Tread Polyurethane on Aluminum Hub Wheel offer for casters and wheels?
The UDC Crown Tread Polyurethane on Aluminum Hub Wheel is available in 6×2 and 8×2 sizes only, supporting 1,000 lbs (6×2) and 1,200 lbs (8×2) per wheel for Model 9 industrial caster applications requiring the lowest rolling resistance and maximum maneuverability.
Why is the UDC Crown Tread Polyurethane on Aluminum Hub Wheel a top choice for heavy duty industrial usage with manual equipment?
The UDC Crown Tread Polyurethane on Aluminum Hub Wheel is the top choice for heavy duty industrial usage with its non-marking blue tread, lightweight aluminum hub for reduced push force, superior heat dissipation, and attractive appearance, delivering the lowest rolling resistance available on Model 9 casters for parade floats, medical carts, and carpeted environments up to 1,200 lbs.
Applications
Application Use Plate Industrial Caster Model 9:
The Plate Model 9 is designed for medium to heavy-duty jobs and are built for floor protection, mobility, and ergonomic effectiveness in a variety of industries, such as:
Manufacturing Industry
- Assembly line carts
- Tool carts and cabinets
- Workbenches
- Assembly stations
- Die and mold carts
- Material handling carts
- Engine stands
- Transmission jacks
- Wing assembly jigs
Warehousing and Distribution
- Stock picking carts
- Shipping and receiving carts
- Flatbed carts
- Dollies
- Mobile shelving units
Automotive Industry
- Vehicle assembly line equipment
- Parts transport carts
- Tool chests
- Battery carts
- Mobile diagnostic equipment
Aerospace Industry
- Aircraft maintenance platforms
- Engine transport dollies
- Wing and fuselage assembly jigs
Food Processing and Service
- Ingredient bins
- Mixing bowls on stands
- Oven racks
- Bakery carts
- Kitchen carts
- Serving trolleys
- Laundry carts
Healthcare
- Hospital beds
- Medical carts
- Mobile diagnostic machines
Retail
- Mobile display racks
- Shelving units
- Point-of-purchase displays
- Shopping carts
Construction and Maintenance
- Mobile scaffolds
- Work platforms
- Tool carts
- Generator carts
- Compressor carts
Agriculture
- Farm machinery parts transport carts
- Greenhouse carts
Marine
- Boat mold transport carts
- Deck equipment movement
Data Centers and IT
- Server rack carts
- Mobile cabinets
Entertainment and Events
- Stage equipment carts
- Lighting and sound equipment stands
- Mobile platforms
Laboratories
- Lab carts
- Equipment stands
Printing and Publishing
- Paper roll carts
- Printing press component transport
Textile Industry
- Fabric roll carts
- Sewing machine stands
Chemical Industry
- Drum dollies
- Cylinder carts
HVAC and Electrical
- HVAC equipment carts
- Electrical panel carts
Woodworking and Metalworking
- Mobile worktables
- Saw stands
- Material handling carts
Waste Management
- Waste containers on wheels
- Recycling bins
Fitness Centers
- Mobile weight racks
- Equipment stands
Transportation Hubs
- Baggage carts
- Luggage carts
Cold Storage and Refrigeration
- Refrigerated warehouse carts
- Food processing plant equipment
Our #1 goal is to help you find the best caster and wheels for your needs. If you need help finding the right casters, contact our team of professionals. You can also customize many of our casters with a variety of options such as swivel locks, wheel brakes and zerk fittings. We ship our products from assembly plants in Georgia, Pennsylvania, Virginia, Texas, Nevada and Canada. Whether you’re a one-man shop or a global giant, we can provide you with: We specialize in Business to Business, however, consumer orders are gladly accepted and we can provide you with:
- Fastest Lead Time in the Industry
- Caster performance data.
- Comparative data.
- Customized caster solutions.
- Help with caster solutions.
- Case studies by industry or application.
- Manufacturer and Distributor of over $25 million dollars in Finished Component Parts
- Majority of Orders Processed and Shipped in 2 Days or Less
If you have any questions about your measurements, please call 800-501-3808
