Name: 6" Polyurethane on Iron Swivel Wheel Heavy Duty - Model 50
SKU: 50PYH6X3-S
Availability: InStock

1 +

Volume Pricing on Inquiry. Call us: 800-501-3808

Most of our casters are assembled and dispatched within 24-48 hours.

Click to Download CAD Files

Download STP File Download 2D File

6″ Polyurethane on Iron Swivel Wheel Heavy Duty – Model 50

$192.49

PN: 50PYH6X3-S

In Stock

Please select any add ons you require for your caster and if you are selecting multiple option types, add all of the quantity for the first choice and then make your selections for the second, third, fourth, etc… choices. (Example: 2 With Brakes and 2 Without Brakes)

SKU: 50PYH6X3-SCategories: Plate Casters, Swivel Casters, Model 50 - Up To 7,000lbs each - Plate Size 5-1/4" x 7-1/4", Model 50 Swivel

Technical Specifications

Kingpinless

Yes

Caster City Recommendation

Ollie Recommends!

Non-Marking

Yes

Durometer

60D ± 5

ISO 9001

ISO 9001:2015 Certified

Wheel Core Material

Iron

Fork Finish

Zinc Coating

Wheel Diameter

Wheel Width

Wheel Bearing

Roller

Maximum Capacity (lbs)

3000 lbs

Overall Height

Swivel Radius

4-3/4"

Color

Green

Plate Zinc Swivel Lock Code

SL4

Plate Zinc Brake Code

FCB

Plate Fastener Type

Mounting Plate, Top Plate

Plate Mounting Type

Top Plate

Weight

26 lbs

Description

The Plate Caster Model 50 with Polyurethane on Iron Wheel – Heavy Duty is an upgrade of the Plate Caster Model 30 version. This Model 50 has a large top plate and thick legs, which allow for heavy loads and more arduous service. The fittings are lubricated for all movable parts and the swivel wheel bearing is ready made for high performance. The plate frames are zinc plated for rust protection. Add On Options: Swivel Lock and Face Contact Wheel Brake.

*This Model 50 Plate Caster contains the 6″ x 3″ Polyurethane on Iron Swivel Wheel Heavy Duty.

For more information and help when placing an order, call us at 800-501-3808.

Sample of the Plate Caster Model 50:

Application Use:

Dough Troughs
Tow Line
Platform Trucks
Scrap Metal Carriers
Trash Gondola
Fixture Carts
Drywall Dollies
Autoclave Dollies
Powder Coating Racks
Heavy Duty Power Drawn Applications
Machinery Dollies
Cradle Dollies
Gantry Cranes

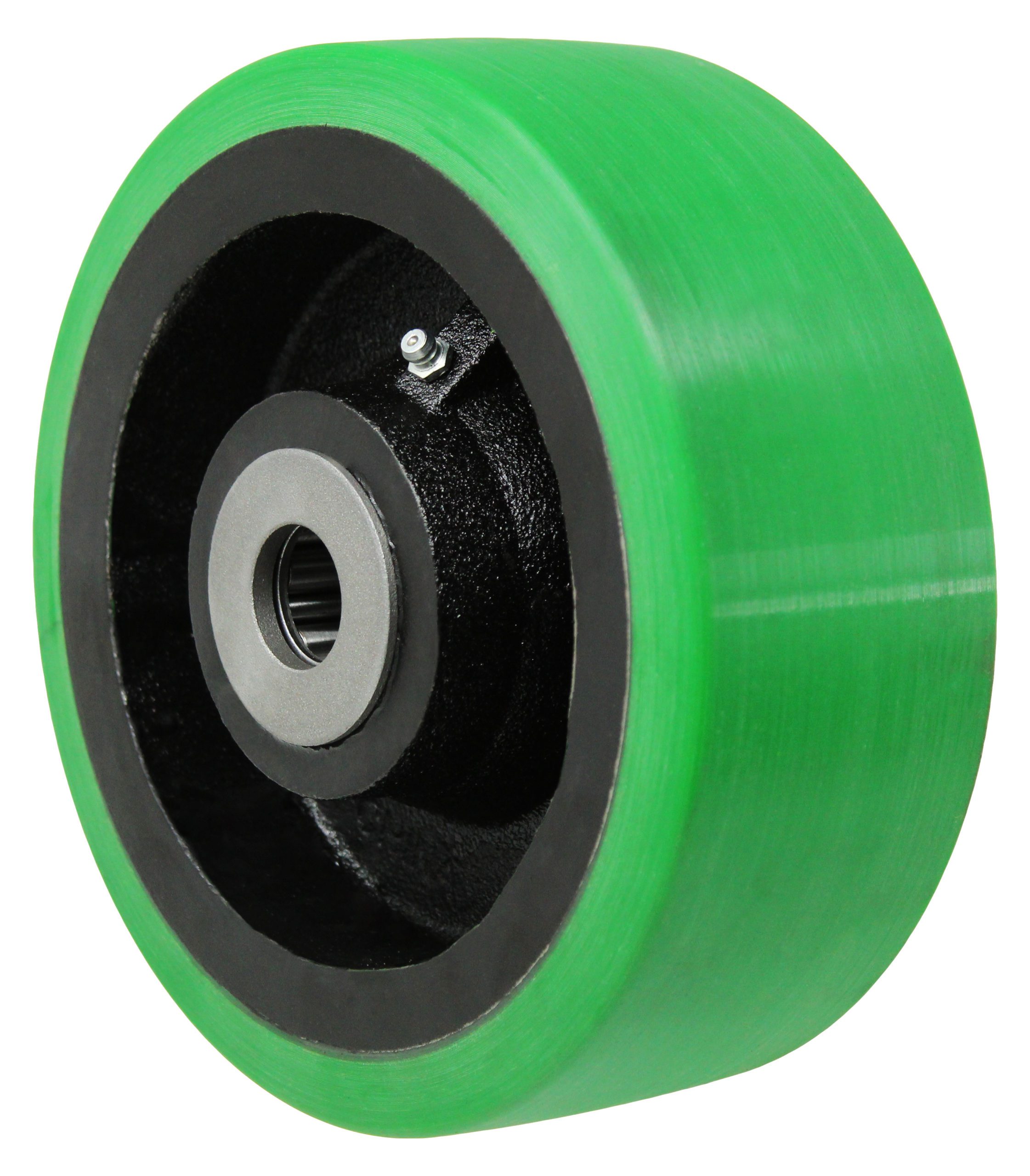

Polyurethane on Iron Caster Wheel from Caster City

Caster City’s PYH Industrial Caster Wheel is engineered for heavy-duty applications, featuring an extra thick ¾” polyurethane tire bonded to a robust cast iron core for superior load capacity and extended lifespan. Available in diameters from 6” to 12” and tread widths of 3” or 4”, the PYH wheel is designed to handle higher load ratings and more demanding conditions than standard polyurethane wheels of its size. Its Shore D 60 (+/- 5) durometer provides a harder tread, making it particularly suitable for supporting static loads while resisting flat spotting, provided the load does not exceed 70% of the wheel’s rated capacity in static applications.

The PYH wheel’s green polyurethane tire, combined with its heavy iron center, ensures durability and the ability to withstand arduous industrial environments. It offers a variety of bearing options, with tapered roller bearings as standard, and sealed precision ball bearings or roller bearings also available to optimize performance across different applications. The thicker tire enhances the wheel’s capacity to carry heavy loads and endure more abuse than comparable polyurethane wheels, making it an excellent choice for manufacturing, warehousing, or other high-demand settings where reliability is critical.

With a temperature range of -40°F to 180°F, the PYH Industrial Caster Wheel is built to perform in diverse conditions while maintaining its structural integrity. The harder durometer and extra thick tire design provide exceptional support for static loads, ensuring stability and longevity. For heavy-duty applications requiring a balance of high capacity, durability, and performance, the PYH wheel stands out as a top solution. Contact Caster City for custom configurations to meet your specific industrial needs with this versatile, high-performance caster wheel.

FAQ

What is the Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel, and what’s it used for?

The Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel is an industrial plate caster, kingpinless, with a 5 1/4″ x 7 1/4″ mounting plate and 3/8″ thick legs, rated up to 7,000 pounds per caster. It’s a heavier-duty upgrade to Model 30, designed for tough industrial tasks like moving heavy carts in warehouses, manufacturing plants, or automotive facilities, handling both manually moved and mechanically powered equipment, with its extra hard and thick tread sustaining heavy static loads before flat spotting.

What’s the load capacity of the Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel?

The Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel supports up to 7,000 lbs per caster, with the PYH wheel reaching a maximum capacity of 5,000 lbs when equipped with tapered roller bearings under ideal manual conditions (up to 3 mph). The extra hard and thick 3/4” tread helps sustain heavy static loads before flat spotting, though capacity may be slightly reduced with roller bearings or precision sealed ball bearings—contact us for powered or harsh conditions.

What wheel sizes are available for the Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel?

The Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel comes in 3” width only with diameters of 6”, 8”, 10”, and 12”. Larger diameters like 12” handle heavier loads and uneven surfaces better, with the thick tread resisting flat spotting under static loads.

What materials are used in the Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel?

The Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel features a zinc-plated steel frame with a stainless steel option, a precision machined swivel bearing, double-welded 3/8″ thick legs, and a 3/4” axle diameter. The PYH wheel has a 3/4” thick 65D durometer polyurethane tread chemically bonded to a heavy-duty iron center, designed to sustain heavy static loads before flat spotting.

What bearings are used in the Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel?

The Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel comes with tapered roller bearings (max 5,000 lbs), roller bearings, or precision sealed ball bearings for smooth rolling under heavy loads. For specific needs, call Caster City at 800-501-3808.

What brake options are available for the Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel?

The Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel offers a Swivel Lock (weld-on or bolt-on), a Weld On Face Contact Brake, or a TB Pedal on Side top lock brake. These options lock the wheel or swivel for stability in demanding settings. Swivel Locks convert a swivel caster into a rigid caster to enable straight line travel over a long distance and greatly helps with truck tramp usage.

Can the Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel handle wet or corrosive environments?

The Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel has a zinc-plated steel frame that resists rust, with a stainless steel option for wet or corrosive settings—ideal if your total load exceeds 4,000 lbs. The polyurethane tread offers chemical resistance and sustains static loads without flat spotting.

Which industries use the Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel?

The Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel is used in warehouses, automotive plants, heavy manufacturing, construction, logistics hubs, observatories, food processing, and renewable energy, perfect for moving heavy static loads like storage racks or machinery.

How do I maintain the Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel for long-term use?

The Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel requires greasing the lubrication fittings on the raceway, wheel bearings, and axle regularly. The extra hard and thick 3/4” 65D tread sustains heavy static loads without flat spotting—don’t exceed 7,000 lbs per caster.

Can the Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel be used with powered equipment?

The Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel is built for both manual and mechanically powered equipment thanks to its precision machined swivel bearing. For powered setups, call Caster City at 800-501-3808 to confirm safety.

What size is the mounting plate on the Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel?

The Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel has a top plate of 5 1/4″ x 7 1/4″ with bolt hole spacing of 3 3/8″ x 5 1/4″ slotted to 4 1/8″ x 6 1/8″, using 3/8″ mounting bolts, making it a solid fit for replacing old casters or heavy equipment. Contact us for detailed specs.

Where can I buy the Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel?

The Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel is available at www.castercity.com or get more details there. For custom setups or questions, call Caster City at 800-501-3808 or email sales@castercity.com.

What are the overall heights for the Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel?

The Heavy Duty Plate Caster Model 50 with PYH Heavy Duty Polyurethane on Iron Center Wheel has the following overall heights: 6” x 3” wheel is 8”, 8” x 3” wheel is 10-1/2”, 10” x 3” wheel is 12-1/2”, and 12” x 3” wheel is 15-1/2”. These heights help determine fit for your equipment, especially under static loads.

Construction: Zinc-plated steel frame with stainless steel option
Weight Capacity: Up to 7,000 lbs per caster, limited by PYH wheel (5,000 lbs with tapered roller bearings)
Wheel Sizes: 6” x 3”, 8” x 3”, 10” x 3”, 12” x 3”
Bearings: Tapered roller bearings (default, 5,000 lbs), roller bearings, or precision sealed ball bearings
Brake Options: Swivel Lock (weld-on or bolt-on), Weld On Face Contact Brake, Pedal on Side of Wheel Brake (TB)
Top Plate: 5 1/4″ x 7 1/4″ with bolt hole spacing 3 3/8″ x 5 1/4″ slotted to 4 1/8″ x 6 1/8″
Overall Heights: 6” x 3” wheel (8”), 8” x 3” wheel (10-1/2”), 10” x 3” wheel (12-1/2”), 12” x 3” wheel (15-1/2”)
Applications: Warehouses, automotive plants, heavy manufacturing, construction, logistics hubs, observatories, food processing, renewable energy

Application Use

Applications List for Plate Caster Model 50

Manufacturing Plants: Heavy machinery transport carts, industrial press movers, assembly line equipment carts, and large tool carts, handling extreme loads in dry factory settings.
Construction Sites: Material handling carts for steel beams, mobile crane bases, heavy scaffolding movers, and concrete equipment transport, managing high-capacity construction materials on smooth surfaces.
Automotive Assembly Lines: Engine block transport carts, chassis assembly carts, heavy-duty parts movers, and tool carts, supporting large automotive components in dry environments.
Warehouses: Oversized pallet jacks, heavy storage rack movers, large conveyor system carts, and industrial dollies, moving massive loads in dry warehouse conditions.
Distribution Centers: High-capacity conveyor system carts, large shipping crate movers, heavy-duty inventory transport carts, and bulk goods movers, handling extreme loads in dry settings.
Steel Mills: Steel plate equipment carts, mobile furnace tools, large casting mold movers, and maintenance carts, supporting heavy loads in high-impact, dry environments.
Foundries: Heavy mold carts, casting equipment movers, large crucible transport carts, and maintenance tool carts, managing extreme loads in dry, high-impact foundry settings.
Aerospace Manufacturing: Aircraft component transport carts, mobile jigs and fixtures, large assembly line equipment movers, and tool carts, handling heavy aerospace parts in dry factory conditions.
Mining (Dry Areas): Ore cart movers in dry zones, mobile drilling equipment carts, heavy conveyor belt movers, and maintenance tool carts, supporting massive mining equipment in non-corrosive areas.
Waste Management (Dry Areas): Oversized waste bin movers, large recycling equipment carts, and dry waste material transport carts, managing heavy waste loads in dry environments.
Semiconductor Manufacturing (Dry Areas): Heavy wafer handling carts, photolithography equipment movers, CMP tool transport carts, and cleanroom furniture, supporting large loads in dry, controlled environments.
Textile Industry (Dry Areas): Large fabric roll transport carts, mobile looms, heavy dyeing equipment movers, and maintenance tool carts, handling extreme textile loads in dry factory settings.
Pulp and Paper Industry (Dry Areas): Massive paper roll transport carts, mobile processing equipment, pulp bale movers, and maintenance carts, managing heavy loads in dry, non-corrosive areas.
Agricultural Processing (Dry Areas): Large fertilizer transport carts, grain bin movers, mobile harvesting equipment carts, and storage units, supporting heavy loads in dry agricultural settings.
Retail and Logistics: High-capacity stock carts, large warehouse shelving movers, and heavy delivery equipment carts, handling massive loads in dry retail and logistics environments.
Entertainment Industry: Large stage equipment movers, heavy lighting rig transport carts, oversized prop carts, and mobile set pieces, managing heavy loads in dry, controlled settings like studios or theaters.
Heavy Equipment Rental: Mobile generator carts, large compressor movers, heavy equipment transport carts, and mobile pump carts, handling extreme rental equipment loads in dry environments.
Oil and Gas (Dry Areas): Mobile pump carts, heavy pipe transport carts, drilling equipment movers, and maintenance tool carts, supporting large loads in dry, non-corrosive oil and gas settings.
Military and Defense (Dry Areas): Mobile weapons system carts, heavy ammunition transport carts, equipment movers, and maintenance tool carts, handling extreme loads in dry, controlled environments.
