Description

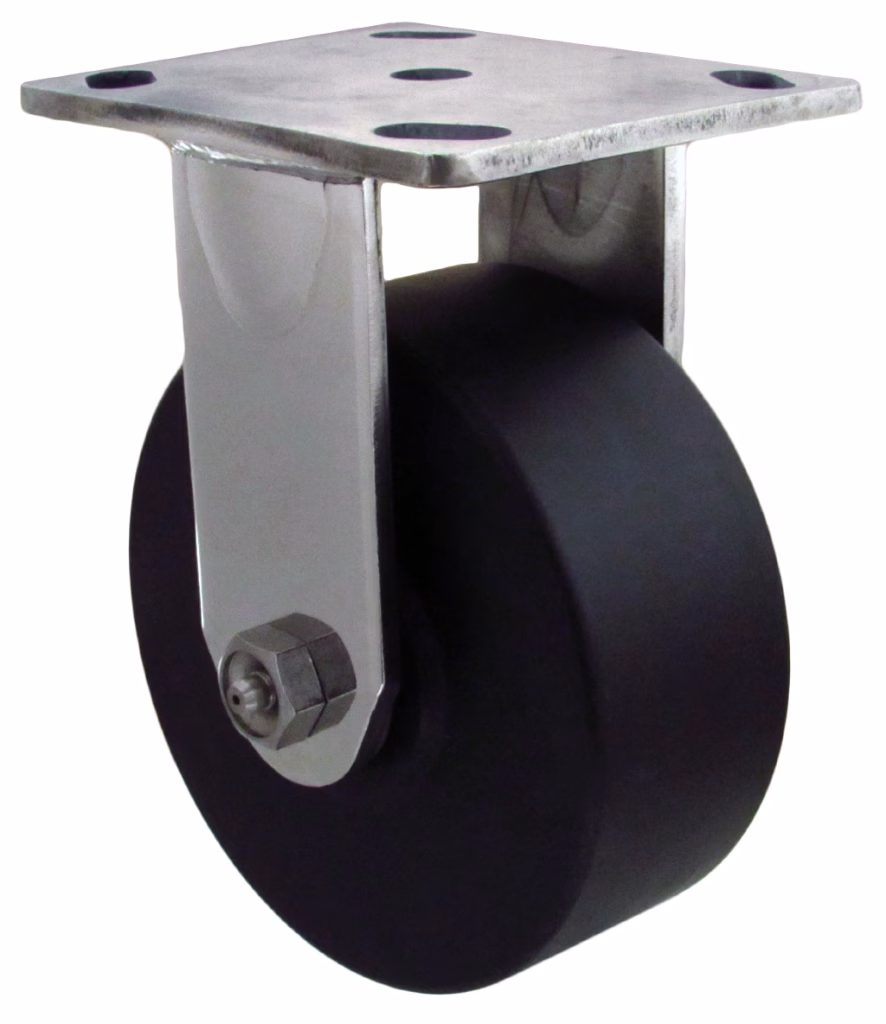

Ultra High Capacity NX Polymer Caster Wheel with SS316-9 Stainless Steel Fork

The Ultra High Capacity NX Polymer Caster Wheel, paired with the SS316-9 Industrial Caster Yoke/Fork, delivers top-notch strength for heavy-duty tasks. This caster supports up to 1250 pounds, making it perfect for moving heavy loads in tough environments. The NX wheel, made from non-marking black polymer, protects floors from scratches and dents caused by metal wheels. Its compression-molded design ensures durability without flat spots or delamination, unlike polyurethane wheels. The SS316-9 fork, crafted from 316 stainless steel, resists corrosion in harsh settings like chemical plants or marine environments. The Delrin bearing, a high-lubricity plastic, rolls smoothly, especially when wet, and resists chemical damage. Available in 4”, 5”, and 6” diameters, all 2” wide, this caster suits indoor and outdoor applications where floor protection and reliability are key. Key Specifications

• Max Capacity: Supports 1250 pounds per caster for heavy loads.
• Material: Non-marking black polymer NX wheel; 316 stainless steel fork; Delrin bearing.
• Wheel Width: 2” wide for all sizes.
• Wheel Height: Available in 4”, 5”, and 6” diameters.
• Bearing Type: Delrin bearing for smooth rolling in wet or chemical environments.
• Hardness: 80 Shore D for excellent durability.
• Temperature Range: Operates from -20°F to 250°F (approximate melting point: 500°F).
• Tread Face: Flat for stable load distribution.
• Chemical Resistance: Resists acids, oils, greases, and corrosion.

Why Choose the NX Caster?
The NX Caster combines a high-capacity polymer wheel with a corrosion-resistant 316 stainless steel fork and a Delrin bearing. The non-marking NX wheel prevents floor damage, unlike metal wheels that can mark or dent surfaces. Its compression-molded design avoids flat spots, a problem with polyurethane wheels under heavy, static loads. The 316 stainless steel fork thrives in harsh environments, resisting rust from chemicals, saltwater, or moisture. The Delrin bearing, made from high-lubricity plastic, rolls smoothly in wet or caustic conditions and resists degradation. While not frictionless, it performs reliably under heavy loads, though it will require slightly more push than precision ball bearings. This caster shines in settings where durability and floor protection are critical. Its flat tread face evenly distributes weight, reducing wear on floors and equipment. The combination of the NX wheel, 316 stainless steel fork, and Delrin bearing ensures long-lasting performance in tough conditions like manufacturing plants or food processing facilities. For custom needs or technical support, contact our engineering team at Caster City or call 800-501-3808.

Technical Details
The NX Polymer Caster Wheel is compression molded and machined for precision. This process keeps the wheel strong under heavy loads, avoiding flat spots or delamination common in polyurethane wheels. The wheel’s straight-sided design maximizes its 1250-pound load capacity. Available in 4”, 5”, and 6” diameters, all 2” wide, the NX wheel offers flexibility for various equipment sizes. Its flat tread face ensures stable contact with the ground, reducing wobble and distributing weight evenly. The SS316-9 fork, made from 316 stainless steel, offers superior corrosion resistance compared to standard steel or 304 stainless steel. It stands up to moisture, chemicals, and saltwater, making it ideal for harsh environments. The Delrin bearing enhances performance in wet or caustic settings, where metal bearings might rust or fail. Its high lubricity ensures smooth rolling, especially when wet, though it may require slightly more effort to start moving under maximum load due to its non-frictionless design. The caster operates in temperatures from -20°F to 180°F, with the NX wheel’s approximate melting point at 500°F. This range suits cold storage or standard indoor environments. The wheel’s 80 Shore D hardness provides durability while protecting smooth surfaces like concrete, tile, or epoxy-coated floors from marks or scratches.

Customization Options
The NX Caster is available in 4”, 5”, and 6” diameters, all 2” wide, with Delrin bearings for consistent performance. For specialized applications, such as extreme temperatures or unique mounting requirements, our engineering team can provide tailored solutions. Contact Caster City or call 800-501-3808 to discuss your needs. Caster City also offers a top lock wheel brake, with pedal on the side of the wheel, also made out of 316 stainless steel as an add-on option for this caster.

Benefits Over Traditional Casters
The NX Caster outperforms traditional metal or polyurethane casters. Metal wheels often scratch or dent floors, while polyurethane wheels can develop flat spots under heavy loads. The NX wheel’s non-marking polymer and compression-molded design eliminate these issues. The 316 stainless steel fork resists corrosion better than standard steel, ensuring longevity in harsh conditions. The Delrin bearing, while not frictionless, excels in wet or chemical environments where metal bearings may fail. This caster’s ability to handle 1250 pounds while protecting floors makes it a top choice for industries needing durability and reliability.

Installation and Maintenance
Installing the NX Caster is simple, with the SS316-9 fork designed for standard mounting plates. Ensure the mounting surface is clean and secure to support the 1250-pound capacity. For maintenance, check the Delrin bearing for wear and clean the wheel to remove debris. In wet or chemical environments, rinse the caster regularly to prevent buildup. This caster comes with a grease fitting in the axle and in the swivel bearing of the caster to grease all moving parts.  For detailed installation or maintenance tips, reach out to Caster City.

Applications

• Marine: Shipboard carts, dockside equipment, saltwater washdown carts
• Chemical processing: Carts for chemical transport, equipment in acidic environments
• Pharmaceutical manufacturing: Cleanroom carts, sterile equipment transport
• Food processing: Carts for meat processing, salt-heavy washdown carts
• Water treatment: Carts in chlorine-rich environments, wastewater facility equipment
• Coastal facilities: Carts for seafood processing, outdoor washdown carts
• Laboratories: Carts for chemical labs, equipment in caustic cleaning areas
