FAQ

Triple Swivel Dolly Base

What is the maximum capacity of the Triple Swivel Dolly Base?

It holds up to 2000 lbs, perfect for heavy theatrical scenery or moving walls.

Does the unplated finish work for bolt-on applications?

Yep, the unplated finish is great for bolt-on setups and takes paint well if you want to customize it.

How do these dollies handle tight spaces?

They’re built with two platforms that rotate independently, using triple-swivel or zero-throw casters, so you can position loads precisely without caster movement.

What makes the ball bearings between the platforms special?

The ball bearings let you turn and position the load smoothly without any caster adjustment, thanks to their setup in a hardened raceway.

How does the turntable work like a lazy Susan?

It has two mounting plates, one above and one below the swivel, with ball bearings for easy rotation, plus a lubrication fitting and zinc-plated finish to resist rust.

What can I use this turntable for?

It’s ideal for workstations, welding tables, and theatrical dollies to move scenery around.

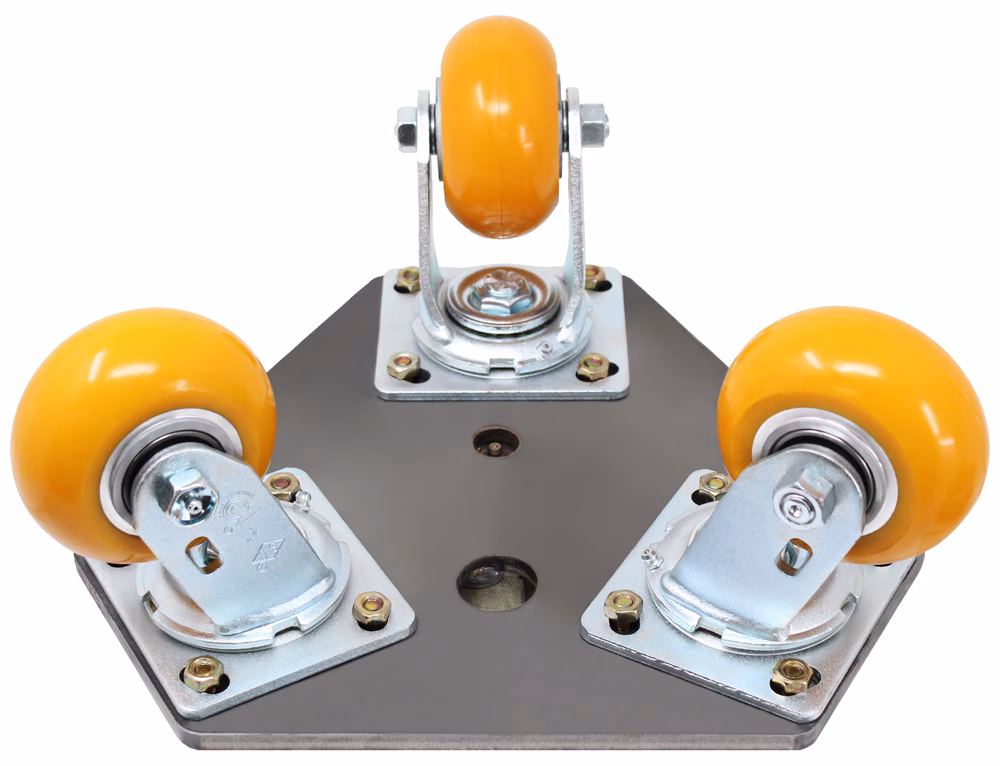

How many plate casters does it use?

It’s designed for three plate casters per base, specifically matching the bolt-hole pattern of Plate Caster Model 9.

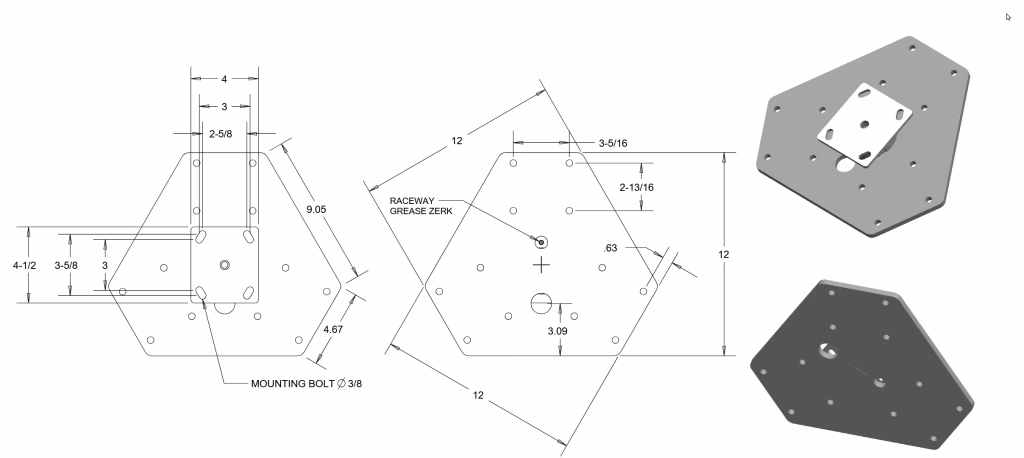

What are the mounting plate dimensions and bolt hole spacing?

The mounting plate is 4″ x 4-1/2″ with bolt hole spacing from 2-5/8” x 3-5/8” to 3” x 3”.

Why is the bottom dolly base larger?

The bigger bottom base holds three plate casters to max out maneuverability for your load.

What are some good applications for this dolly?

It works great for theatrical scenery movement, stage prop positioning, movable set adjustments, portable wall relocation, temporary room divider shifts, exhibition booth changes, event space layouts, and film set equipment moves.
