Download STP FileDownload 2D File4″ High Temperature Phenolic – Model 9 Swivel Caster
$61.55
In Stock
Please select any add ons you require for your caster and if you are selecting multiple option types, add all of the quantity for the first choice and then make your selections for the second, third, fourth, etc… choices. (Example: 2 With Brakes and 2 Without Brakes)
Technical Specifications
Wheel Diameter
4"
Caster City Recommendation
Ollie Recommends!
Non-Marking
Yes
High Temperature Type
Dry Heat
ISO 9001
ISO 9001:2015 Certified
Fork Finish
Zinc Coating
Wheel Width
2"
Wheel Bearing
Roller
Maximum Capacity (lbs)
600 lbs
Overall Height
5-5/8"
Swivel Radius
3-1/2"
Color
Brown
Plate Fastener Type
Mounting Plate, Top Plate
Plate Mounting Type
Top Plate
Weight
4.5 lbs
- Description
- FAQ
- Application Use
- Reviews
- CASTER CITY GUARANTEE
- Measurement Conversion Table
- Articles and How to Guides
Description
The Model 9 swivel casters are our most popular industrial caster for many reasons but largely because of its low cost and varied selection of wheels. Under the mounting plate it has 2 rows of balls that pivot on heat treated raceways. The swivel caster has a bolt and nut center pin welded for hand powered applications and designed to withstand customary abuse. The leg thickness is 1/4”, welded on the inside and out and the center bolt diameter is 5/8”. The metal frames are plated in zinc for rust protection and it has grease fittings for all transportable parts. Model 9 has an extensive selection of wheel brakes and swivel locks for most applications. We have other wheel bearing types and mounting plates available upon request.
DO NOT ORDER SWIVEL LOCK OR RACEWAY SEALS IF YOU ORDER THE TL – TOTAL LOCK BRAKE. THE TL BRAKE WILL NOT WORK WITH EITHER THE SWIVEL LOCK OR RACEWAY SEALS.
Our “TP” high temperature wheels, crafted from fiberglass, phenol resin, and heat-resistant additives, are NSF Listed, RoHS Compliant, and Food Service Approved, designed for 4”, 5”, 6”, and 8” diameters with a 2-inch width for heavy duty industrial casters in model 9, offering up to 1200 lbs capacity per wheel for the 8×2 size at room temperature on smooth floor surfaces in dry high heat environments like bakery ovens, powder coating plants, and dry heat autoclaves. These high heat casters handle continuous operation up to 475°F and can withstand 525°F for 30 minutes, requiring cooling to room temperature afterward to maintain their lifespan. The hard, non-marking surface of these heat caster wheels demands smooth floors, as rough surfaces or obstructions can wear them down, and they must be shielded from direct heat sources like flames to prevent damage, making them ideal for high-temperature, food-safe tasks in model 9 applications.
Engineered for dry high heat only, these “TP” high temperature casters and wheels are not suited for moist heat, where our “NP” high temperature wheels are recommended, but deliver cost-effective performance for model 9 setups in extreme dry heat conditions. Their NSF and Food Service approvals ensure suitability for food processing, while RoHS compliance guarantees eco-friendly materials, supporting heavy loads without marking floors in bakeries or powder coating facilities. By using these heavy duty industrial casters on smooth floors and protecting them from direct heat, model 9 users achieve reliable, high-performance mobility for demanding dry high heat operations.
*This Plate Caster Model 9 contains a High Temperature Phenolic Wheel.

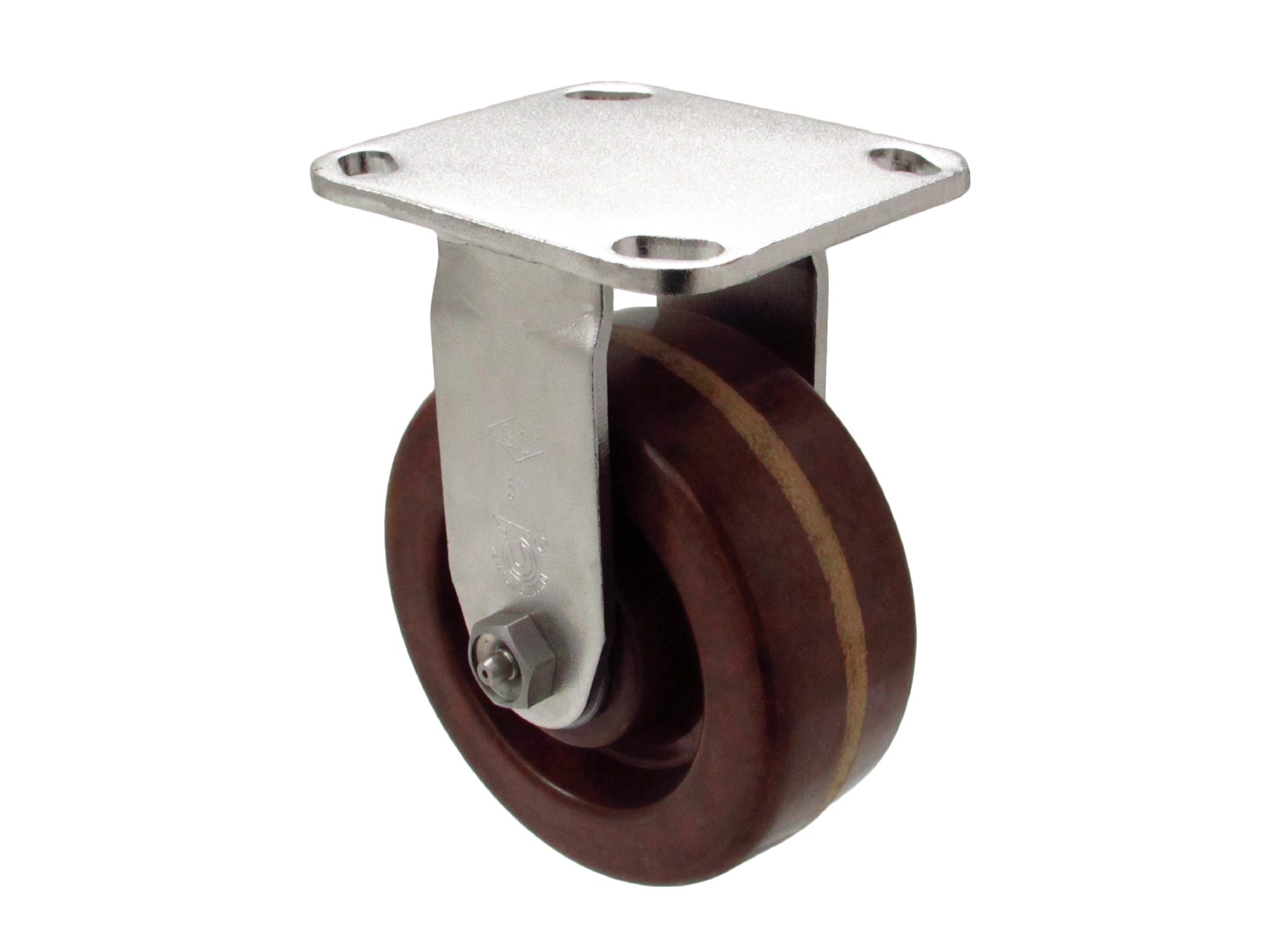

The Photo Displayed on CasterCity.com is the 6” x 2″ Caster Wheel.
For more information and help placing an order, give us a call at 800-501-3808
FAQ
Plate Caster Model 9 with 2-Inch Wide TP High Temp Phenolic Wheel
What makes the Plate Caster Model 9 with a 2-inch wide TP High Temp Phenolic Wheel a good choice for heavy duty casters in high temp dry heat environments?
The Plate Caster Model 9 with a 2-inch wide TP High Temp Phenolic Wheel, crafted from macerated canvas mixed with phenolic resin, offers a hard, non-marking industrial wheel that supports heavy stationary loads without flat spots, ideal for high temperature casters in dry heat settings like foundries or heat treatment facilities.
What materials are used in the TP High Temp Phenolic Wheel in the Plate Caster Model 9 for high temp dry heat casters?
The TP High Temp Phenolic Wheel in the Model 9 high temperature caster is made from macerated canvas mixed with phenolic resin, molded under high pressure and temperature, with a Shore D 95 durometer, mechanically bonded for durability in high temp dry heat applications.
What applications are best suited for the Plate Caster Model 9 with a 2-inch wide TP High Temp Phenolic Wheel as a high temp wheel?
The Model 9 with the TP High Temp Phenolic Wheel excels in high temp dry heat settings like foundries (material transport), heat treatment facilities (annealing equipment), powder coating lines (curing ovens), and steel mills (material handling), where heavy duty casters need to handle heavy loads on smooth floors.
How does the TP High Temp Phenolic Wheel in the Plate Caster Model 9 perform in high temp dry heat environments as an industrial caster wheel?
The TP High Temp Phenolic Wheel in the Model 9 high temperature caster, rated up to 250°F (intermittent to 300°F), withstands impacts and heavy loads up to 1,500 lbs, resisting oil, grease, gasoline, and mild acids, ensuring reliable performance on smooth floors in high temp dry heat settings.
What bearing options are available for the TP High Temp Phenolic Wheel in the Plate Caster Model 9 for high temperature casters?
The 2-inch wide TP High Temp Phenolic Wheel in the Model 9 high temperature caster offers roller bearings, precision sealed ball bearings, delrin bearings, stainless roller bearings, or stainless steel precision sealed ball bearings for smooth operation in high temp dry heat settings.
What’s the temperature range for the TP High Temp Phenolic Wheel in the Plate Caster Model 9 high temperature caster?
The TP High Temp Phenolic Wheel in the Model 9 high temperature caster operates from -40°F to 250°F, with intermittent use up to 300°F, making it a suitable high temp wheel for heavy duty casters in high temp dry heat environments like powder coating lines.
What sizes and load capacities does the TP High Temp Phenolic Wheel in the Plate Caster Model 9 offer for high temperature casters?
The TP High Temp Phenolic Wheel in the Model 9 high temperature caster is available in 4”, 5”, 6”, and 8” diameters (2” wide), supporting up to 1,500 lbs for high temperature caster wheel applications requiring durability in high temp dry heat settings on smooth floors.
Why is the Plate Caster Model 9 with a 2-inch wide TP High Temp Phenolic Wheel a top choice for heavy duty industrial usage in high temp dry heat foundries?
The Model 9 with the TP High Temp Phenolic Wheel is a top choice for heavy duty industrial usage in high temp dry heat foundries, with its non-marking, high temperature phenolic tire resisting wear and delivering over 20 years of duty for high temperature casters on smooth floors in extreme heat.
Application Use
Application Use Plate Industrial Caster Model 9:
The Plate Model 9 is designed for medium to heavy-duty jobs and are built for floor protection, mobility, and ergonomic effectiveness in a variety of industries, such as:
Manufacturing Industry
- Assembly line carts
- Tool carts and cabinets
- Workbenches
- Assembly stations
- Die and mold carts
- Material handling carts
- Engine stands
- Transmission jacks
- Wing assembly jigs
Warehousing and Distribution
- Stock picking carts
- Shipping and receiving carts
- Flatbed carts
- Dollies
- Mobile shelving units
Automotive Industry
- Vehicle assembly line equipment
- Parts transport carts
- Tool chests
- Battery carts
- Mobile diagnostic equipment
Aerospace Industry
- Aircraft maintenance platforms
- Engine transport dollies
- Wing and fuselage assembly jigs
Food Processing and Service
- Ingredient bins
- Mixing bowls on stands
- Oven racks
- Bakery carts
- Kitchen carts
- Serving trolleys
- Laundry carts
Healthcare
- Hospital beds
- Medical carts
- Mobile diagnostic machines
Retail
- Mobile display racks
- Shelving units
- Point-of-purchase displays
- Shopping carts
Construction and Maintenance
- Mobile scaffolds
- Work platforms
- Tool carts
- Generator carts
- Compressor carts
Agriculture
- Farm machinery parts transport carts
- Greenhouse carts
Marine
- Boat mold transport carts
- Deck equipment movement
Data Centers and IT
- Server rack carts
- Mobile cabinets
Entertainment and Events
- Stage equipment carts
- Lighting and sound equipment stands
- Mobile platforms
Laboratories
- Lab carts
- Equipment stands
Printing and Publishing
- Paper roll carts
- Printing press component transport
Textile Industry
- Fabric roll carts
- Sewing machine stands
Chemical Industry
- Drum dollies
- Cylinder carts
HVAC and Electrical
- HVAC equipment carts
- Electrical panel carts
Woodworking and Metalworking
- Mobile worktables
- Saw stands
- Material handling carts
Waste Management
- Waste containers on wheels
- Recycling bins
Fitness Centers
- Mobile weight racks
- Equipment stands
Transportation Hubs
- Baggage carts
- Luggage carts
Cold Storage and Refrigeration
- Refrigerated warehouse carts
- Food processing plant equipment
Our #1 goal is to help you find the best caster and wheels for your needs. If you need help finding the right casters, contact our team of professionals. You can also customize many of our casters with a variety of options such as swivel locks, wheel brakes and zerk fittings. We ship our products from assembly plants in Georgia, Pennsylvania, Virginia, Texas, Nevada and Canada. Whether you’re a one-man shop or a global giant, we can provide you with: We specialize in Business to Business, however, consumer orders are gladly accepted and we can provide you with:
- Fastest Lead Time in the Industry
- Caster performance data.
- Comparative data.
- Customized caster solutions.
- Help with caster solutions.
- Case studies by industry or application.
- Manufacturer and Distributor of over $25 million dollars in Finished Component Parts
- Majority of Orders Processed and Shipped in 2 Days or Less
If you have any questions about your measurements, please call 800-501-3808
