4″ V Groove Glass Filled Nylon Wheel – Model 9 Swivel Caster
$40.00
In Stock
Technical Specifications
Wheel Diameter
4
Wheel Width
2
Wheel Bearing
Precision Sealed
Maximum Capacity (lbs)
500 lbs
Overall Height
5 5/8"
Swivel Radius
3 1/2
Color
Black
Weight
5 lbs
Description
DO NOT ORDER SWIVEL LOCK OR RACEWAY SEALS IF YOU ORDER THE TL – TOTAL LOCK BRAKE. THE TL BRAKE WILL NOT WORK WITH EITHER THE SWIVEL LOCK OR RACEWAY SEALS.
V-Groove swivel casters require a Swivel Lock in order to go backwards when on Angle Iron Track.
The Model 9 swivel casters are our most popular industrial caster for many reasons but largely because of its low cost and assorted selection of wheels. Under the mounting plate it has 2 rows of balls that pivot on heat treated raceways. The swivel caster has a bolt and nut center pin welded to withstand normal abuse in a manually moved application. The leg thickness is 1/4”, welded on the inside and out and the center bolt diameter is 5/8”. The metal frames are plated in zinc for rust prevention and it has grease fittings for all transportable parts. Model 9 has a broad selection of wheel brakes and swivel locks for most applications. We have other wheel bearing types and mounting plates available upon request.

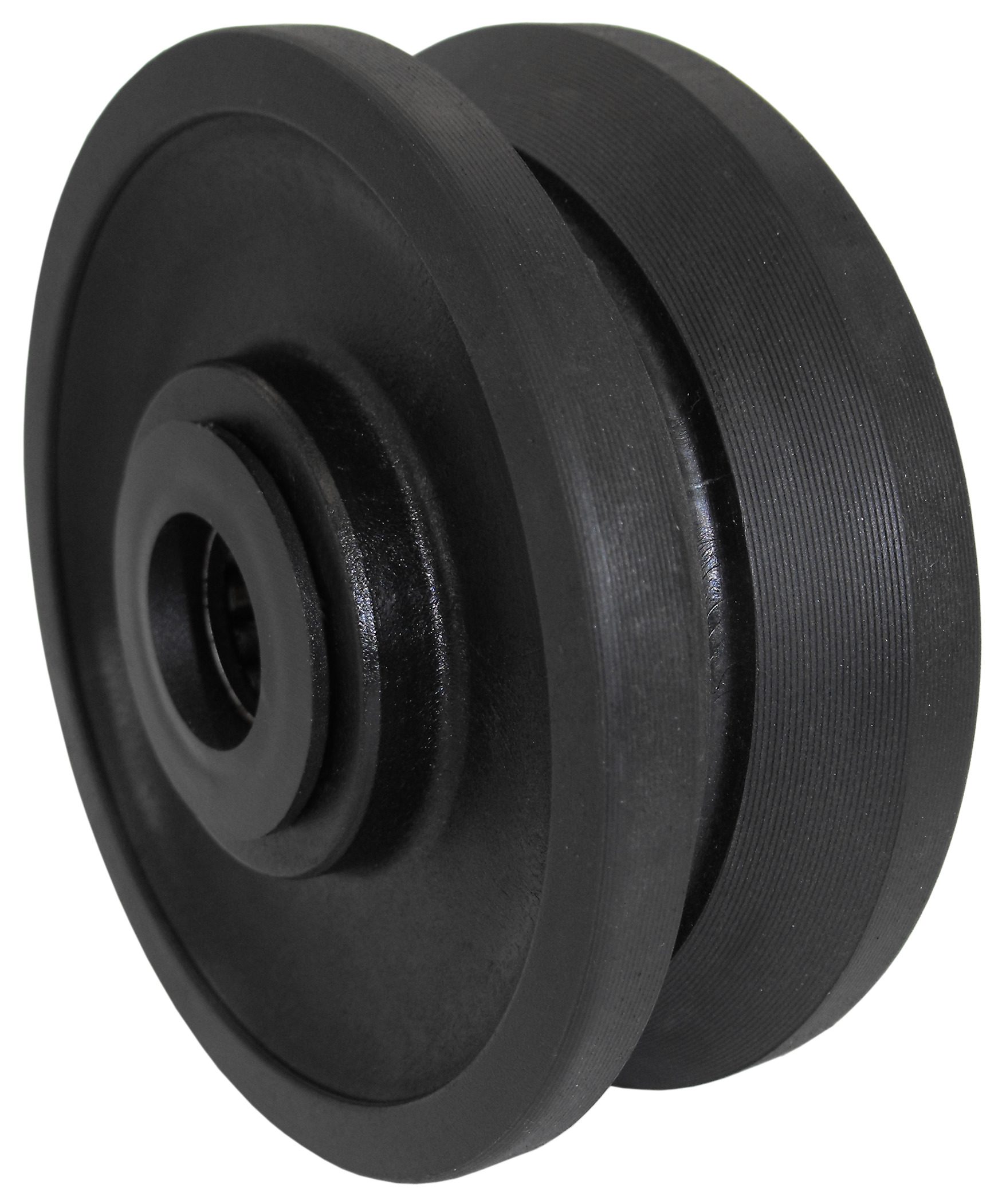

*This Plate Caster Model 9 contains a V Groove Glass Filled Nylon Swivel Wheel.
The Photo Displayed on CasterCity.com is the 6” Caster Wheel.
For more information and help placing an order, give us a call at 800-501-3808
Sample of the Plate Caster Model 9:
Our #1 goal is to help you find the best caster and wheels for your needs. If you need help finding the right casters, contact our team of professionals. You can also customize many of our casters with a variety of options such as swivel locks, wheel brakes and zerk fittings. We ship our products from assembly plants in Georgia, Pennsylvania, Virginia, Texas, Nevada and Canada. Whether you’re a one-man shop or a global giant, we can provide you with: We specialize in Business to Business, however, consumer orders are gladly accepted and we can provide you with:
- Fastest Lead Time in the Industry
- Caster performance data.
- Comparative data.
- Customized caster solutions.
- Help with caster solutions.
- Case studies by industry or application.
- Manufacturer and Distributor of over $25 million dollars in Finished Component Parts
- Majority of Orders Processed and Shipped in 2 Days or Less
If you have any questions about your measurements, please call 800-501-3808
