Name: Dumpster Caster - 6" x 2" Gray Iron Dumpster Wheel - Model 9 Rigid Caster
SKU: DUMPSTERCASTER-9CL6X2-R
Availability: InStock

Volume Pricing on Inquiry. Call us: 800-501-3808

Most of our casters are assembled and dispatched within 24-48 hours.

Click to Download CAD Files

Download STP File Download 2D File

Dumpster Caster – 6″ x 2″ Gray Iron Dumpster Wheel – Model 9 Rigid Caster

$42.80

PN: DUMPSTERCASTER-9CL6X2-R

In Stock

Please select any add ons you require for your caster and if you are selecting multiple option types, add all of the quantity for the first choice and then make your selections for the second, third, fourth, etc… choices. (Example: 2 With Brakes and 2 Without Brakes)

SKU: DUMPSTERCASTER-9CL6X2-RCategories: Industry Specific Casters, Plate Casters, Rigid Casters, Model 9 - Up To 1,200lbs each - Plate Size 4" x 4-1/2", Model 9 Rigid, Dumpster

Technical Specifications

Wheel Diameter

Caster City Recommendation

Ollie Recommends!

ISO 9001

ISO 9001:2015 Certified

Fork Finish

Zinc Coating

Wheel Width

Wheel Bearing

Roller

Maximum Capacity (lbs)

1000 lbs

Overall Height

7-1/2"

Plate Fastener Type

Mounting Plate, Top Plate

Plate Mounting Type

Top Plate

Weight

10.25 lbs

Description

Dumpster Casters made from Model 9 rigid dumpster casters are the matching plate caster for the Swivel Model 9 Caster. When manually moving equipment supported by 4 swivel casters it can be difficult to control the direction you are pushing or pulling. Rigid casters support in controlling equipment being moved in straight line travel. Equipment with both rigid casters can not move sideways. Rigid Casters are usually installed at the opposite end of the push handle and contain 2 legs perpendicular to the mounting plate. Leg thickness is 1/4”. The axle diameter is 1/2” long and is designed to use wheels with a hub width of 2 7/16”. This caster is constructed from stamped steel. Rigids can carry more weight than swivel casters because they do not have an offset. Other mounting plate sizes and wheel bearing types are available on request.

Gray Iron industrial caster wheels from Caster City are a cost-effective and reliable choice for light-duty applications, offering a low initial cost and maintenance ease. These wheels, equipped with a lubrication fitting in the hub, won’t go flat and are perfect for stationary loads or infrequent movement, like light-duty warehouse carts, stationary machinery, or display stands. Available in 2” and 3” widths with diameters from 3” to 12”, they feature roller bearings or sealed ball bearings and can handle temperatures up to 400°F. Their chemical resistance and inability to develop flat spots make them ideal for stable, low-impact setups where budget matters.

However, Gray Iron wheels aren’t suited for heavy-duty or abusive conditions due to their limited capacity and impact strength compared to Ductile Steel or Forged Steel wheels. They can damage factory floors under heavy loads, so they’re best used on steel plates, in channels, or as V-groove wheels on inverted angle iron tracks. For heavy-duty carts or applications needing floor protection, consider switching to Ductile Steel, Forged Steel, or polyurethane wheels. Gray Iron wheels shine in controlled environments but fall short where high durability or frequent movement is required.

*This Plate Caster Model 9 contains the Gray Iron with Roller Bearing in the Wheel.

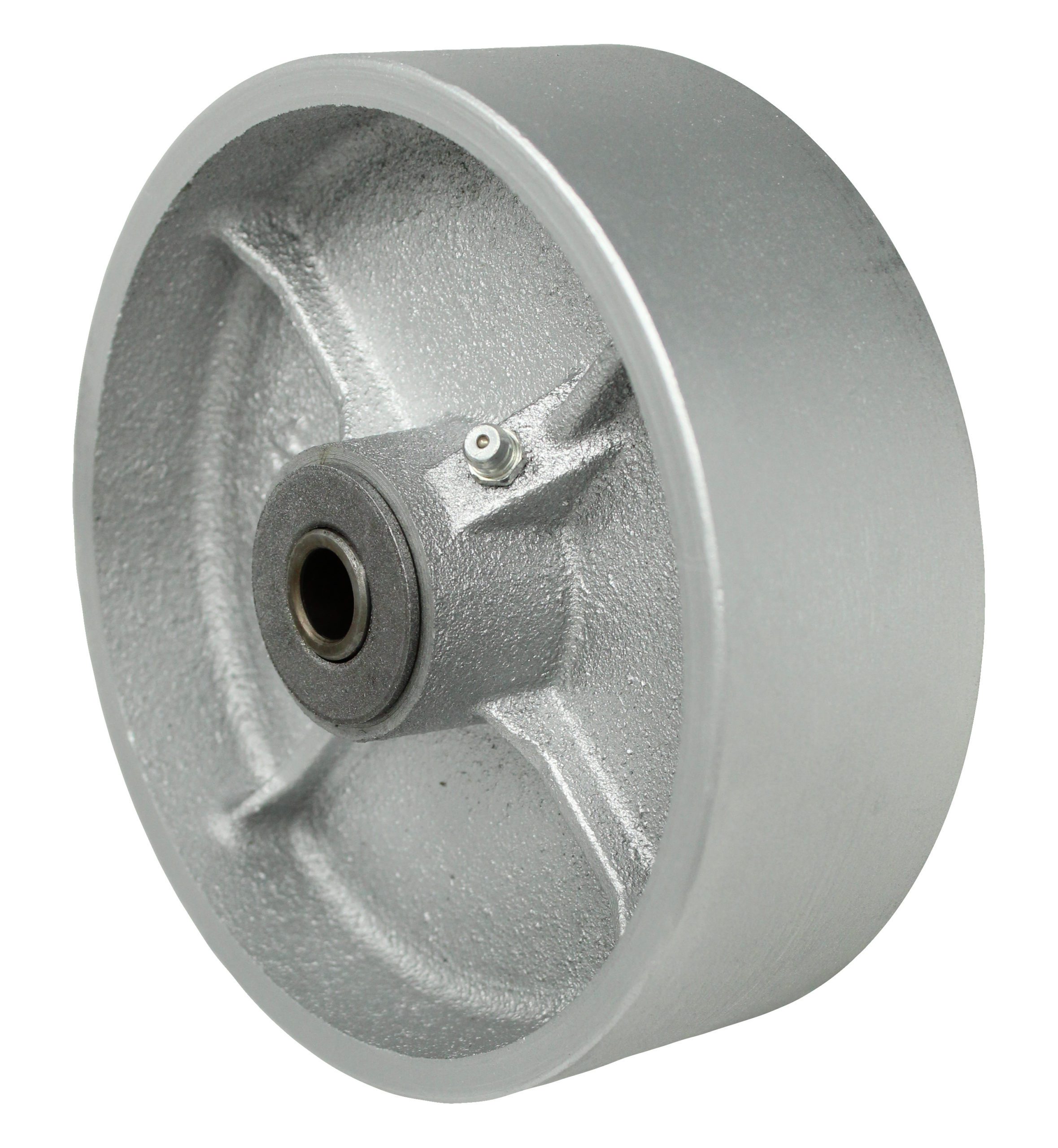

The Photo Displayed on CasterCity.com is the 6″ Caster Wheel.

This caster is available in Stainless Steel – click here. This is an excellent caster for wet or corrosive applications if your total weight exceeds 1000lbs. It comes with the same large selection of wheels, some of which are also NSF and ROHS compliant.

For more information and help placing an order, give us a call at 800-501-3808.

Gray Iron Caster Wheels from Caster City

The Gray Iron Industrial Caster Wheels we engineer at Caster City are a low-cost solution primarily chosen for their affordability, offering a budget-friendly option for applications where cost is a priority and floor protection is not a concern. Available in 2” and 3” widths with diameters ranging from 3” to 12”, these wheels are equipped with a lubrication fitting in the hub for easy maintenance and come with either roller bearings or sealed precision ball bearings for reliable performance. Designed to support heavy loads without developing flat spots, Gray Iron wheels are a practical choice for static or low-mobility applications in industrial settings, capable of withstanding temperatures up to 400°F depending on the application.

While Gray Iron Caster Wheels provide an economical alternative, they are not recommended for severe or abusive applications due to their lower strength compared to steel wheels. For only a modest increase in cost, we recommend our steel wheels, which offer nearly twice the strength and durability. Gray Iron wheels will damage most factory floors under heavy loads, so they are typically used on steel plating, in metal channels, or as V-grooved wheels rolling on inverted angle iron tracks to protect costly flooring. These wheels are best suited for environments where budget constraints outweigh the need for enhanced performance or floor preservation.

Ideal for cost-conscious applications requiring reliable load support, Gray Iron Industrial Caster Wheels deliver functionality at a low initial cost. However, for superior strength and longevity, we encourage customers to consider our steel wheel options. Contact Caster City to discuss your needs or for custom configurations of our Gray Iron Caster Wheels, ensuring you get the most cost-effective solution for your industrial requirements.

FAQ

What is the Plate Caster Model 9 for Dumpster Caster Usage?

The Plate Caster Model 9 is a heavy-duty industrial caster with a 4” x

4-1/2” mounting plate, designed for manually moved applications, including dumpsters, with a capacity of up to 1,250 lbs per caster depending on the wheel. Featuring a cold-forged steel construction with 1/4” thick welded legs, a 5/8” welded kingpin, and a 1/2” axle with lock nut, it’s built for durability. Available in standard zinc-plated or 304 stainless steel versions, it’s ideal for waste management, with NSF/ROHS-compliant stainless options for wet or corrosive environments.

What environments and applications work best for the Plate Caster Model 9 in dumpster usage?

The Model 9 excels in waste management for dumpsters and trash bins in commercial, industrial, and institutional settings like restaurants, warehouses, retail stores, and hospitals. Its robust construction handles heavy waste loads on smooth or slightly uneven surfaces, such as concrete or asphalt. The stainless steel version is perfect for wet, corrosive environments like food processing or outdoor waste areas exposed to moisture, ensuring hygiene and durability in washdown conditions.

What is the load capacity of the Plate Caster Model 9 for dumpster usage?

Each Model 9 caster supports up to 1,250 lbs, depending on the wheel, for a set of four casters handling up to 5,000 lbs total. It’s rated for manual movement on smooth floors, with no inclines over 3 degrees and speeds under 3 mph. Capacity varies by wheel type (e.g., 600 lbs for 8” rubber, 1,250 lbs for 8” polyurethane); avoid prolonged standing loads at max capacity to prevent flat spotting.

What wheel options are available for the Plate Caster Model 9 in dumpster usage?

The Model 9 offers 2” wide wheels in 4”, 5”, 6”, and 8” diameters, including moldon rubber, soft gray rubber, neoprene, high-capacity rubber, polyurethane (various colors), polyolefin, nylon, phenolic, high-temp glass-filled nylon/phenolic, V-groove, water-resistant polyurethane, and solid stainless steel. For dumpsters, rubber or polyurethane wheels are common for shock absorption and floor protection; stainless wheels suit corrosive waste environments. Many wheels are NSF/ROHS compliant.

What bearing options are available for the Plate Caster Model 9 in dumpster usage?

Bearing options include roller bearings (R), Delrin bearings (D), plain bore (P), ball bearings (BB), precision sealed ball bearings (PS), stainless precision sealed ball bearings (SPS), and stainless steel roller bearings (SSR). For dumpsters, stainless bearings (SPS, SSR) are recommended for wet or corrosive waste areas to resist rust, while roller or sealed bearings suit heavy loads on smooth surfaces.

What is the TB Top Lock Brake option for the Plate Caster Model 9 in dumpster usage?

The TB – Top Lock Brake (pedal on side of wheel) locks the wheel from rolling, suitable for high-temperature applications and securing dumpsters during loading. It’s not designed for inclines and is unavailable with V-groove wheels. Stainless versions include a stainless TB brake for washdown areas.

What is the TL Total Locking Brake option for the Plate Caster Model 9 in dumpster usage?

The TL – Total Locking Brake (pedal behind wheel) prevents both the wheel and swivel from moving, providing maximum stability for dumpsters in commercial or industrial settings. It’s not for inclines. Stainless versions include a stainless TL brake for corrosive environments.

What is the UFCB Universal Bolt On Face Contact Brake for the Plate Caster Model 9 in dumpster usage?

The UFCB – Bolt On Universal Face Contact Brake is a field-installable, cost-effective option that locks the wheel by pressing against its face, ideal for retrofitting dumpsters in waste management. It’s not for inclines or V-groove wheels. Stainless versions suit washdown areas.

What are the swivel lock options for the Plate Caster Model 9 in dumpster usage?

The Model 9 offers two swivel lock options: SL4 – Welded Four Position Swivel Lock (converts swivel to rigid in four positions for straight-line travel) and BSL4-FO – Bolt On Four Position Swivel Lock (field-installable for straight-line stability). These are perfect for moving dumpsters long distances or on ramps in waste facilities, locking only the swivel, not the wheel. Stainless versions available for corrosive settings.

How do I maintain the Plate Caster Model 9 for dumpster usage?

Lubricate swivel bearing and axle via fittings regularly to ensure smooth movement, especially after washdowns in wet environments. Clean debris from wheels, particularly in outdoor or waste-heavy areas, to prevent buildup. Avoid shock loads, impacts, or sideways dragging. For stainless models, rinse after washdowns to maintain corrosion resistance. Inspect for wear on wheels and brakes to ensure reliable dumpster performance.

Where can I buy the Plate Caster Model 9 for dumpster usage?

Purchase the Model 9 from Caster City’s website at www.castercity.com or call 800-501-3808 for assistance. Lead time is typically 2 days for fast delivery, with options in zinc-plated or 304 stainless steel.

How does the Plate Caster Model 9 compare to Model G15 for dumpster usage?

The Model 9 supports up to 1,250 lbs per caster and is ideal for manual dumpster movement, with a welded kingpin for durability. The Model G15, with a kingpinless design, supports up to 1,500 lbs and handles powered towing better, offering higher capacities for some wheels (up to 2,500 lbs). Choose Model 9 for cost-effective manual waste applications; G15 for heavier or powered setups. Call 800-501-3808 for guidance.

What’s the difference between swivel and rigid versions of the Plate Caster Model 9 for dumpster usage?

Swivel Model 9 casters offer full rotation for maneuvering heavy dumpsters in tight spaces, with a cold-forged top plate and 5/8” kingpin. Rigid versions don’t swivel, providing straight-line stability for long-distance travel or ramps—install opposite push handle for control. Both use a 4” x 4-1/2” mounting plate, 1/2” axle for 2-7/16” hub, and are suited for manual use. Rigid may handle slightly higher loads but rated the same.

What is the mounting plate specification for the Plate Caster Model 9 in dumpster usage?

The Model 9 has a 4” x 4-1/2” mounting plate with bolt hole spacing of 2-5/8” x 3-5/8” to 3” x 3”, using 3/8” bolts (not included). Don’t drill holes until receipt to ensure proper fit. This industry-standard plate provides stability for heavy dumpster loads.

What are the overall heights for the Plate Caster Model 9 with different wheel diameters?

Overall heights: 4” wheel – 5-5/8”; 5” wheel – 6-1/2”; 6” wheel – 7-1/2”; 8” wheel – 9-1/2”. Swivel radius: 3-1/2” (4”), 4” (5”), 4-1/2” (6”), 6-1/4” (8”), increasing to 6-1/2” or 7-1/2” with TL brake. These heights suit most dumpster designs.

What construction details make the Plate Caster Model 9 durable for dumpster usage?

The Model 9 features a cold-forged steel top plate and yoke base with 1/4” thick welded legs, a 5/8” welded kingpin, and a 1/2” axle with lock nut. Zinc plating resists rust in general use; stainless steel (304) versions withstand corrosive waste or washdowns, with NSF/ROHS compliance for hygiene.

Can the Plate Caster Model 9 handle wet or corrosive environments for dumpster usage?

Yes, the stainless steel Model 9 (SS-9) with 304 stainless steel resists rust and chemicals in wet or corrosive environments like food waste areas or outdoor dumpsters. Pair with stainless bearings (SPS, SSR) or water-resistant wheels (e.g., polyurethane, stainless steel) for maximum durability. Zinc-plated versions suit dry or mildly humid conditions.

What installation tips are there for the Plate Caster Model 9 in dumpster usage?

Mount with at least 4 bolts (3/8”, not included) on the 4” x 4-1/2” plate, ensuring rigid casters are parallel and swivels level. Don’t drill holes until receipt. Avoid welding that distorts the kingpin or sideways dragging. Test on smooth floors; reduce capacity for inclines. Rinse stainless models after washdowns to maintain corrosion resistance.

Why choose the Stainless Steel Plate Caster Model 9 for dumpster usage?

The SS-9, made from 304 stainless steel, is ideal for dumpsters in wet, corrosive, or washdown environments like food processing or coastal areas. NSF/ROHS compliant with matching wheels, it ensures hygiene and durability, handling up to 1,250 lbs per caster with corrosion-resistant brakes and locks.

What applications is the Plate Caster Model 9 best for in dumpster usage?

The Model 9 is ideal for manually moved dumpsters and waste bins in various settings, including:

Commercial kitchens for food waste bins (stainless for washdowns).
Restaurants for trash and recycling containers.
Warehouses for industrial waste carts.
Retail stores for backroom waste handling.
Hospitals for medical waste bins (stainless for hygiene).
Manufacturing plants for scrap material bins.
Construction sites for debris containers on smooth surfaces.
Municipal facilities for public waste receptacles.
Food processing plants for organic waste bins (stainless for corrosion).
Hotels and resorts for large waste containers.
Schools and universities for cafeteria waste bins.
Recycling centers for sorting and transport carts.
Marine environments for dockside waste bins (stainless for saltwater).
Chemical plants for hazardous waste containers (stainless, chemical-resistant wheels).
Outdoor waste areas in coastal or wet climates (stainless version).

The Model 9’s durable construction ensures reliable performance for heavy waste loads, with stainless options for corrosive or hygienic requirements and brakes/locks for secure positioning during loading or unloading.

What are the technical specifications for the Plate Caster Model 9 for dumpster usage?

Wheel Diameter	Overall Height	Swivel Radius (Standard/TL Brake)	Axle Diameter	Leg Thickness	Capacity Range (per Caster)
4”	5-5/8”	3-1/2” / 6-1/2”	1/2”	1/4”	250-1,250 lbs
5”	6-1/2”	4” / 6-1/2”	1/2”	1/4”	300-1,250 lbs
6”	7-1/2”	4-1/2” / 7-1/2”	1/2”	1/4”	350-1,250 lbs
8”	9-1/2”	6-1/4” / 7-1/2”	1/2”	1/4”	450-1,250 lbs

Mounting plate: 4” x 4-1/2” (bolt spacing 2-5/8” x 3-5/8” to 3” x 3”). Hub length: 2-7/16”. Stainless version NSF/ROHS compliant.
