Name: 3-1/4" Nylon Wheel - Model 9 Low Profile Swivel Caster
SKU: 9MK3.25X2-S
Availability: InStock

Volume Pricing on Inquiry. Call us: 800-501-3808

Most of our casters are assembled and dispatched within 24-48 hours.

3-1/4″ Nylon Wheel – Model 9 Low Profile Swivel Caster

$35.76

PN: 9MK3.25X2-S

In Stock

Please select any add ons you require for your caster and if you are selecting multiple option types, add all of the quantity for the first choice and then make your selections for the second, third, fourth, etc… choices. (Example: 2 With Brakes and 2 Without Brakes)

SKU: 9MK3.25X2-SCategories: Plate Casters, Swivel Casters, Model 9 - Up To 1,200lbs each - Plate Size 4" x 4-1/2", Cambrake, Model 9 Optional Bearings

Technical Specifications

Wheel Diameter

3.25"

ISO 9001

ISO 9001:2015 Certified

Fork Finish

Zinc Coating

Caster City Recommendation

Ollie Recommends!

Non-Marking

Yes

Wheel Width

Wheel Bearing

Precision Sealed Ball Bearings, Roller

Maximum Capacity (lbs)

900 lbs

Overall Height

4-1/4"

Swivel Radius

3-1/2"

Color

Black

Weight

5 lbs

Description

The Model 9 Swivel Caster is the best selling industrial plate caster because of the economical price and wide selection of available wheels. Beneath the mounting plate, 2 rows of ball bearings rotate on heat treated raceways to provide smooth swiveling action. The nut and bolt center pin is welded to resist typical abuse in hand operated applications. The kingpin bolt diameter measures 5/8″ and the legs are 1/4″ thick, welded on both the inside and outside. The 1/2″ diameter axle accommodates wheels with a 2 7/16″ hub width. Made from stamped steel, the metal frames are zinc plated for rust resistance. Lubrication fittings are provided for all moveable parts. A broad selection of wheel brakes and swivel locks is available for most applications. Ideal for plant maintenance carts, tool cribs, and die storage racks. Additional mounting plate sizes and wheel bearing types are available on request. This caster is also manufactured in 304 Stainless Steel for environments exposed to moisture or chemicals.

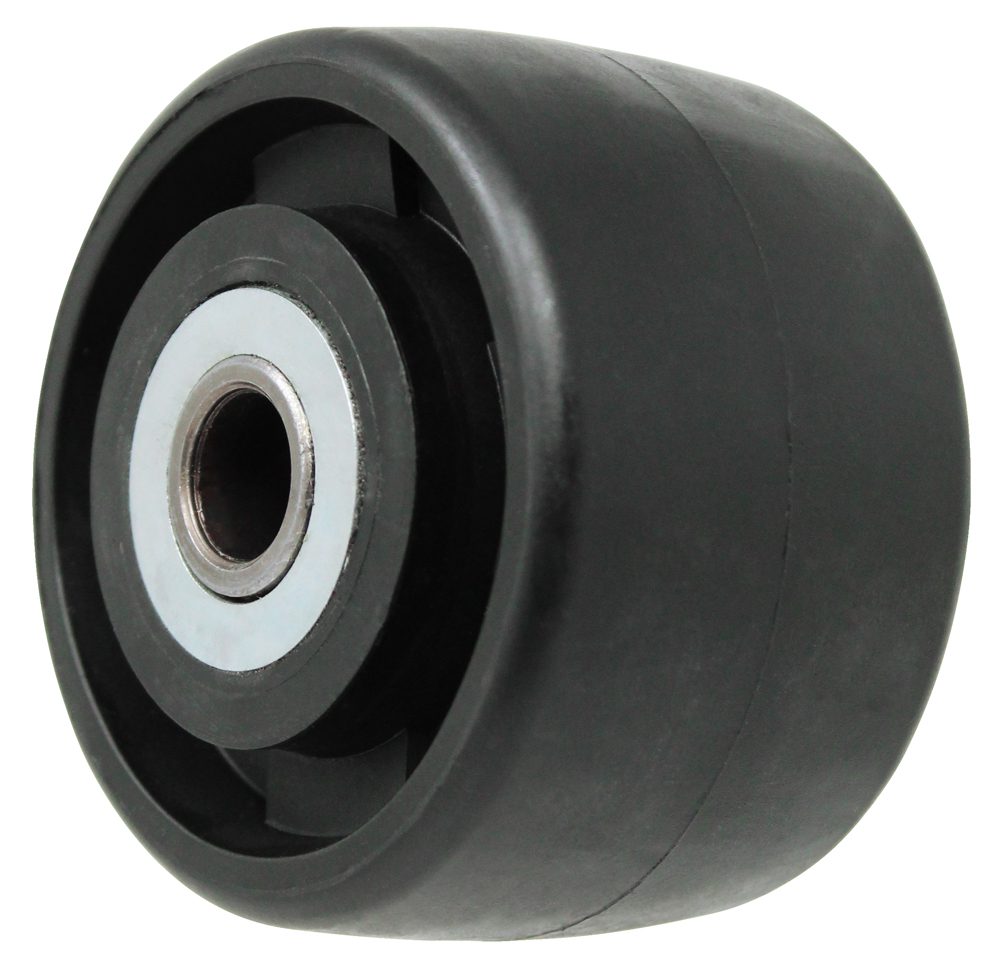

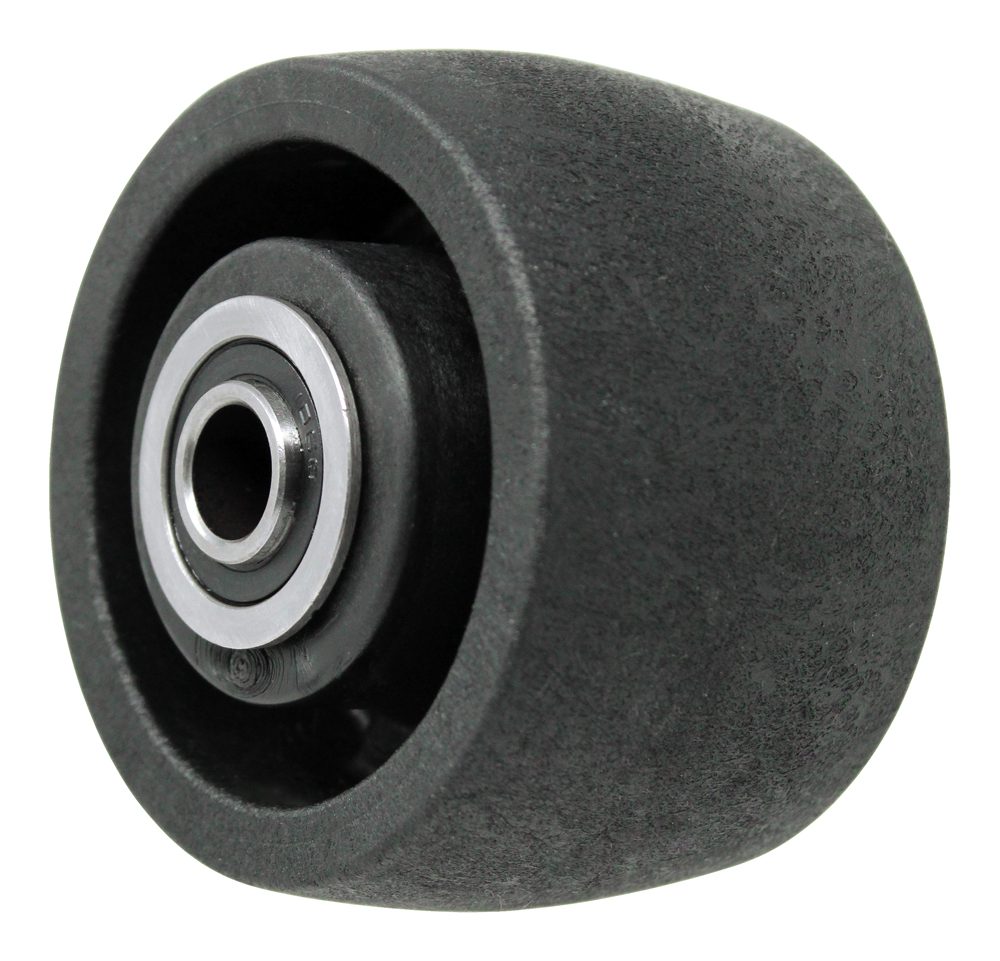

Nylon caster wheels are an excellent choice for supporting heavy loads without using a metal wheel since they can not develop a flat spot. This solid wheel is injection molded from nylon 6 and is 100% washable, steam cleanable, and impervious to water. Nylon is an excellent wheel to choose when you must select a wheel that will resist chemicals, acids, bases, greases, oils, blood, salt, brine, and more. The nylon industrial caster wheel can withstand impact loads and shocks. This caster wheel offers high abrasion resistance and a hard tread with a slight crown that rolls very easily. The non-marking tread has a Durometer of 75D. This caster wheel can come equipped with Delrin bearings or plain bore. Ideal for food processing plants, packaging facilities, and wet environments.

*This Plate Caster Model 9 contains the 3 1/4″ Nylon Swivel Wheel.

This caster is available in Stainless Steel – click here. This is an excellent caster for wet or corrosive applications if your total weight exceeds 1000lbs. It comes with the same large selection of wheels, some of which are also NSF and ROHS compliant.

For more information and help placing an order, give us a call at 800-501-3808.

Nylon Caster Wheels from Caster City

FAQ

Industrial Caster Model 9 with MK Nylon Wheel

What is the Industrial Caster Model 9 with MK Nylon Wheel built for?

This heavy duty industrial caster supports up to 1,200 lbs per caster, perfect for tough settings like manufacturing, labs, or food processing where you need strong casters and wheels that resist chemicals and protect floors.

Why pick the MK Nylon Wheel for the Model 9 industrial caster?

The 2-inch wide MK Nylon Wheel on this heavy duty caster fights off chemicals, acids, bases, oils, blood, salt, and brine, takes shocks and impacts, and won’t get flat spots, keeping your floors safe.

What sizes and load capacities does the MK Nylon Wheel on the Model 9 caster come in?

This industrial caster’s 2-inch wide MK Nylon Wheel comes in 3.25”, 4”, 5”, 6”, and 8” diameters; the 6×2 and 8×2 heavy duty casters hold 1,200 lbs each, matching the bracket’s max, while smaller sizes hold less.

What bearing types can I get with the MK Nylon Wheel on this heavy duty industrial caster?

You can choose plain bore, precision sealed ball bearings, roller bearings, stainless steel ball bearings, or stainless steel roller bearings for this caster, depending on what your setup needs.

What’s good about the Model 9 swivel caster with the MK Nylon Wheel?

The Model 9 swivel caster, also in 304 stainless steel, gives you 360-degree movement, fights rust, and holds 1,200 lbs (for 6×2 and 8×2 wheels), making it great for wet or harsh spots while keeping floors safe.

Why use the Model 9 rigid caster with the MK Nylon Wheel for straight-line movement?

The Model 9 rigid caster keeps equipment moving straight, holds 1,200 lbs (for 6×2 and 8×2 wheels), and works with the MK Nylon Wheel to handle chemicals and impacts in tough environments.

Can the Model 9 industrial caster with MK Nylon Wheel handle wet environments?

Yes, the stainless steel Model 9 caster with the MK Nylon Wheel resists corrosion and chemicals, fitting wet or hygiene-focused spots like food processing, and meets NSF and ROHS standards.

What brake options does the Model 9 swivel caster with MK Nylon Wheel have?

This swivel caster has a total lock brake (TL) and swivel lock, but the TL brake won’t work with swivel locks or raceway seals because of how it’s built.

How do you mount the MK Nylon Wheel on the Model 9 heavy duty caster?

The 2-inch wide MK Nylon Wheel, with a 2 7/16” hub width, fits on the Model 9 caster’s 1/2” diameter axle and 4 x 4-1/2” mounting plate, working with standard equipment for easy setup.
