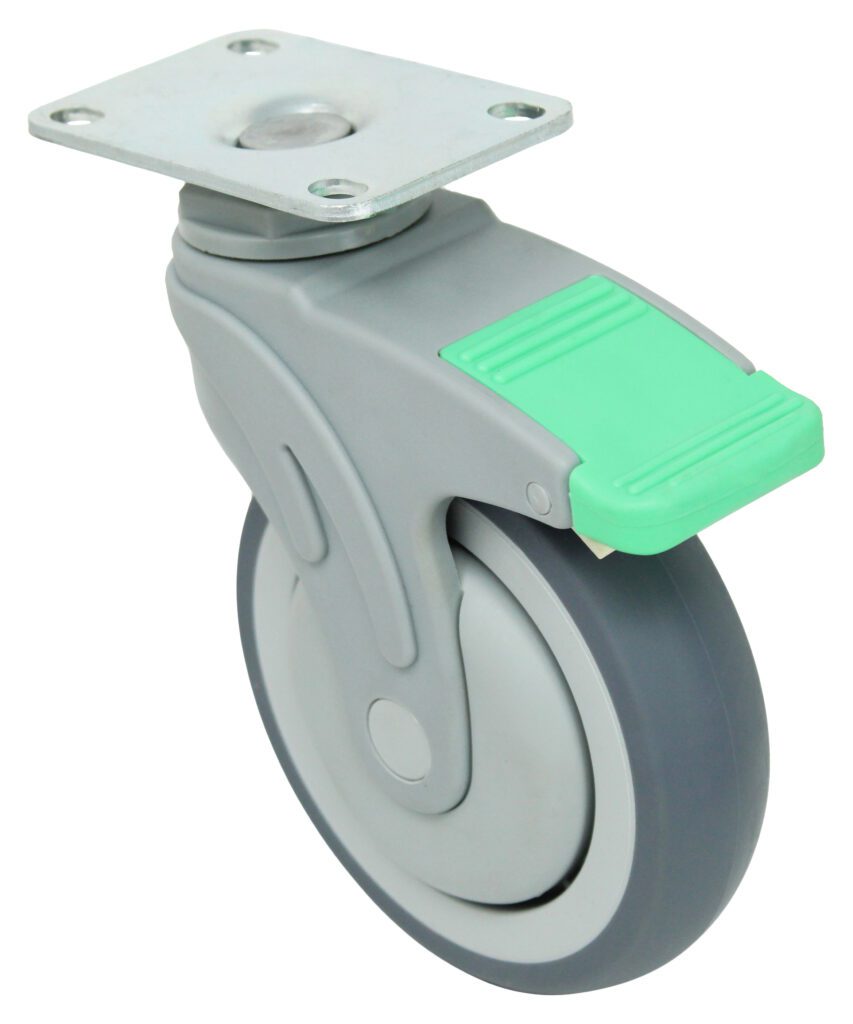

Medical Caster – 5″ Gray Soft Rubber Wheel – Plastic Body Directional/Swivel Lock
$41.73
In Stock
Please select any add ons you require for your caster and if you are selecting multiple option types, add all of the quantity for the first choice and then make your selections for the second, third, fourth, etc… choices. (Example: 2 With Brakes and 2 Without Brakes)
Technical Specifications
Caster City Recommendation
Ollie Recommends!
Durometer
75A ± 5
ISO 9001
ISO 9001:2015 Certified
Non-Marking
Yes
Wheel Diameter
5"
Wheel Width
1.25"
Wheel Bearing
Precision Sealed Ball Bearings
Maximum Capacity (lbs)
300 lbs
Swivel Radius
4-1/2"
Overall Height
6-7/8"
Weight
2.2 lbs
Description
The EPS Series caster is constructed from a composite polymer “nylon” body that is well-suited for medical applications with key features like:
This is the Directional Lock / Swivel Lock variant of our polymer body casters. We also construct this with a total lock and plain-swivel variant for any of your needs.
We currently only offer our Directional Lock / Swivel Lock casters with the plate mount you see in the photos. If you are an OEM seeking a large volume of Directional Lock / Swivel Lock casters made from a polymer / nylon body , please reach out to us.
For Medical Equipment:
– Non-marking wheels protect hospital flooring
– Sealed bearings prevent contamination
– Multiple locking options for stability
For Hospital Beds:
– Strong but lightweight construction
– Total lock option for patient safety
– Sealed precision bearings for smooth transport
– Reinforced nylon withstands frequent cleaning
For Mobile Medical Equipment:
– Directional lock helps with long corridor transport
– Chemical resistance handles disinfectants
– Modern design matches medical aesthetic
– Multiple mounting options for various equipment
The EPS Series composite polymer casters deliver superior performance for medical equipment applications. Featuring injection-molded reinforced nylon construction, these casters combine strength with lightweight maneuverability while resisting corrosion and harsh cleaning chemicals. Available with swivel, total-lock, or directional-lock options, each caster includes sealed precision bearings in both raceway and wheel for smooth, maintenance-free operation. The modern design and non-marking wheels make these casters ideal for hospital beds, medical carts, and mobile diagnostic equipment where reliability and floor protection are essential.
FAQ
Frequently Asked Questions for Caster Model E Medical Caster
What is the plate size and bolt hole pattern for the Caster Model E medical caster?
The Caster Model E medical caster uses the Model 3 mounting plate, measuring 2-3/8″ x 3-5/8″. The bolt hole pattern is 1-3/4″ x 2-7/8″, with a 5/16″ bolt hole diameter, ensuring a secure fit for your equipment.
What is the maximum capacity of the Caster Model E medical caster?
The Caster Model E medical caster supports up to 300 lbs per caster, but for manual movement, cut the capacity by 50% and use the largest wheel diameter for easier rolling.
Does the Caster Model E medical caster offer plate or stem mounting?
Yes, the Caster Model E medical caster comes with either a plate or stem mounting option, so you can pick what suits your setup best.
Is the Caster Model E medical caster suitable for hospital equipment?
Definitely, the Caster Model E medical caster is designed for hospital equipment, featuring non-marking soft gray rubber wheels that ensure a quiet, cushioned ride and protect floors in sensitive hospital settings.
Can I use the Caster Model E medical caster in a pharmaceutical lab?
Yes, the Caster Model E medical caster is ideal for pharmaceutical labs, with non-marking soft gray rubber wheels that resist many chemicals and solvents, plus sealed bearings for zero maintenance.
How do I know if the Caster Model E medical caster will fit my cart?
Compare your cart’s mounting needs to the Model 3 plate specs: 2-3/8″ x 3-5/8″ plate size, 1-3/4″ x 2-7/8″ bolt hole pattern, and 5/16″ bolt holes. The Caster Model E medical caster also offers plate or stem options for flexibility.
Will the Caster Model E medical caster leave marks on my floors?
No, the Caster Model E medical caster has non-marking soft gray rubber wheels that protect expensive floors, perfect for hospitals, labs, and other settings where floor care matters.
Can I leave the Caster Model E medical caster under a load for a long time?
Not recommended. The soft gray rubber wheels on the Caster Model E medical caster may develop flat spots or a permanent “set” if left under load for extended periods, so avoid prolonged standing loads.
What maintenance does the Caster Model E medical caster require?
The Caster Model E medical caster is maintenance-free, thanks to its precision-sealed ball bearings in the swivel and wheel, so you don’t need to worry about upkeep.
Is the Caster Model E medical caster good for manual pushing in a food service setting?
Yes, the Caster Model E medical caster works well for food service carts, but since the soft gray rubber wheels require more effort under load, reduce capacity by 50% and choose the largest wheel diameter for smoother pushing.
