Download STP FileDownload 2D File6″ Black Polyolefin Swivel Wheel – Model 9 Swivel Caster
$38.24
In Stock
Please select any add ons you require for your caster and if you are selecting multiple option types, add all of the quantity for the first choice and then make your selections for the second, third, fourth, etc… choices. (Example: 2 With Brakes and 2 Without Brakes)
Technical Specifications
Wheel Diameter
6"
Caster City Recommendation
Ollie Recommends!
Non-Marking
Yes
ISO 9001
ISO 9001:2015 Certified
Fork Finish
Zinc Coating
Wheel Width
2"
Wheel Bearing
Roller
Maximum Capacity (lbs)
700 lbs
Overall Height
7-1/2"
Swivel Radius
4-7/8"
Color
Black
Plate Fastener Type
Mounting Plate, Top Plate
Plate Mounting Type
Top Plate
Weight
6.25 lbs
- Description
- Application Use
- Reviews
- CASTER CITY GUARANTEE
- Measurement Conversion Table
- Articles and How to Guides
Description
Model 9 Swivel Casters are the most popular industrial plate caster available because of the low initial cost and wide assortment of wheel types. The swivel system has 2 rows of balls rotating on heat treated raceways beneath the mounting plate for consistent performance. A welded nut and bolt center pin resists normal abuse in manually operated applications. The kingpin bolt is 5/8″ in diameter and the 1/4″ thick legs are welded on the inside and out. A 1/2″ diameter axle is built to use wheels with a 2 7/16″ hub width. The stamped steel caster is zinc plated for rust resistance and includes lubrication fittings for all moveable parts. Model 9 offers a broad selection of wheel brakes and swivel locks for most applications. Ideal for water treatment plants, wastewater facilities, and environmental remediation equipment. Other mounting plate sizes and bearing types are available on request. This caster is also available in 304 Stainless Steel for wet or chemically aggressive applications.
This Polyolefin wheel is a solid one-piece injection molded wheel available in heavy duty flat tread or crown tread donut shaped configurations. Polyolefin is an industrial plastic material designed to resist chemicals, water, and mild acids. Bearing options include plain bore, sealed ball bearings, roller bearings, or Delrin bearings. This hard material requires a smooth floor surface. Non-marking wheel with low initial cost. Cannot develop flat spots when parked for prolonged periods. Impervious to sterilization processes. Use above 32°F and below 180°F; not for freezers or heat applications like rack washers. Ideal for supermarkets, warehouses, and manufacturing plants.
DO NOT ORDER SWIVEL LOCK OR RACEWAY SEALS IF YOU ORDER THE TL – TOTAL LOCK BRAKE. THE TL BRAKE WILL NOT WORK WITH EITHER THE SWIVEL LOCK OR RACEWAY SEALS.
*This Plate Caster Model 9 contains the Black Polyolefin Swivel Wheel. Roller Bearing in the Wheel.

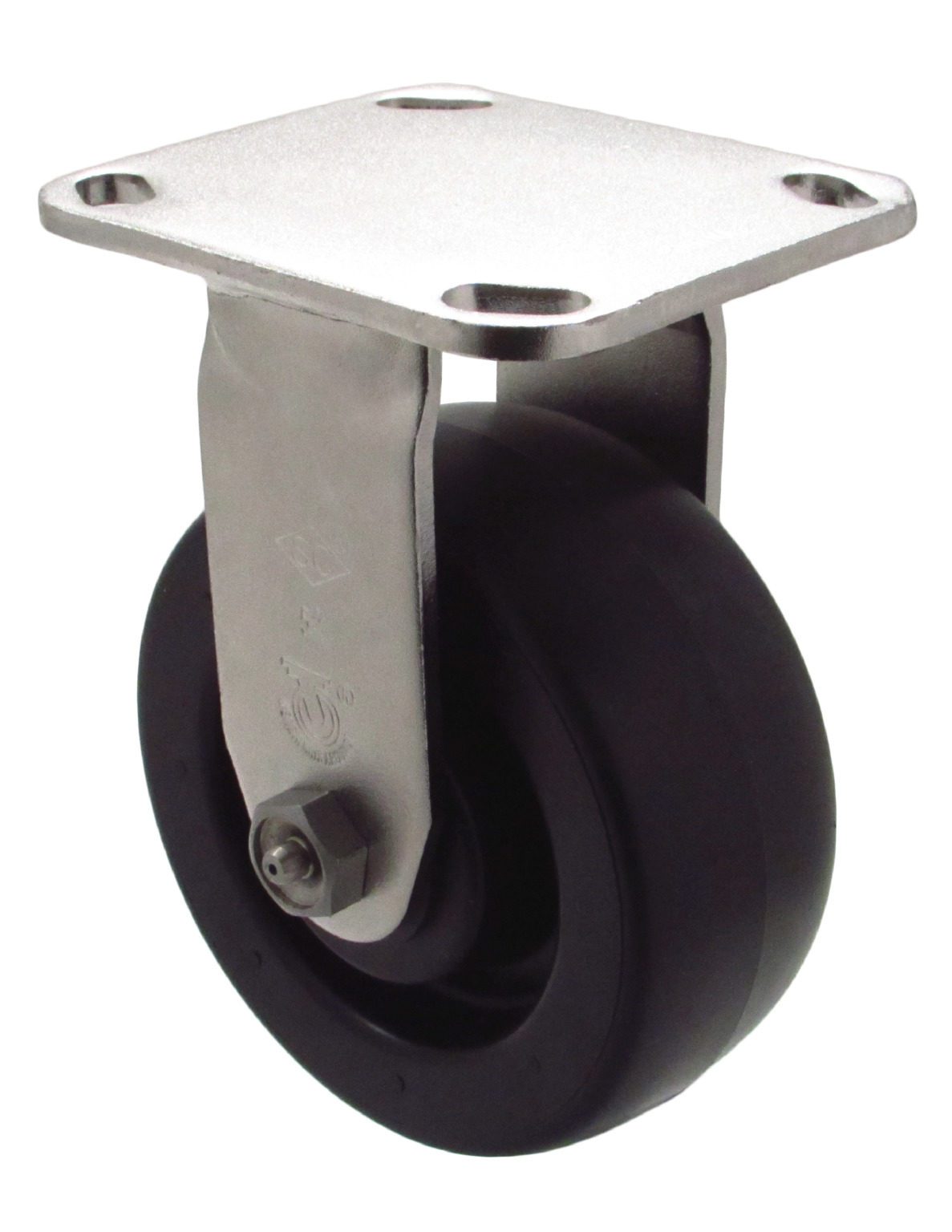

The Photo Displayed on CasterCity.com is the 4″ Caster Wheel.
This caster is available in Stainless Steel – click here. This is an excellent caster for wet or corrosive applications if your total weight exceeds 1000lbs. It comes with the same large selection of wheels, some of which are also NSF and ROHS compliant.
For more information and help placing an order, give us a call at 800-501-3808.
Application Use
Application Use Plate Industrial Caster Model 9:
The Plate Model 9 is designed for medium to heavy-duty jobs and are built for floor protection, mobility, and ergonomic effectiveness in a variety of industries, such as:
Manufacturing Industry
- Assembly line carts
