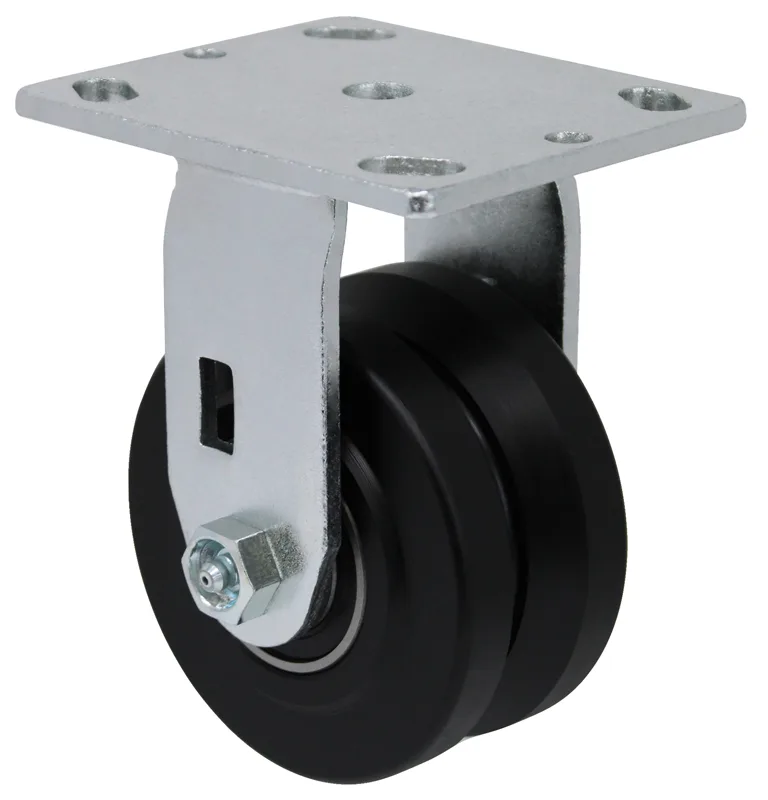

Download STP FileDownload 2D File6″ V-Groove Wheel – Ultra High Capacity Polymer – Model 9 Swivel Caster
$76.00
In Stock
Please select any add ons you require for your caster and if you are selecting multiple option types, add all of the quantity for the first choice and then make your selections for the second, third, fourth, etc… choices. (Example: 2 With Brakes and 2 Without Brakes)
Technical Specifications
Wheel Diameter
6"
Quiet Operation
Low Noise
Caster City Recommendation
Ollie Recommends!
ISO 9001
ISO 9001:2015 Certified
Fork Finish
Zinc Coating
Wheel Width
2"
Wheel Bearing
Precision Sealed Ball Bearings
Maximum Capacity (lbs)
1250 lbs
Overall Height
7-1/2"
Swivel Radius
4-1/2"
Color
Black
Plate Fastener Type
Mounting Plate, Top Plate
Plate Mounting Type
Top Plate
Groove Depth
7/16"
Groove Width
7/8"
Weight
7.5 lbs
- Description
- FAQ
- Application Use
- Reviews
- CASTER CITY GUARANTEE
- Measurement Conversion Table
- Articles and How to Guides
Description
V-Groove swivel casters require a Swivel Lock in order to go backwards when on Angle Iron Track.
Plate Caster Model 9 Swivel is the go-to industrial caster across many industries because of its low upfront cost and the widest wheel selection available. The swivel features 2 rows of balls rotating on heat treated raceways under the mounting plate. A nut and bolt center pin is welded to handle normal abuse in a manually moved application. The kingpin bolt diameter is 5/8″ and the legs are 1/4″ thick, welded on the inside and out. The 1/2″ diameter axle is designed to use wheels with a 2 7/16″ hub width. This caster is constructed from stamped steel with zinc plated frames for rust resistance. Lubrication fittings for all moveable parts are included. Model 9 comes with a broad selection of wheel brakes and swivel locks for most applications. Ideal for steel service centers, welding shops, and heavy equipment repair facilities. Other mounting plate sizes and wheel bearing types are available on request. This caster can also be ordered in 304 Stainless Steel for wet or corrosive applications.
The VX V-Groove Ultra High Capacity Polymer wheel rolls on inverted angle iron track, using the V-groove profile to keep equipment aligned and on course. The relief groove at the base of the “V” distributes the load evenly across both faces of the angle iron, preventing uneven wear on the track. This wheel is built from the same NX compression-molded polymer found in our flat-tread ultra high capacity lineup, with a Shore hardness of 80D, a temperature range of -20°F to 250°F, and full resistance to chemicals, corrosion, and moisture. Compression molding means the VX wheel will not develop flat spots when equipment sits parked on track for days, weeks, or longer. A major advantage over traditional metal V-groove wheels is noise. The VX runs substantially quieter than gray iron or forged steel V-groove alternatives while actually supporting greater loads than gray iron options. The entire wheel is non-metallic, which is a requirement in applications involving spark-sensitive environments, electrical conductivity concerns, or facilities where metal wheels are prohibited for sanitary or regulatory reasons. When the equipment is off the track, the wide tread surface on each side of the V-groove provides stable rolling on smooth floors. Elevated track keeps the wheels above floor debris that can interfere with caster performance.
FAQ
Zinc-Plated Total Locking Plate Caster Model 9 with 2-Inch Wide VS Ductile Steel V-Groove Wheel
What material is the VS Ductile Steel V-Groove Wheel made from in the Zinc-Plated Total Locking Plate Caster Model 9?
The VS Ductile Steel V-Groove Wheel in the Model 9 industrial plate caster is made from ductile steel, offering higher ductility and tensile strength than gray iron wheels for exceptional durability and impact resistance in demanding settings.
What applications are best for the heavy-duty total locking caster with VS Ductile Steel V-Groove Wheels in institutional settings?
The heavy-duty total locking caster with VS Ductile Steel V-Groove Wheels is perfect for automotive manufacturing, aerospace assembly, and heavy manufacturing in institutional settings, where a plate mount caster guides equipment like carts or machinery on inverted angle iron tracks for precise movement in dry environments, such as assembly lines or steel mills.
What bearing type comes with the VS Ductile Steel V-Groove Wheel in the heavy-duty total locking caster?
The VS Ductile Steel V-Groove Wheel in the heavy-duty total locking caster comes standard with straight roller bearings, allowing 1/16” total end play for smooth rolling on tracks or smooth floors in institutional applications.
Can the VS Ductile Steel V-Groove Wheel in the heavy-duty industrial caster handle rough floors or abusive conditions?
Yes, the VS Ductile Steel V-Groove Wheel in the heavy-duty industrial caster can handle abusive conditions like shock loads, impacts, and overloads due to its ductile steel construction, but it will destroy rough floors faster because they are already unsmooth and being beaten down by a steel wheel.
Are the zinc-plated casters with VS Ductile Steel V-Groove Wheels good for standing loads?
The zinc-plated casters with VS Ductile Steel V-Groove Wheels can handle standing loads better than rubber or polyurethane wheels, as they won’t develop flat spots, but it’s still best to avoid prolonged static loads to ensure longevity.
How do I protect the VS Ductile Steel V-Groove Wheel in the Zinc-Plated Total Locking Plate Caster Model 9 from damage?
Keep the VS Ductile Steel V-Groove Wheel in the Model 9 industrial plate caster free from exposure to corrosive conditions or washdowns, which can affect the zinc-plated steel frame’s performance in dry settings, and ensure proper track alignment to prevent binding or derailment.
Do the VS Ductile Steel V-Groove Wheels in the heavy-duty total locking caster leave marks on floors in institutional settings?
Yes, the VS Ductile Steel V-Groove Wheels in the heavy-duty total locking caster can harm a floor, so they should be used on steel plating, metal channels, or angle iron tracks to protect expensive flooring in institutional settings.
Why are the heavy-duty total locking casters with VS Ductile Steel V-Groove Wheels good for guided movement in dry settings?
The heavy-duty total locking casters with VS Ductile Steel V-Groove Wheels are ideal for guided movement in dry settings because they roll smoothly on inverted angle iron tracks, ensuring precise motion for applications like assembly lines or heavy manufacturing, with the zinc-plated assembly providing limited rust resistance, making them a durable choice for institutional applications.
What’s the load capacity and temperature range for the VS Ductile Steel V-Groove Wheel in the industrial plate caster, and how do I handle high-temperature applications?
The VS Ductile Steel V-Groove Wheel in the industrial plate caster holds up to 1200 lbs per wheel at room temperature and can withstand temperatures up to 700°F with bronze bearings, but consult Caster City for applications requiring extended high-temperature exposure.
How does the Total Locking Brake (TL) option on the Model 9 industrial plate caster with VS Ductile Steel V-Groove Wheels enhance safety in manufacturing settings?
The Total Locking Brake (TL) option on the Model 9 industrial plate caster locks both the wheel and swivel simultaneously, completely immobilizing the equipment—like a cart or assembly line fixture—preventing any movement during critical tasks such as loading heavy machinery or assembling parts, ensuring safety by eliminating the risk of unintended motion in manufacturing environments.
What is the benefit of the Top Lock Brake (TB) option on the Model 9 industrial plate caster with VS Ductile Steel V-Groove Wheels in institutional settings?
The Top Lock Brake (TB) option on the Model 9 industrial plate caster locks only the wheel, allowing controlled swiveling while keeping the wheel fixed, which is beneficial in institutional settings like manufacturing plants where directional adjustment on tracks is needed without rolling, ensuring stability during tasks like setup or maintenance.
How does the UFCB Face Contact Brake option on the Model 9 industrial plate caster with VS Ductile Steel V-Groove Wheels improve functionality in industrial settings?
The UFCB Face Contact Brake option on the Model 9 industrial plate caster securely stops the wheel by applying direct pressure to the tread, providing reliable braking on smooth floors or tracks in industrial settings like steel mills, ensuring equipment stays in place during heavy load handling for enhanced safety and control.
What makes the Swivel Lock option on the Model 9 industrial plate caster with VS Ductile Steel V-Groove Wheels useful for directional control in assembly lines?
The Swivel Lock option on the Model 9 industrial plate caster fixes the swivel in one direction, providing directional control for straight-line movement on assembly lines, ensuring precise travel paths for carts or fixtures on angle iron tracks, reducing the risk of deviation in production environments.
What makes the Model 9 heavy-duty industrial caster a trusted choice for institutional applications in dry settings?
The Model 9 heavy-duty industrial caster ensures reliability in institutional dry settings through its stamped steel construction, zinc-plated rust resistance, and versatile brake options like TL, TB, UFCB, and Swivel Locks, providing long-lasting performance for heavy-duty guided tasks in manufacturing, assembly lines, or warehouses, making it a trusted choice for safety-focused applications.
How does the Model 9 heavy-duty industrial caster enhance stability for manufacturing or assembly line equipment in institutional settings?
The Model 9 heavy-duty industrial caster enhances stability for manufacturing or assembly line equipment by using double ball bearing raceways for smooth swiveling, a durable construction for longevity, and brake options like TL, TB, UFCB, and Swivel Locks to secure equipment—like carts or fixtures—firmly in place during loading, unloading, or setup on tracks in institutional settings, ensuring safety in high-demand environments.
How can I contact Caster City for more information or to request 2D cut sheets, data sheets, or 3D CAD files for the Model 9 industrial plate caster with VS Ductile Steel V-Groove Wheels?
For more information or to request 2D cut sheets, data sheets, or 3D CAD files for the Model 9 industrial plate caster with VS Ductile Steel V-Groove Wheels, contact Caster City at 800-501-3808 or email sales@castercity.com.
Application Use
Application Use Plate Industrial Caster Model 9:
The Plate Model 9 is designed for medium to heavy-duty jobs and are built for floor protection, mobility, and ergonomic effectiveness in a variety of industries, such as:
Manufacturing Industry
- Assembly line carts
- Tool carts and cabinets
- Workbenches
- Assembly stations
- Die and mold carts
- Material handling carts
- Engine stands
- Transmission jacks
- Wing assembly jigs
Warehousing and Distribution
- Stock picking carts
- Shipping and receiving carts
- Flatbed carts
- Dollies
- Mobile shelving units
Automotive Industry
- Vehicle assembly line equipment
- Parts transport carts
- Tool chests
- Battery carts
- Mobile diagnostic equipment
Aerospace Industry
- Aircraft maintenance platforms
- Engine transport dollies
- Wing and fuselage assembly jigs
Food Processing and Service
- Ingredient bins
- Mixing bowls on stands
- Oven racks
- Bakery carts
- Kitchen carts
- Serving trolleys
- Laundry carts
Healthcare
- Hospital beds
- Medical carts
- Mobile diagnostic machines
Retail
- Mobile display racks
- Shelving units
- Point-of-purchase displays
- Shopping carts
Construction and Maintenance
- Mobile scaffolds
- Work platforms
- Tool carts
- Generator carts
- Compressor carts
Agriculture
- Farm machinery parts transport carts
- Greenhouse carts
Marine
- Boat mold transport carts
- Deck equipment movement
Data Centers and IT
- Server rack carts
- Mobile cabinets
Entertainment and Events
- Stage equipment carts
- Lighting and sound equipment stands
- Mobile platforms
Laboratories
- Lab carts
- Equipment stands
Printing and Publishing
- Paper roll carts
- Printing press component transport
Textile Industry
- Fabric roll carts
- Sewing machine stands
Chemical Industry
- Drum dollies
- Cylinder carts
HVAC and Electrical
- HVAC equipment carts
- Electrical panel carts
Woodworking and Metalworking
- Mobile worktables
- Saw stands
- Material handling carts
Waste Management
- Waste containers on wheels
- Recycling bins
Fitness Centers
- Mobile weight racks
- Equipment stands
Transportation Hubs
- Baggage carts
- Luggage carts
Cold Storage and Refrigeration
- Refrigerated warehouse carts
- Food processing plant equipment
