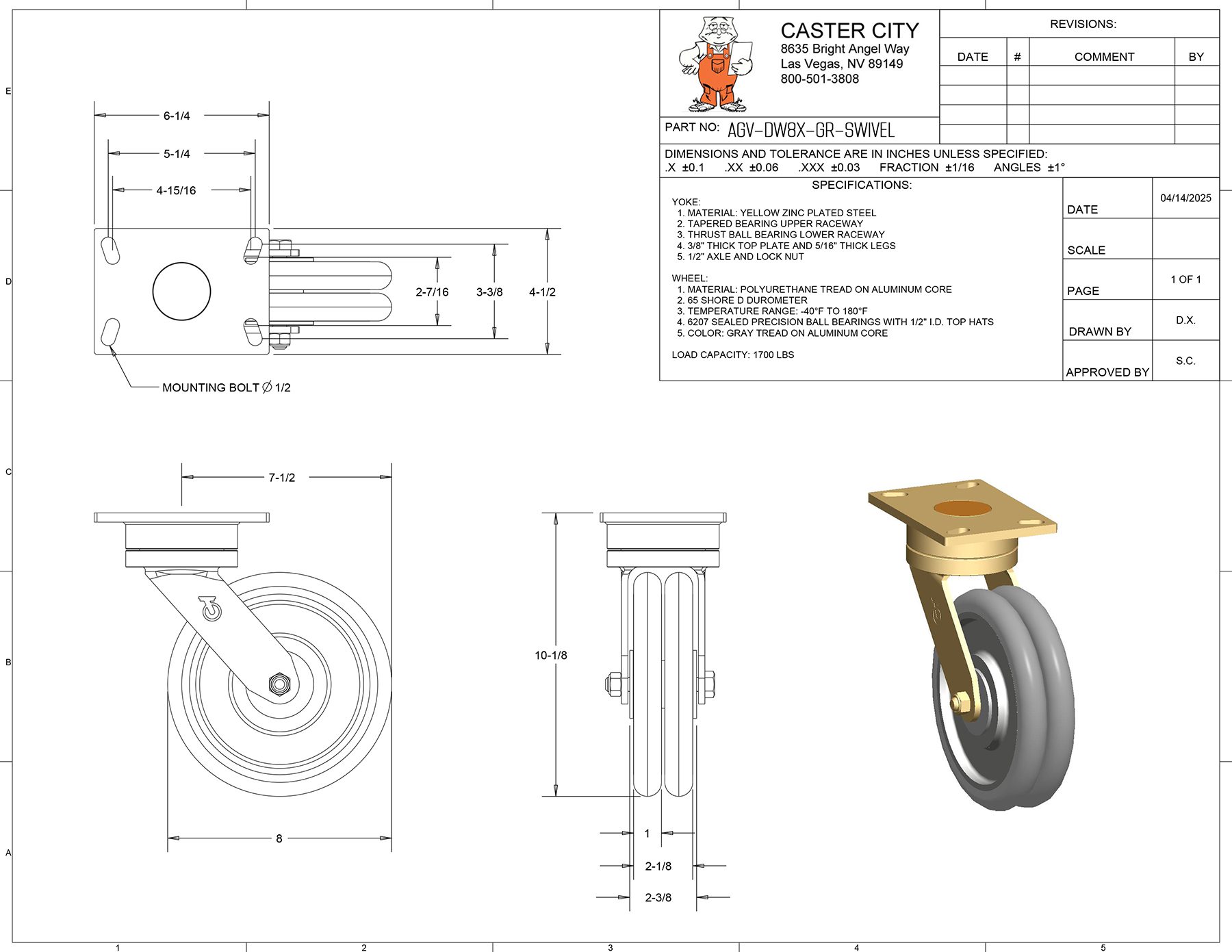

Technical Specifications
Overall Height
10-1/8"
ISO 9001
ISO 9001:2015 Certified
Swivel Radius
7-1/2"
Maximum Capacity (lbs)
1700 lbs
Durometer
65D ± 5
Color
Gray
Wheel Diameter
8"
Wheel Width
1" wide wheel - x2
Weight
14 lbs
Description
The AGV High Performance Swivel Caster with 8 Inch Gray Polyurethane (65D) Dual Wheels is engineered for smooth movement, reduced energy use, and long service life in automated guided vehicles and other powered equipment. Its kingpinless swivel design eliminates the center-bolt friction common in standard casters, allowing effortless rotation even under heavy loads. By removing that friction point, this caster cuts swivel resistance by more than 80 percent, helping AGV motors run cooler and extending battery life through every shift.
Each unit features two independent 8-inch wheels made from hard 65D gray polyurethane bonded to aluminum hubs. This dual-wheel layout distributes weight evenly and allows each wheel to rotate at its own speed during turns, reducing drag and drawbar pull by up to 40 percent. The result is smoother steering, better control, and easier starts. The hard polyurethane tread resists deflection and heat buildup, while the aluminum hubs act as built-in heat sinks to protect the bond and extend wheel life up to four times longer than softer materials. Together, these features improve battery efficiency, extend uptime, and keep your AGV fleet working reliably.
Precision sealed ball bearings make this caster completely maintenance-free. Each bearing is permanently lubricated, delivering quiet, consistent operation without downtime or greasing schedules. The non-marking gray tread protects finished floors and leaves no residue, which makes this model suitable for cleanroom, aerospace, and assembly environments. It supports loads up to 1,700 pounds and performs reliably in temperatures from -20°F to 240°F. The corrosion-resistant yellow zinc chromate finish keeps it looking clean and professional even after years of use.
In practical terms, this caster helps operations move faster and with less effort. Automated vehicles, towline systems, and production carts all benefit from the lower swivel force, improved heat management, and reduced battery drain. Workers notice easier maneuvering, while maintenance teams appreciate the reliability and lack of service requirements. Over time, the savings from reduced energy use and fewer replacements make this one of the most cost-effective caster upgrades available.
If your goal is to improve efficiency, minimize downtime, and extend the life of your AGV or material handling system, this caster is a proven choice that works.
To order or request a detailed load analysis, call Caster City at 1-800-501-3808 or email one of our sales techs directly sales@castercity.com.
Smarter movement begins with smarter components. Order Today.
FAQ
Frequently Asked Questions about the AGV Kingpinless High Performance Swivel Caster with Extended Long Lead
What is the load capacity of the AGV-DW8X-GR-SWIVEL caster?
The caster has a maximum load capacity of 1,700 lbs, making it ideal for heavy-duty applications in aerospace and automotive production.
What are the wheel specifications of this caster?
It features dual 8″ gray polyurethane wheels with a Shore hardness of 70-75D. Each wheel has a 1″ wide crown tread, bonded to aluminum hubs.
How does the crowned tread improve performance?
The crowned tread reduces rolling resistance, allowing smoother towline runs and easier movement, which enhances efficiency in AGV systems.
What types of bearings are used in this caster?
It includes precision sealed ball bearings (6207) in the wheels for reduced starting force, tapered roller bearings on the upper raceway for axial thrust, and thrust ball bearings on the lower raceway for heavy-load stability.
What is the mounting plate size?
The mounting plate measures 4-1/2″ x 6-1/4″, with a flexible bolt pattern for easy and secure installation.
What is the swivel radius?
The swivel radius is 7-½”, enabling agile navigation in tight spaces.
What are the advantages of the kingpinless swivel design?
The kingpinless design improves durability and load distribution, ensuring reliable performance during high-speed AGV operations.
How does the extended long lead feature benefit AGVs?
The extended long lead reduces the effort required to swivel, enhancing maneuverability and reducing strain on AGV systems.
Is this caster suitable for indoor and outdoor use?
Yes, it performs well across manufacturing floors, logistics hubs, and outdoor towline routes due to its robust design and corrosion-resistant finish.
Which industries use this caster?
It’s widely used in aerospace, automotive production, and high-traffic warehouses for its precision and durability.
What are the benefits of the dual wheel design?
The dual wheels enable differential action for easier turning and act as heatsinks, dissipating heat via aluminum hubs during long shifts.
How does this caster reduce AGV battery drain?
The harder 65D polyurethane wheels and crowned tread minimize rolling resistance and tread contact with the floor, lowering energy consumption and extending battery life.
What is the caster’s finish?
It features a corrosion-resistant yellow zinc finish, offering both durability and a distinguished appearance.
Does this caster require maintenance?
No, it comes with maintenance-free bearings, ensuring zero upkeep.
How can I order this caster?
To order or request a quote, contact Caster City at 1-800-501-3808.
