Download STP FileDownload 2D File12″ x 2.50″ Phenolic Swivel Wheel – Model 50
$216.88
In Stock
Please select any add ons you require for your caster and if you are selecting multiple option types, add all of the quantity for the first choice and then make your selections for the second, third, fourth, etc… choices. (Example: 2 With Brakes and 2 Without Brakes)
Technical Specifications
Kingpinless
Yes
Caster City Recommendation
Ollie Recommends!
Non-Marking
Yes
Wheel Diameter
12
Wheel Width
2 1/2
Wheel Bearing
Roller
Maximum Capacity (lbs)
3000 lbs
Overall Height
15 1/2"
Swivel Radius
10 1/32
Color
Black
Plate Zinc Swivel Lock Code
SL4
Plate Zinc Brake Code
FCB
Plate Fastener Type
Mounting Plate, Top Plate
Plate Mounting Type
Top Plate
Weight
28 lbs
Description
The Phenolic Wheel Model 50 Plate Caster is similar to the Model 30 in many ways. They both use the same wheels, have greased fittings, and zinc coated plates for rust protection. Their differences is in the larger mount size and thicker legs.
Popular options include a face contact wheel brake to lock the wheels, and a hand operated swivel lock that converts a swivel caster into a rigid caster for direct line travel.
Phenolic caster wheels make an excellent, low cost choice for supporting high standing loads that move infrequently. Phenolic caster wheels are capable of withstanding the impact shocks of obstructions or shock loads, and will not develop a flat spot if left parked for a prolonged period. Phenolic can absorb water and other chemicals if excessive exposure occurs. This caster wheel comes with either a roller bearing or precision sealed ball bearings. This wheel comes in diameters ranging from 3” to 18” and the width of the wheels ranges from 1-¼” to 4”. All phenolic wheels have a Durometer of Shore D 90 and the temperature range is -40° to +250° F. Contact us if you need help with placing an order: 800-501-3808
*This Plate Caster Model 50 contains Phenolic Swivel Wheel

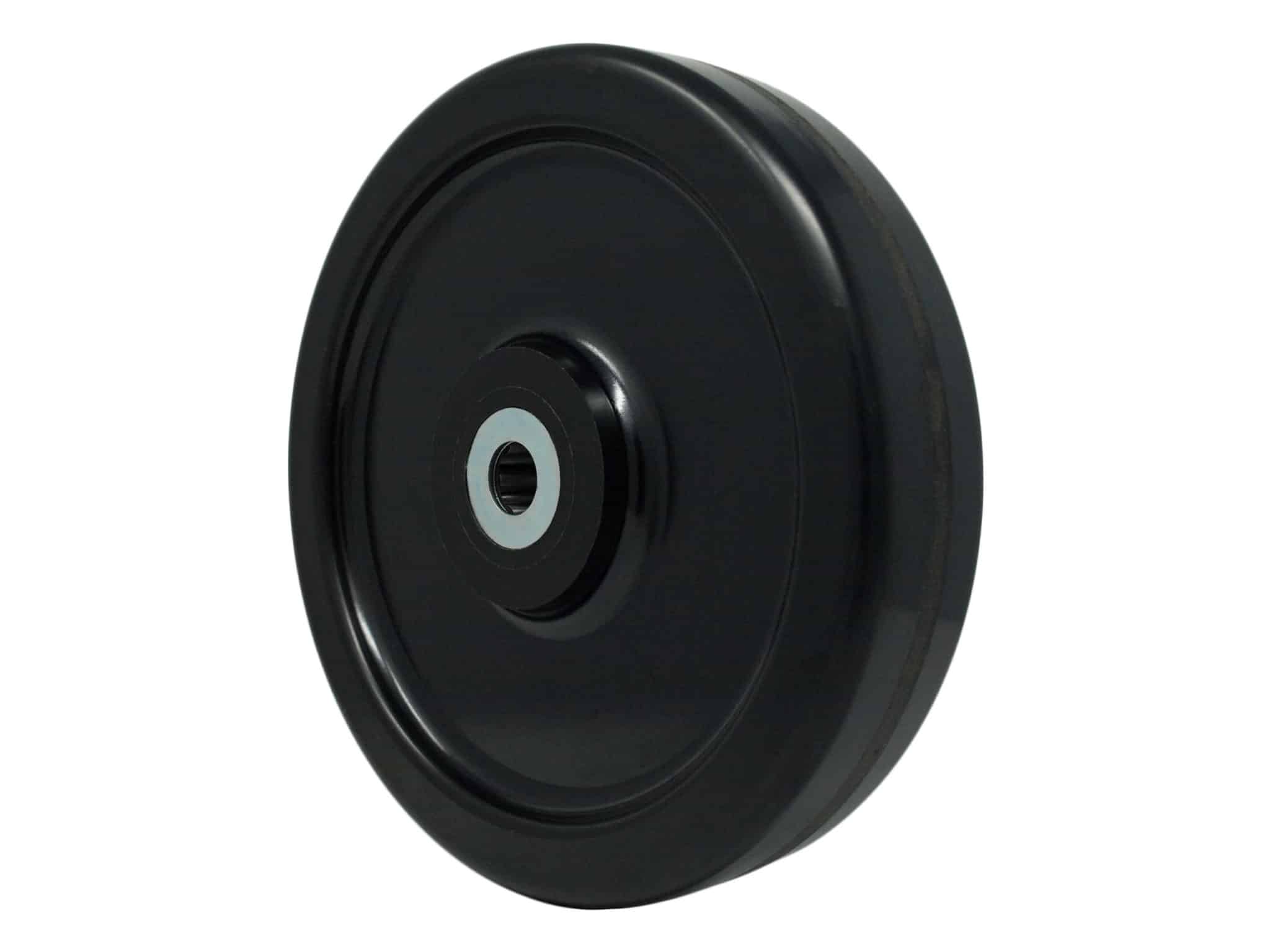

Photo displayed on castercity.com is the 10” x 3” wheel.
For more information and help placing an order, give us a call at 800-501-3808.
Sample of the Plate Caster Model 50:
Application Use:
- Dough Troughs
- Tow Line
- Platform Trucks
- Scrap Metal Carriers
- Trash Gondola
- Fixture Carts
- Drywall Dollies
- Autoclave Dollies
- Powder Coating Racks
- Heavy Duty Power Drawn Applications
- Machinery Dollies
- Cradle Dollies
- Gantry Cranes
FAQ
What is the Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel, and what’s it used for?
The Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel is an industrial plate caster, kingpinless, with a 5 1/4″ x 7 1/4″ mounting plate and 3/8″ thick legs, rated up to 7,000 pounds per caster. It’s a heavier-duty upgrade to Model 30, built for tough industrial tasks like moving heavy carts in foundries, bakeries, or warehouses, handling both manually moved and mechanically powered equipment in high-heat or rugged settings.
Contact us: sales@castercity.com or 800-501-3808.
What’s the load capacity of the Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel?
The Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel supports up to 7,000 lbs per caster, but the TM Phenolic wheel’s maximum capacity is 3,500 lbs under ideal manual conditions (up to 3 mph). For powered equipment or harsh conditions, contact us for reduced ratings.
What wheel sizes are available for the Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel?
The Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel comes in 2.5” or 3” widths with diameters of 6”, 8”, 10”, and 12”. Bigger diameters like 12” handle uneven surfaces better, ideal for heavy-duty industrial use.
What materials are used in the Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel?
The Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel features an ASTM1045 zinc-plated steel frame with a stainless steel option, a precision machined swivel bearing, double-welded 3/8″ thick legs, and a 3/4” axle diameter. The TM Phenolic wheel is made from phenolic resin, reinforced with macerated canvas and wood pulp for strength and impact absorption.
What bearings are used in the Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel?
The Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel comes with roller bearings, precision sealed ball bearings, tapered roller bearings, or bronze bearings for high-temperature uses, ensuring smooth rolling under heavy loads. For special needs, call Caster City at 800-501-3808.
What brake options are available for the Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel?
The Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel offers a Swivel Lock (weld-on or bolt-on), a Weld On Face Contact Brake, or a TB Pedal on Side top lock brake. These options lock the wheel or swivel for stability in demanding settings.
Can the Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel handle wet or corrosive environments?
The Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel has a zinc-plated steel frame that resists rust, with a stainless steel option for wet or corrosive environments—ideal if your total load exceeds 4,000 lbs. Phenolic wheels can absorb water if submerged, making them less suited for prolonged wet conditions but excellent in dry, high-heat areas.
Which industries use the Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel?
The Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel is used in foundries, bakeries, heavy manufacturing, warehouses, automotive, aerospace, construction, and renewable energy, perfect for moving heavy loads like oven carts or machinery in high-temperature settings.
How do I maintain the Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel for long-term use?
The Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel requires greasing the lubrication fittings on the raceway, wheel bearings, and axle regularly. The phenolic wheel’s durability ensures long life in high-heat jobs—don’t exceed 7,000 lbs per caster.
Can the Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel be used with powered equipment?
The Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel is built for both manual and mechanically powered equipment thanks to its precision machined swivel bearing. For powered setups, call Caster City at 800-501-3808 to confirm safety.
What size is the mounting plate on the Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel?
The Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel has a top plate of 5 1/4″ x 7 1/4″ with bolt hole spacing of 3 3/8″ x 5 1/4″ slotted to 4 1/8″ x 6 1/8″, using 3/8″ mounting bolts, making it a solid fit for replacing old casters or heavy equipment. Contact us for detailed specs.
Where can I buy the Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel?
The Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel is available at www.castercity.com or get more details there. For custom setups or questions, call Caster City at 800-501-3808 or email sales@castercity.com.
What are the overall heights for the Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel?
The Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel has the following overall heights: 6” wheel is 8”, 8” wheel is 10-1/2”, 10” wheel is 12-1/2”, and 12” wheel is 15-1/2”. These heights help determine fit for your equipment.
What is phenolic resin, and how is the TM Phenolic Wheel for the Heavy Duty Plate Caster Model 50 made?
Phenolic resin is a strong, heat-resistant synthetic material made from phenol and formaldehyde. For the Heavy Duty Plate Caster Model 50 with TM Phenolic Wheel, it’s combined with macerated canvas and wood pulp, which strengthen the wheel, help it absorb impacts, and resist chipping. This process creates a durable wheel that can handle high temperatures but will absorb water if left submerged, making it best for dry, high-heat environments.
Key Features of the Plate Caster Model 50 with “TM” Phenolic Wheel Industrial
- Construction: ASTM1045 zinc-plated steel with stainless steel option
- Weight Capacity: Up to 7,000 lbs per caster, limited by TM Phenolic wheel (3,500 lbs max)
- Wheel Sizes: 6” 8” 10” 12” diameters, 2.5” or 3” wide
- Bearings: Roller bearings, precision sealed ball bearings, tapered roller bearings, or bronze bearings
- Brake Options: Swivel Lock (weld-on or bolt-on), Weld On Face Contact Brake, Pedal on Side of Wheel Brake (TB)
- Top Plate: 5 1/4″ x 7 1/4″ with bolt hole spacing 3 3/8″ x 5 1/4″ slotted to 4 1/8″ x 6 1/8″
- Overall Heights: 6” wheel (8”), 8” wheel (10-1/2”), 10” wheel (12-1/2”), 12” wheel (15-1/2”)
- Applications: Foundries, bakeries, heavy manufacturing, warehouses, automotive, aerospace, construction, renewable energy
