Download STP FileDownload 2D File5″ White Nylon Wheel – Model 9 Swivel Caster
$52.46
In Stock
Please select any add ons you require for your caster and if you are selecting multiple option types, add all of the quantity for the first choice and then make your selections for the second, third, fourth, etc… choices. (Example: 2 With Brakes and 2 Without Brakes)
Technical Specifications
Wheel Diameter
5"
Caster City Recommendation
Ollie Recommends!
Non-Marking
Yes
Wheel Width
2"
Wheel Bearing
Roller
Maximum Capacity (lbs)
900 lbs
Overall Height
6-1/2"
Swivel Radius
4-1/4"
Color
White
Plate Fastener Type
Mounting Plate, Top Plate
Plate Mounting Type
Top Plate
Weight
6 lbs
- Description
- Application Use
- Reviews
- CASTER CITY GUARANTEE
- Measurement Conversion Table
- Articles and How to Guides
Description
DO NOT ORDER SWIVEL LOCK OR RACEWAY SEALS IF YOU ORDER THE TL – TOTAL LOCK BRAKE. THE TL BRAKE WILL NOT WORK WITH EITHER THE SWIVEL LOCK OR RACEWAY SEALS.
Plate Caster Model 9 Swivel is the industry standard industrial caster because of the economical pricing and broad wheel selection. The swivel bearing uses 2 rows of balls on heat treated raceways underneath the mounting plate. A nut and bolt center pin is welded to handle normal abuse in a manually moved application. The kingpin bolt diameter is 5/8″ and legs are 1/4″ thick, welded on the inside and outside. The axle is 1/2″ in diameter, designed to use wheels with a 2 7/16″ hub width. Made from stamped steel, the metal frames are zinc plated for corrosion resistance. Lubrication fittings keep all moveable parts maintained. A broad selection of wheel brakes and swivel locks is available for most applications. Ideal for fiberglass manufacturing, composite layup facilities, and resin transfer operations. Other plate sizes and wheel bearing types are available on request. A 304 Stainless Steel construction is also supplied for washdown and corrosive applications.

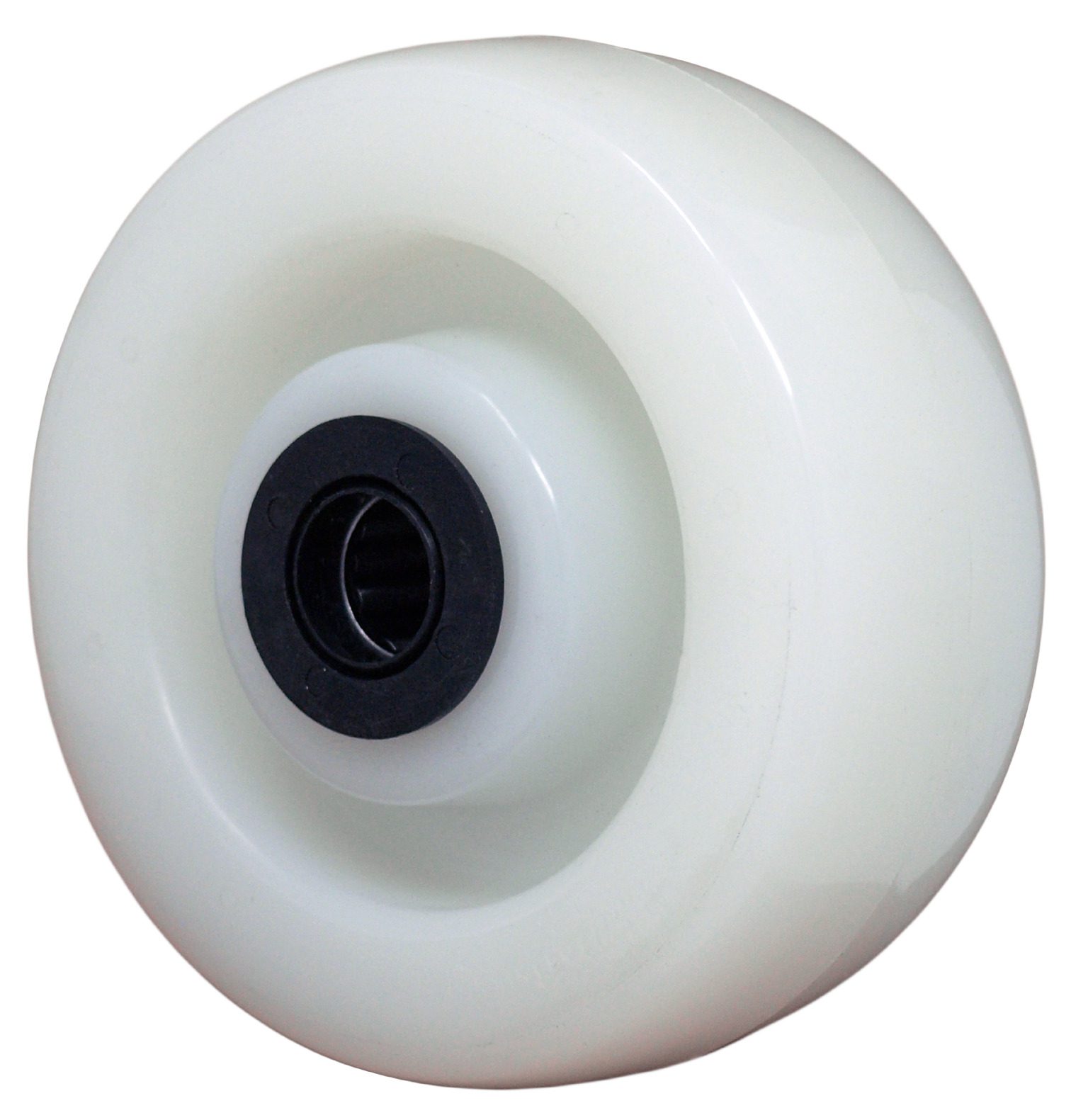

Nylon caster wheels are capable of supporting a capacity comparable to most metal wheels while weighing very little and without the risk of damaging your floors. This solid nylon caster wheel can resist chemicals, bases, steam, salt, brine, acid, blood, oils, and greases. This solid nylon industrial caster wheel is a hard composite material that can withstand shock loads and impact loads. Injection molded from nylon 6, this wheel is 100% washable, steam cleanable, and impervious to water. Nylon caster wheels can not develop flat spots, even under prolonged static loads. The hard tread features a slight crown and rolls very easily. This non-marking wheel has a Durometer of 75D and offers excellent abrasion resistance. This caster wheel comes with plain bore, precision sealed ball bearings, or roller bearings. Ideal for manufacturing facilities, food processing, and environments exposed to corrosive substances.
*This Plate Caster Model 9 contains White Nylon Swivel Wheel.
The Photo Displayed on CasterCity.com is the 6″ Caster Wheel.
For more information and help placing an order, give us a call at 800-501-3808.
Application Use
Application Use Plate Industrial Caster Model 9:
The Plate Model 9 is designed for medium to heavy-duty jobs and are built for floor protection, mobility, and ergonomic effectiveness in a variety of industries, such as:
Manufacturing Industry
- Assembly line carts
- Tool carts and cabinets
- Workbenches
- Assembly stations
- Die and mold carts
- Material handling carts
- Engine stands
- Transmission jacks
- Wing assembly jigs
Warehousing and Distribution
- Stock picking carts
- Shipping and receiving carts
- Flatbed carts
- Dollies
- Mobile shelving units
Automotive Industry
- Vehicle assembly line equipment
- Parts transport carts
- Tool chests
- Battery carts
- Mobile diagnostic equipment
Aerospace Industry
- Aircraft maintenance platforms
- Engine transport dollies
- Wing and fuselage assembly jigs
Food Processing and Service
- Ingredient bins
- Mixing bowls on stands
- Oven racks
- Bakery carts
- Kitchen carts
- Serving trolleys
- Laundry carts
Healthcare
- Hospital beds
- Medical carts
- Mobile diagnostic machines
Retail
- Mobile display racks
- Shelving units
- Point-of-purchase displays
- Shopping carts
Construction and Maintenance
- Mobile scaffolds
- Work platforms
- Tool carts
- Generator carts
- Compressor carts
Agriculture
- Farm machinery parts transport carts
- Greenhouse carts
Marine
- Boat mold transport carts
- Deck equipment movement
Data Centers and IT
- Server rack carts
- Mobile cabinets
Entertainment and Events
- Stage equipment carts
- Lighting and sound equipment stands
- Mobile platforms
Laboratories
- Lab carts
- Equipment stands
Printing and Publishing
- Paper roll carts
- Printing press component transport
Textile Industry
- Fabric roll carts
- Sewing machine stands
Chemical Industry
- Drum dollies
- Cylinder carts
HVAC and Electrical
- HVAC equipment carts
- Electrical panel carts
Woodworking and Metalworking
- Mobile worktables
- Saw stands
- Material handling carts
Waste Management
- Waste containers on wheels
- Recycling bins
Fitness Centers
- Mobile weight racks
- Equipment stands
Transportation Hubs
- Baggage carts
- Luggage carts
Cold Storage and Refrigeration
- Refrigerated warehouse carts
- Food processing plant equipment
Our #1 goal is to help you find the best caster and wheels for your needs. If you need help finding the right casters, contact our team of professionals. You can also customize many of our casters with a variety of options such as swivel locks, wheel brakes and zerk fittings. We ship our products from assembly plants in Georgia, Pennsylvania, Virginia, Texas, Nevada and Canada. Whether you’re a one-man shop or a global giant, we can provide you with: We specialize in Business to Business, however, consumer orders are gladly accepted and we can provide you with:
