6″ Crown Tread Soft Gray Rubber Wheel – Model 9 Swivel Caster

Description

Plate Swivel Caster Model 9s are our most selected industrial caster because of its moderate initial cost and broad selection of wheels.  Under the mounting plate it has 2 rows of balls rotating on heat treated raceways.  The swivel has a bolt and nut center pin welded to withstand normal abuse in a manually moved application.  The center bolt diameter is 5/8” and the leg thickness is 1/4”, welded on the inside and out.  The axle diameter is 1/2” long and is designed to use wheels with a hub width of 2 7/16”.  This caster is fabricated from stamped steel.  The metal frames are zinc plated for rust resistance, and it has lubrication fittings for all moveable components.  Model 9 has a broad selection of wheel brakes and swivel locks for most applications.  Other mounting plate sizes and wheel bearing types are available on request.

DO NOT ORDER SWIVEL LOCK OR RACEWAY SEALS IF YOU ORDER THE TL – TOTAL LOCK BRAKE. THE TL BRAKE WILL NOT WORK WITH EITHER THE SWIVEL LOCK OR RACEWAY SEALS.

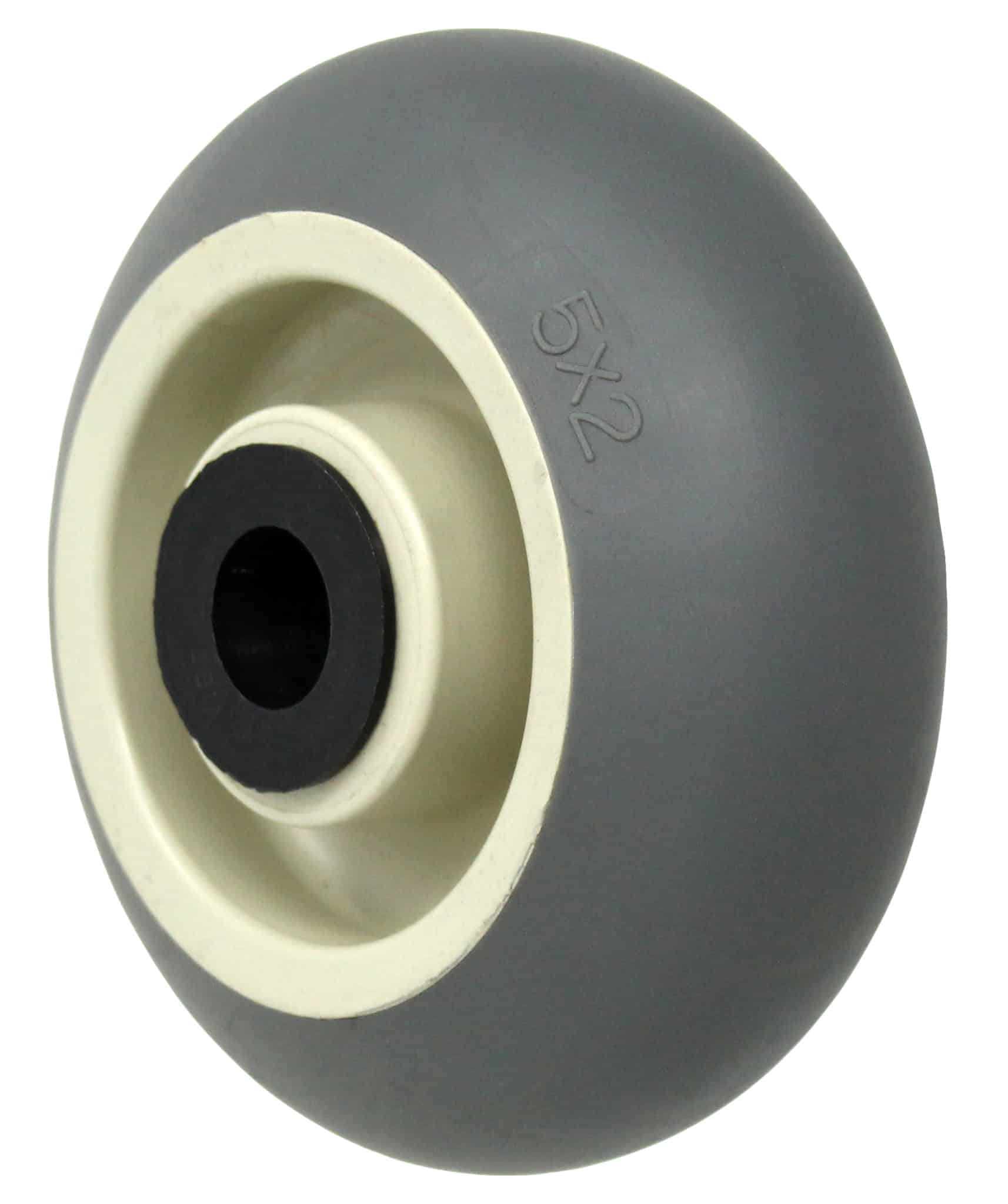

*This Plate Caster Model 9 contains the Gray Soft Rubber, Crown Swivel Wheel. Roller Bearing in the Wheel.

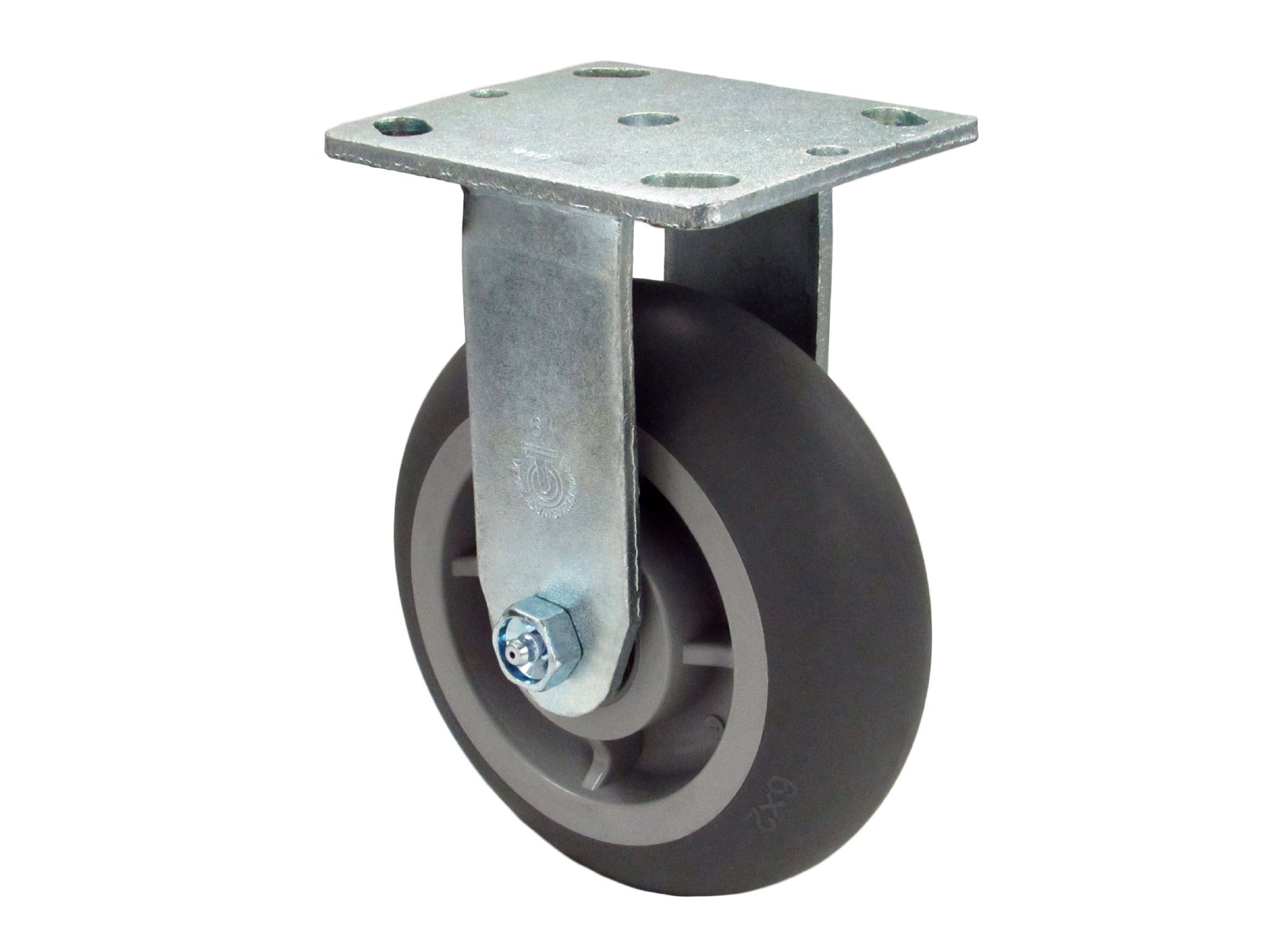

The Photo Displayed on CasterCity.com is the 5″ Caster Wheel.

This caster is available in Stainless Steel – click here.  This is an excellent caster for wet or corrosive applications if your total weight exceeds 1000lbs.  It comes with the same large selection of wheels, some of which are also NSF and ROHS compliant.

For more information and help placing an order, give us a call at 800-501-3808.

Application Use Plate Industrial Caster Model 9:

The Plate Model 9 is designed for medium to heavy-duty jobs and are built for floor protection, mobility, and ergonomic effectiveness in a variety of industries, such as:

Manufacturing Industry

• Assembly line carts
• Tool carts and cabinets
• Workbenches
• Assembly stations
• Die and mold carts
• Material handling carts
• Engine stands
• Transmission jacks
• Wing assembly jigs

Warehousing and Distribution

• Stock picking carts
• Shipping and receiving carts
• Flatbed carts
• Dollies
• Mobile shelving units

Automotive Industry

• Vehicle assembly line equipment
• Parts transport carts
• Tool chests
• Battery carts
• Mobile diagnostic equipment

Aerospace Industry

• Aircraft maintenance platforms
• Engine transport dollies
• Wing and fuselage assembly jigs

Food Processing and Service

• Ingredient bins
• Mixing bowls on stands
• Oven racks
• Bakery carts
• Kitchen carts
• Serving trolleys
• Laundry carts

Healthcare

• Hospital beds
• Medical carts
• Mobile diagnostic machines

Retail

• Mobile display racks
• Shelving units
• Point-of-purchase displays
• Shopping carts

Construction and Maintenance

• Mobile scaffolds
• Work platforms
• Tool carts
• Generator carts
• Compressor carts

Agriculture

• Farm machinery parts transport carts
• Greenhouse carts

Marine

• Boat mold transport carts
• Deck equipment movement

Data Centers and IT

• Server rack carts
• Mobile cabinets

Entertainment and Events

• Stage equipment carts
• Lighting and sound equipment stands
• Mobile platforms

Laboratories

• Lab carts
• Equipment stands

Printing and Publishing

• Paper roll carts
• Printing press component transport

Textile Industry

• Fabric roll carts
• Sewing machine stands

Chemical Industry

• Drum dollies
• Cylinder carts

HVAC and Electrical

• HVAC equipment carts
• Electrical panel carts

Woodworking and Metalworking

• Mobile worktables
• Saw stands
• Material handling carts

Waste Management

• Waste containers on wheels
• Recycling bins

Fitness Centers

• Mobile weight racks
• Equipment stands

Transportation Hubs

• Baggage carts
• Luggage carts

Cold Storage and Refrigeration

• Refrigerated warehouse carts
• Food processing plant equipment
