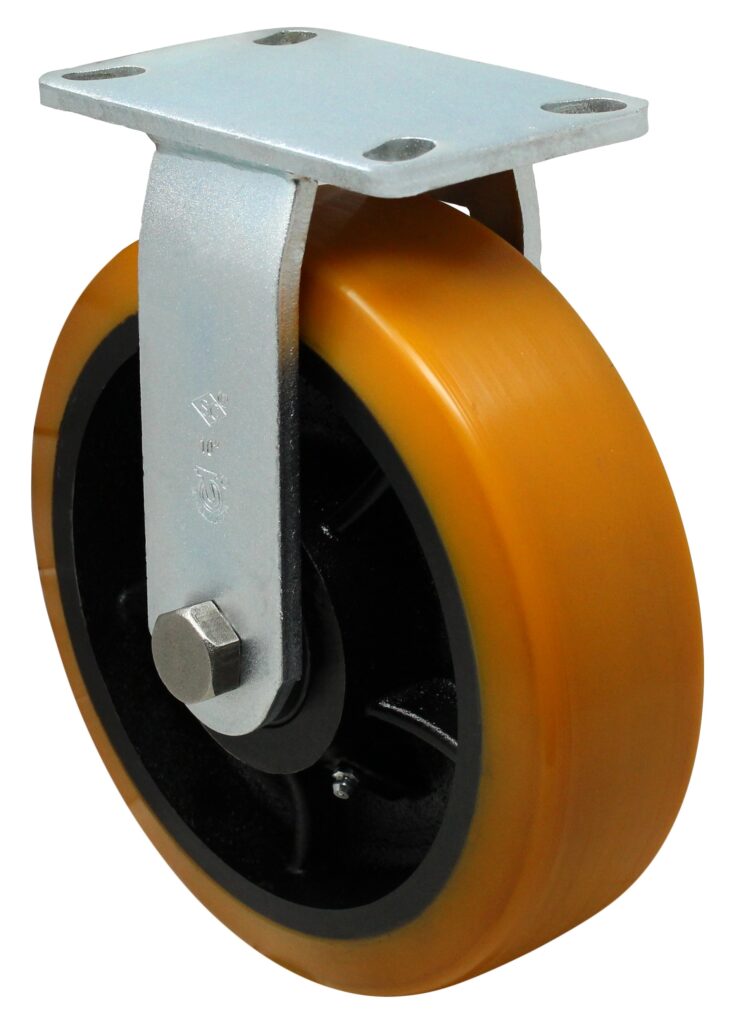

Name: 10" x 3" Orange Premium Polyurethane on Iron High Capacity - Model 30 Rigid Caster
SKU: 30PX10X3T-R
Availability: InStock

Volume Pricing on Inquiry. Call us: 800-501-3808

Most of our casters are assembled and dispatched within 24-48 hours.

Click to Download CAD Files

Download 2D File

10″ x 3″ Orange Premium Polyurethane on Iron High Capacity – Model 30 Rigid Caster

$332.73

PN: 30PX10X3T-R

In Stock

Please select any add ons you require for your caster and if you are selecting multiple option types, add all of the quantity for the first choice and then make your selections for the second, third, fourth, etc… choices. (Example: 2 With Brakes and 2 Without Brakes)

SKU: 30PX10X3T-RCategories: Plate Casters, Rigid Casters, Model 30 - Up To 7,000lbs each - Plate Size 4-1/2" x 6-1/4", Model 30 Rigid, Heavy Duty Casters

Technical Specifications

Wheel Diameter

10"

Caster City Recommendation

Ollie Recommends!

Non-Marking

Yes

Durometer

95A

ISO 9001

ISO 9001:2015 Certified

Wheel Core Material

Iron

Fork Finish

Zinc Coating

Kingpinless

Yes

Wheel Width

Wheel Bearing

Tapered

Maximum Capacity (lbs)

6000 lbs

Overall Height

11-1/2"

Color

Orange

Plate Fastener Type

Mounting Plate, Top Plate

Plate Mounting Type

Top Plate

Weight

34.5 lbs

Description

Rigid Caster Model 30 is a step up from the rigid casters shown on G15. These Rigid casters have larger wheels, big wheel bearings, a higher weight load capacity rating, and a larger mounting plate than the caster that is shown on G15. It utilizes superior performance on both hand powered and automated equipment. The 30 Model frames are plated in zinc for rust prevention. There are grease fittings for the bearings in the wheel. Rigid plate casters are usually attached to machinery at the opposite end of the push handle and where casters with swivels are attached. This enables the employee pushing the equipment to be able to control the line of travel. It should also be stressed that rigid plate casters have two legs perpendicular to the mount plate, preventing sideways movement. Equipment with two rigid casters and two swivel casters must be handled into position. Capacity up to 7,000 pounds per plate caster. Model 30 features a large swivel and wheel bearing which allows for heavy loads and more arduous service. This caster is also available in 304 Stainless Steel as the SS-30 for wet or corrosive applications. For more details and assistance placing an order, give us a call at 800-501-3808.

The PX caster wheel is made from a Megapoly™ polyurethane compound which slows down internal heat that builds up from high loads and significantly increases the load capacity and lifespan of the wheel. This wheel is our highest capacity polyurethane wheel that we offer for industrial caster applications. This heavy duty industrial caster wheel can handle higher loads than standard wheels while resisting the internal heat build up associated with the heaviest loads. The resilient nature of this industrial caster wheel is unmatched in its size, making initiating motion easier and protecting sensitive cargo while it is transported and protecting costly floors. The industrial caster wheel can come with either sealed precision ball bearings or tapered roller bearings for towing. Ideal for power generation facilities, military ground support equipment, railroad maintenance, and heavy fabrication shops.

Application Use

Applications List for Plate Caster Model 30

Manufacturing Plants: Heavy machinery transport carts, industrial press movers, assembly line equipment carts, and large tool carts, handling extreme loads in dry factory settings.
Construction Sites: Material handling carts for steel beams, mobile crane bases, heavy scaffolding movers, and concrete equipment transport, managing high-capacity construction materials on smooth surfaces.
Automotive Assembly Lines: Engine block transport carts, chassis assembly carts, heavy-duty parts movers, and tool carts, supporting large automotive components in dry environments.
Warehouses: Oversized pallet jacks, heavy storage rack movers, large conveyor system carts, and industrial dollies, moving massive loads in dry warehouse conditions.
Distribution Centers: High-capacity conveyor system carts, large shipping crate movers, heavy-duty inventory transport carts, and bulk goods movers, handling extreme loads in dry settings.
Steel Mills: Steel plate equipment carts, mobile furnace tools, large casting mold movers, and maintenance carts, supporting heavy loads in high-impact, dry environments.
Foundries: Heavy mold carts, casting equipment movers, large crucible transport carts, and maintenance tool carts, managing extreme loads in dry, high-impact foundry settings.
Aerospace Manufacturing: Aircraft component transport carts, mobile jigs and fixtures, large assembly line equipment movers, and tool carts, handling heavy aerospace parts in dry factory conditions.
Mining (Dry Areas): Ore cart movers in dry zones, mobile drilling equipment carts, heavy conveyor belt movers, and maintenance tool carts, supporting massive mining equipment in non-corrosive areas.
Waste Management (Dry Areas): Oversized waste bin movers, large recycling equipment carts, and dry waste material transport carts, managing heavy waste loads in dry environments.
Semiconductor Manufacturing (Dry Areas): Heavy wafer handling carts, photolithography equipment movers, CMP tool transport carts, and cleanroom furniture, supporting large loads in dry, controlled environments.
Textile Industry (Dry Areas): Large fabric roll transport carts, mobile looms, heavy dyeing equipment movers, and maintenance tool carts, handling extreme textile loads in dry factory settings.
Pulp and Paper Industry (Dry Areas): Massive paper roll transport carts, mobile processing equipment, pulp bale movers, and maintenance carts, managing heavy loads in dry, non-corrosive areas.
Agricultural Processing (Dry Areas): Large fertilizer transport carts, grain bin movers, mobile harvesting equipment carts, and storage units, supporting heavy loads in dry agricultural settings.
Retail and Logistics: High-capacity stock carts, large warehouse shelving movers, and heavy delivery equipment carts, handling massive loads in dry retail and logistics environments.
Entertainment Industry: Large stage equipment movers, heavy lighting rig transport carts, oversized prop carts, and mobile set pieces, managing heavy loads in dry, controlled settings like studios or theaters.
Heavy Equipment Rental: Mobile generator carts, large compressor movers, heavy equipment transport carts, and mobile pump carts, handling extreme rental equipment loads in dry environments.
Oil and Gas (Dry Areas): Mobile pump carts, heavy pipe transport carts, drilling equipment movers, and maintenance tool carts, supporting large loads in dry, non-corrosive oil and gas settings.
Military and Defense (Dry Areas): Mobile weapons system carts, heavy ammunition transport carts, equipment movers, and maintenance tool carts, handling extreme loads in dry, controlled environments.
