Name: 10" x 3" Orange Premium Polyurethane on Iron Wheel High Capacity - Model 30 Swivel Caster
SKU: 30PX10X3T-S
Availability: InStock

3 +

Volume Pricing on Inquiry. Call us: 800-501-3808

Most of our casters are assembled and dispatched within 24-48 hours.

Click to Download CAD Files

Download 2D File

10″ x 3″ Orange Premium Polyurethane on Iron Wheel High Capacity – Model 30 Swivel Caster

$419.53

PN: 30PX10X3T-S

In Stock

Please select any add ons you require for your caster and if you are selecting multiple option types, add all of the quantity for the first choice and then make your selections for the second, third, fourth, etc… choices. (Example: 2 With Brakes and 2 Without Brakes)

SKU: 30PX10X3T-SCategories: Plate Casters, Swivel Casters, Model 30 - Up To 7,000lbs each - Plate Size 4-1/2" x 6-1/4", Model 30 Swivel, Heavy Duty Casters

Technical Specifications

Kingpinless

Yes

Caster City Recommendation

Ollie Recommends!

Non-Marking

Yes

Durometer

95A

ISO 9001

ISO 9001:2015 Certified

Wheel Core Material

Iron

Fork Finish

Zinc Coating

Wheel Diameter

10"

Wheel Width

Wheel Bearing

Tapered

Maximum Capacity (lbs)

6000 lbs

Overall Height

11-1/2"

Swivel Radius

7-9/16"

Color

Orange

Plate Zinc Swivel Lock Code

SL4

Plate Zinc Brake Code

FCB

Plate Fastener Type

Mounting Plate, Top Plate

Plate Mounting Type

Top Plate

Weight

38 lbs

Description

Model 30 Swivel Casters are a step up from model G15 swivel casters in that it features bigger swivel and wheel bearings and wider wheels. The precision machined swivel provides unmatched performance on both hand operated and mechanically powered machinery. The metal frames are zinc plated for rust protection, and there are greasing fittings for all adjustable parts. Popular options customers like to include is a face contact wheel brake to latch the wheels and a hand operated swivel latch that converts the swivel caster into a rigid caster for direct line travel. Capacity up to 7,000 pounds per caster. Model 30 features a large swivel and wheel bearing which allows for heavy loads and more arduous service. Benefits include easier swiveling, reduced swivel vibration, and longer trouble free performance. Ideal for automotive assembly lines, heavy machinery moving, and aircraft maintenance stands. Caster City manufactures this caster and it is also available in 304 Stainless Steel as the SS-30 for wet or corrosive applications. For more details and assistance placing an order, give us a call at 800-501-3808.

Made from a Megapoly™ polyurethane compound, the PX caster wheel slows down internal heat that builds up from high loads and significantly increases the load capacity and lifespan of the wheel. The (PX) industrial caster wheel is our highest capacity polyurethane industrial wheel and the most resilient polyurethane we offer in a wheel of this size. The PX wheel offers a smoother ride than harder standard polyurethane wheels, protecting sensitive components and machinery from the vibrations of going in and out of a production facility. The tread thickness on this industrial caster wheel is 1″ and makes it an ideal choice for power towing heavy loads. The industrial caster wheel is designed to use either tapered roller bearings or precision sealed ball bearings. Ideal for shipyard operations, oil and gas equipment, and mining operations.

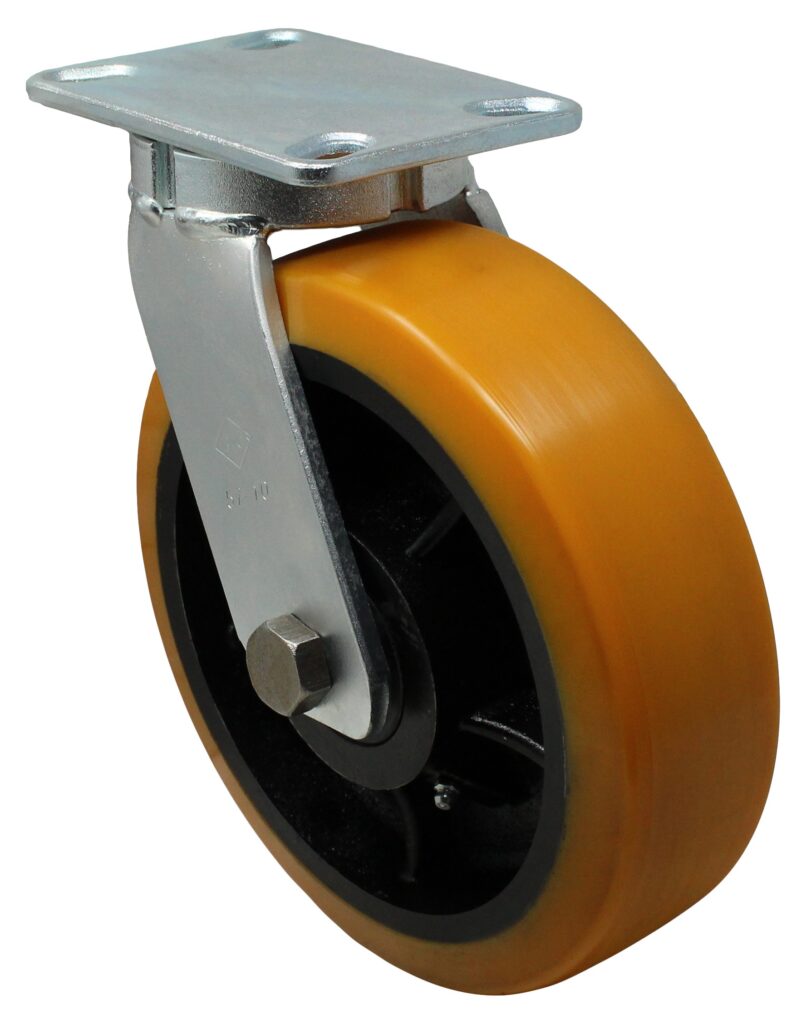

*This Plate Caster Model 30 contains Polyurethane on Iron Wheels with Heavy Duty and is displayed with the 10″ x 3″ wheel.

For more information and help placing an order, give us a call at 800-501-3808.

FAQ

Plate Caster Model 30 FAQ

What is the weight capacity of the Plate Caster Model 30 with PX polyurethane wheels?

The Model 30 caster bracket supports up to 7,000 lbs per caster under ideal conditions (smooth floors, manual movement at 3 mph), but the PX polyurethane wheel’s capacity varies by size—for the 12” x 3” wheel, it’s limited to 6,500 lbs, so each caster with that wheel maxes out at 6,500 lbs. Smaller sizes like 6”, 8”, or 10” x 3” may have lower capacities. For tow-line or powered applications, contact Caster City at 800-501-3808 to confirm the setup.

What wheel sizes are available for the Plate Caster Model 30 with PX polyurethane wheels?

For the Model 30, PX polyurethane wheels are 3 inches wide and available in diameters of 6, 8, 10, and 12 inches (e.g., 10″ x 3″). Choose based on your load and floor—larger diameters improve maneuverability on uneven surfaces.

What materials are used in the Plate Caster Model 30 with PX polyurethane wheels?

The caster is built from zinc-plated steel with a 3” swivel bearing, double-welded legs, and hardened steel ball bearings, all zinc-plated for corrosion resistance. The PX wheel features a 1-inch thick polyurethane tire (95A Durometer) bonded to a sturdy iron core.

Why choose PX polyurethane wheels for the Plate Caster Model 30?

PX wheels are designed for heavy-duty tow-line applications, with a premium polyurethane tire that reduces internal heat buildup, extending lifespan. Non-marking and floor-protecting, they resist flat spotting, chemicals, and wear, with precision sealed ball or tapered roller bearings for smooth, low-effort rolling.

What bearings are used in the PX polyurethane wheels for the Plate Caster Model 30?

The 3-inch wide PX wheels include precision sealed ball or tapered roller bearings, delivering smooth operation and low drawbar pull for heavy loads. For specific needs, like high-temperature environments, consult Caster City at 800-501-3808 to select the best bearing type.

Can the Plate Caster Model 30 with PX polyurethane wheels operate in demanding environments?

Yes, it performs reliably from -20°F to 180°F, resisting oil, grease, and harsh chemicals. Ideal for controlled settings like automotive tow-lines, boat building, or observatories, it ensures durability and floor protection. For extreme conditions, reach out to Caster City for guidance.

How do PX polyurethane wheels in the Plate Caster Model 30 protect factory floors?

The 95A polyurethane tire is non-marking, absorbs impacts, and minimizes floor wear, unlike steel wheels, making it perfect for automotive plants, shipyards, or observatories. For sensitive surfaces, V-groove wheels on angle iron tracks add protection—email Caster City at sales@castercity.com for advice.

Which industries use the Plate Caster Model 30 with PX polyurethane wheels?

It’s trusted in automotive, aerospace, boat/yacht building, observatories, heavy manufacturing, warehouses, and defense. It excels in tow-line applications, moving yacht hulls, telescope roofs, aircraft components, or heavy carts while safeguarding floors.

What are the primary applications for the PX polyurethane wheels in the Plate Caster Model 30?

They shine in automotive tow-lines (hauling vehicle parts), boat/yacht building (hull and mold transport), observatories (telescope roof movement), aerospace (aircraft component handling), heavy manufacturing (machinery carts), warehouses (goods transport), and defense (helipads or fortifications). They resist flat spotting for stationary loads and reduce noise for precision environments.

How do I maintain the Plate Caster Model 30 with PX polyurethane wheels?

Lubricate the grease fittings on the caster’s raceway and axle regularly. Consistent maintenance ensures smooth, quiet performance in high-demand applications like automotive tow-lines or observatory systems.

Can the Plate Caster Model 30 with PX polyurethane wheels be used with mechanically powered equipment?

It’s optimized for manual or tow-line applications, but powered use is possible with customization. Contact Caster City at 800-501-3808 to ensure a safe, effective setup for powered equipment like tow-line systems.

What is the top plate size of the Plate Caster Model 30?

The top plate is 4-1/2″ x 6-1/4″, with bolt hole spacing of 3-3/8” x 5-1/4” to 2-7/16” x 4-15/16”, and uses 3/8″ mounting bolts, making it a sturdy fit for heavy-duty equipment like tow-line carts or telescope roof systems.

Where can I buy the Plate Caster Model 30 with PX polyurethane wheels?

Purchase it directly on this site or explore the full details here. For custom configurations or questions, call Caster City at 800-501-3808 or email sales@castercity.com—they’ll ensure you get the right solution.

Key Features of the Plate Caster Model 30

Construction: Zinc-plated steel with a 3” swivel bearing
Weight Capacity: Up to 7,000 lbs per caster, limited to 6,500 lbs with 12” x 3” wheel
Wheel Sizes: 6”, 8”, 10”, and 12” diameters, 3” wide
Wheel Material: PX polyurethane (95A Durometer) on iron core
Bearings: Precision sealed ball or tapered roller bearings
Top Plate: 4-1/2″ x 6-1/4″, bolt hole spacing 3-3/8” x 5-1/4” to 2-7/16” x 4-15/16”, 3/8″ bolts
Applications: Automotive tow-lines, boat building, observatories

Application Use

Applications List for Plate Caster Model 30

Manufacturing Plants: Heavy machinery transport carts, industrial press movers, assembly line equipment carts, and large tool carts, handling extreme loads in dry factory settings.
Construction Sites: Material handling carts for steel beams, mobile crane bases, heavy scaffolding movers, and concrete equipment transport, managing high-capacity construction materials on smooth surfaces.
Automotive Assembly Lines: Engine block transport carts, chassis assembly carts, heavy-duty parts movers, and tool carts, supporting large automotive components in dry environments.
Warehouses: Oversized pallet jacks, heavy storage rack movers, large conveyor system carts, and industrial dollies, moving massive loads in dry warehouse conditions.
Distribution Centers: High-capacity conveyor system carts, large shipping crate movers, heavy-duty inventory transport carts, and bulk goods movers, handling extreme loads in dry settings.
Steel Mills: Steel plate equipment carts, mobile furnace tools, large casting mold movers, and maintenance carts, supporting heavy loads in high-impact, dry environments.
Foundries: Heavy mold carts, casting equipment movers, large crucible transport carts, and maintenance tool carts, managing extreme loads in dry, high-impact foundry settings.
Aerospace Manufacturing: Aircraft component transport carts, mobile jigs and fixtures, large assembly line equipment movers, and tool carts, handling heavy aerospace parts in dry factory conditions.
Mining (Dry Areas): Ore cart movers in dry zones, mobile drilling equipment carts, heavy conveyor belt movers, and maintenance tool carts, supporting massive mining equipment in non-corrosive areas.
Waste Management (Dry Areas): Oversized waste bin movers, large recycling equipment carts, and dry waste material transport carts, managing heavy waste loads in dry environments.
Semiconductor Manufacturing (Dry Areas): Heavy wafer handling carts, photolithography equipment movers, CMP tool transport carts, and cleanroom furniture, supporting large loads in dry, controlled environments.
Textile Industry (Dry Areas): Large fabric roll transport carts, mobile looms, heavy dyeing equipment movers, and maintenance tool carts, handling extreme textile loads in dry factory settings.
Pulp and Paper Industry (Dry Areas): Massive paper roll transport carts, mobile processing equipment, pulp bale movers, and maintenance carts, managing heavy loads in dry, non-corrosive areas.
Agricultural Processing (Dry Areas): Large fertilizer transport carts, grain bin movers, mobile harvesting equipment carts, and storage units, supporting heavy loads in dry agricultural settings.
Retail and Logistics: High-capacity stock carts, large warehouse shelving movers, and heavy delivery equipment carts, handling massive loads in dry retail and logistics environments.
Entertainment Industry: Large stage equipment movers, heavy lighting rig transport carts, oversized prop carts, and mobile set pieces, managing heavy loads in dry, controlled settings like studios or theaters.
Heavy Equipment Rental: Mobile generator carts, large compressor movers, heavy equipment transport carts, and mobile pump carts, handling extreme rental equipment loads in dry environments.
Oil and Gas (Dry Areas): Mobile pump carts, heavy pipe transport carts, drilling equipment movers, and maintenance tool carts, supporting large loads in dry, non-corrosive oil and gas settings.
Military and Defense (Dry Areas): Mobile weapons system carts, heavy ammunition transport carts, equipment movers, and maintenance tool carts, handling extreme loads in dry, controlled environments.
