FAQ

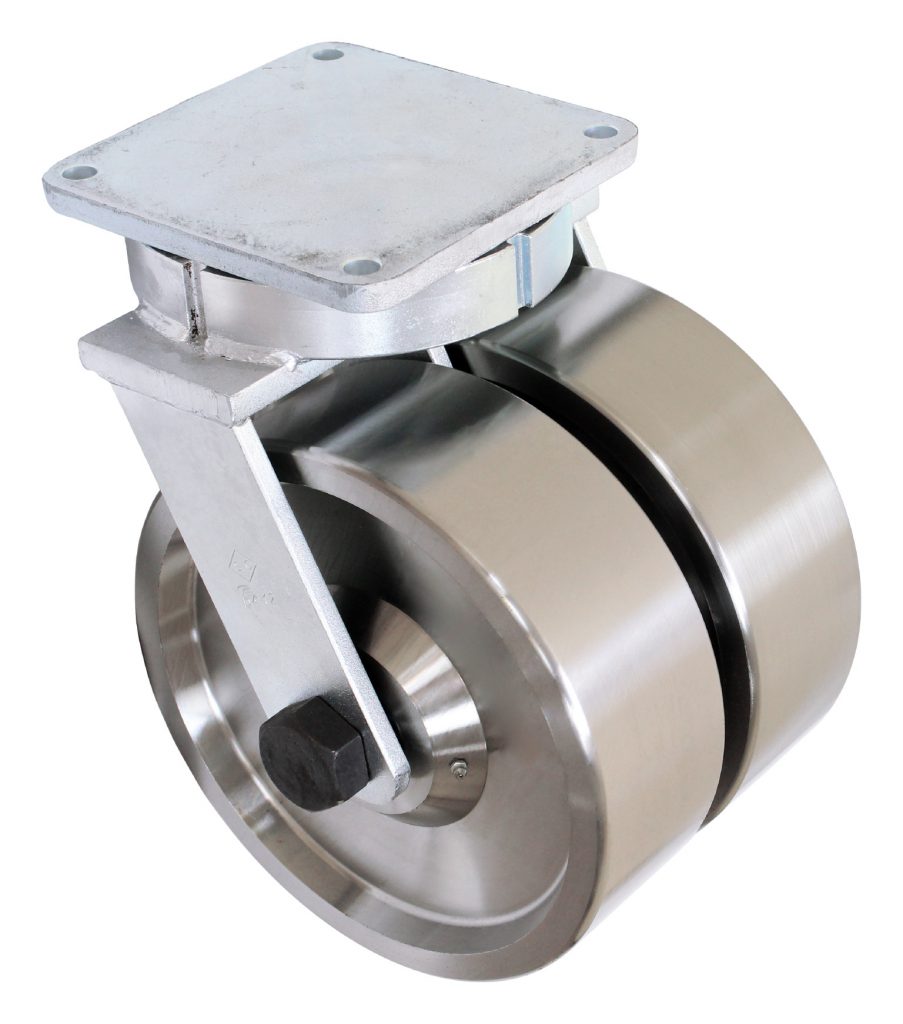

Heavy Duty Dual Wheel Caster Model 2-150 with Forged Steel Wheels

What is the load capacity of the Heavy Duty Dual Wheel Caster Model 2-150 with forged steel wheels?

The Heavy Duty Dual Wheel Caster Model 2-150 with forged steel wheels supports up to 40,000 lbs per caster, with each forged steel wheel handling 20,000 lbs. For 8-inch wheels, the capacity is slightly lower at 36,000 lbs per caster, while 10-inch and 12-inch wheels reach the full 40,000 lbs. This makes it one of the highest-capacity heavy duty casters available for industrial use, perfect for moving extremely heavy equipment or materials in tough environments.

What wheel diameters are available for the Model 2-150 with forged steel wheels?

The Model 2-150 offers forged steel wheels in three diameters: 8 inches, 10 inches, and 12 inches, each with a 4-inch tread width. This range provides flexibility to meet specific load and spatial requirements in industrial settings, ensuring durability under extreme conditions.

What type of bearings are used in the forged steel wheels?

The forged steel wheels are equipped with sealed tapered roller bearings, designed to handle both radial and axial loads efficiently. These bearings ensure smooth operation and long-lasting performance, even under the heaviest loads and most abusive conditions, making them ideal for demanding industrial caster applications.

Can you describe the construction of the Model 2-150 caster?

The Model 2-150 features a robust construction with hot forged steel precision-machined combination load and thrust bearings, complete with a heat-treated raceway. It employs a kingpinless caster design, eliminating the center pin to enhance durability in harsh applications. Both swivel and rigid frames are zinc-plated to provide added rust resistance, ensuring the industrial caster’s longevity in challenging environments.

What optional features are available for the Model 2-150 with forged steel wheels?

Optional features include a hand-activated face-contact wheel brake that locks both wheels simultaneously for secure positioning. A swivel lock is also available, converting the swivel caster into a rigid caster, which is useful for maintaining straight-line travel when towing heavy loads, adding versatility to this heavy duty caster.

What are the advantages of using forged steel wheels in heavy-duty casters?

Forged steel wheels provide exceptional strength and durability, manufactured through a process that shapes steel under high pressure and temperature, resulting in a dense, resilient material. They can handle extreme loads up to 20,000 lbs per wheel, resist wear, impact, and deformation, and are built for rough terrain and abusive conditions. Their ability to operate in a wide range of temperatures with minimal maintenance makes them a top choice for heavy duty industrial caster applications.

On what types of floors are forged steel wheels suitable?

Forged steel wheels are best suited for hard, smooth surfaces like concrete, steel, or tiled floors. Due to their hardness, they may cause damage to softer floors such as wood, vinyl, or epoxy, so it’s critical to ensure the floor can withstand the weight and impact of this heavy duty caster to prevent damage.

How do forged steel wheels compare to polyurethane or rubber wheels in terms of performance?

Forged steel wheels outperform polyurethane or rubber wheels in load capacity and durability under extreme conditions. They can handle heavier weights and endure more abuse, making them ideal for the toughest industrial caster applications. However, they may produce more noise during operation and can be harsher on floors, potentially causing damage if not used on appropriate surfaces, unlike polyurethane or rubber wheels, which offer better floor protection and quieter operation but with lower weight capacities.

What maintenance is required for forged steel wheels?

Maintenance for forged steel wheels includes regular inspections for signs of wear, such as flat spots or deformation, and ensuring the bearings are lubricated for smooth rotation. Cleaning the wheels to remove debris and checking for corrosion, especially in humid or corrosive environments, is recommended. Proper maintenance extends the lifespan of this industrial caster and ensures optimal performance under heavy loads and abusive conditions.

Can forged steel wheels be used in high-temperature environments?

Yes, forged steel wheels can withstand high temperatures, making them suitable for environments with heat exposure. The specific temperature range depends on the wheel’s design and any additional treatments or coatings applied. It’s advisable to consult the manufacturer’s specifications to confirm the maximum operating temperature for this heavy duty caster.

What are typical applications for the Model 2-150 with forged steel wheels?

The Model 2-150 with forged steel wheels is ideal for heavy-duty industrial applications where extreme load capacity and durability are critical. It excels in harsh environments with rough terrain or constant abuse, such as moving large machinery, equipment, or materials in settings where the caster must endure significant stress and heavy weights, ensuring reliable performance as a heavy duty industrial caster.

Is there a brake option available for the Model 2-150 with forged steel wheels?

Yes, an optional hand-activated face-contact wheel brake is available, which locks both wheels simultaneously to secure the caster in place. This brake is not designed to hold on inclines, so for applications requiring braking on slopes, alternative solutions may be necessary for this industrial caster.

Are there any special considerations when ordering the Model 2-150 with options?

When ordering the Model 2-150 with options like brakes or swivel locks, note that swivel casters with options are non-returnable. Additionally, toe guards are available upon special order, which may increase lead time due to fitting and pre-installation requirements, ensuring the heavy duty caster meets specific needs.

What is the difference between the Model 2-150 and other caster models?

The Model 2-150 is a dual wheel kingpinless caster designed for extremely high load capacities, up to 40,000 lbs per caster with forged steel wheels, setting it apart from single wheel casters or those with lower capacity ratings. Its dual wheel design provides better stability and load distribution, making it a top choice for the heaviest industrial caster applications.

Can the Model 2-150 be customized for specific applications?

Yes, Caster City offers customization options for the Model 2-150, including additional features like brakes and swivel locks. Customers can also request special orders like toe guards, though these may affect lead times. Contact Caster City for details on tailoring this heavy duty industrial caster to specific requirements.

How does the kingpinless design benefit the Model 2-150?

The kingpinless caster design eliminates the center pin, a common failure point in traditional casters under heavy loads. By removing this weak point, the Model 2-150 offers enhanced durability and reliability, making it ideal for applications where the industrial caster is subjected to significant stress and abuse, ensuring long-term performance.

Are there any safety considerations when using the Model 2-150 with forged steel wheels?

When using the Model 2-150 with forged steel wheels, ensure the floor can support the weight and is compatible with steel wheels to prevent damage. Regular maintenance, including inspections for wear and proper use of brakes and swivel locks, is crucial to prevent accidents. Operators should be trained on safe operation of this heavy duty caster, especially in environments with heavy loads and potential hazards.

Where can I find more information or purchase the Model 2-150 with forged steel wheels?

For more information or to purchase the Model 2-150 with forged steel wheels, visit the Caster City website at Caster City – Home or contact their sales team directly at sales@castercity.com. They can provide detailed specifications, pricing, and assistance with selecting the right industrial caster for your needs.
