8″ Dual Wheel Rigid Extra Heavy Duty Polyurethane on Iron – Model 2-150

FAQ

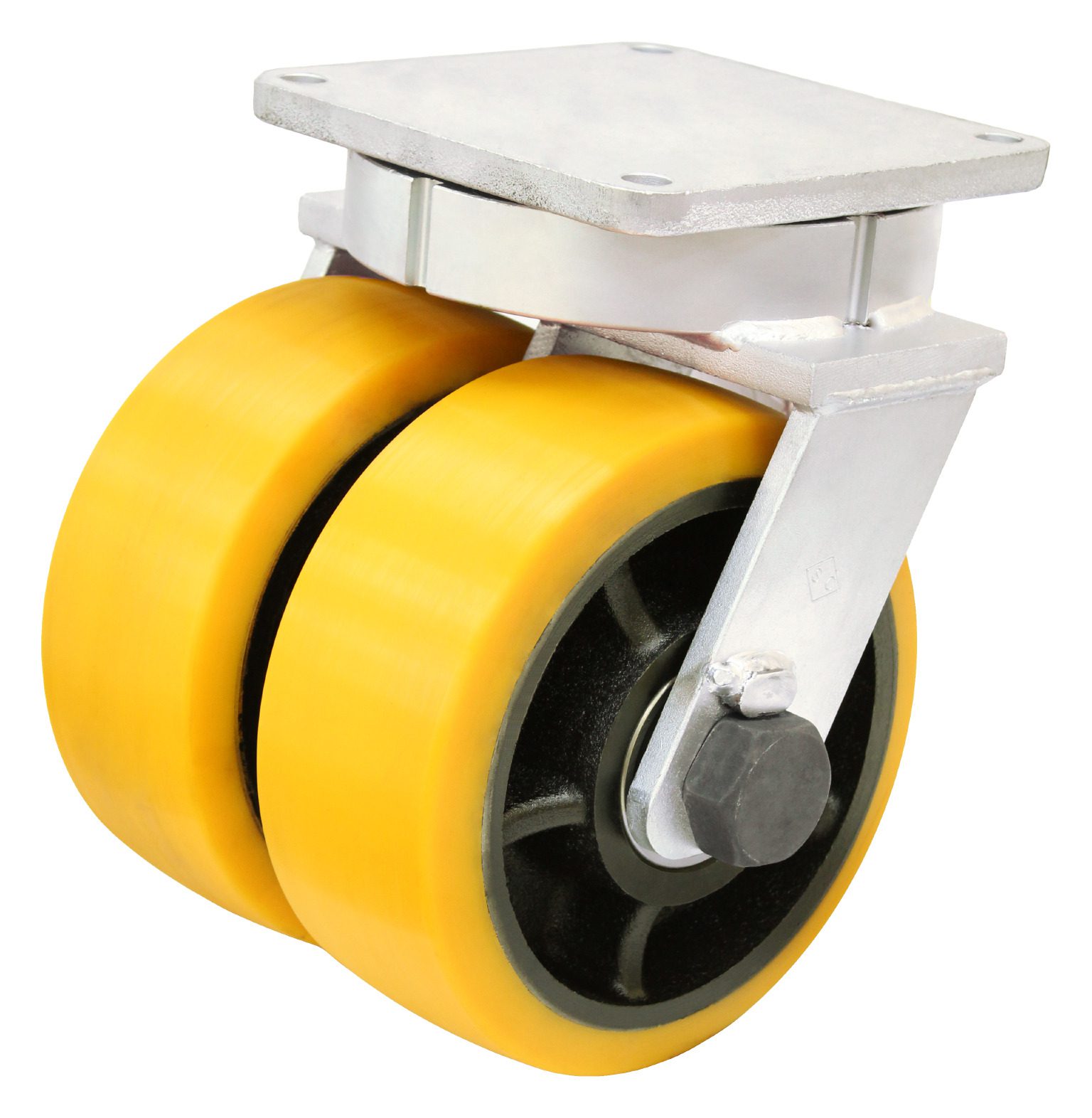

Heavy Duty Dual Wheel Caster Model 2-150 with PX Premium Polyurethane Wheel

What is the load capacity of the Heavy Duty Dual Wheel Caster Model 2-150 with the PX wheel?

The Heavy Duty Dual Wheel Caster Model 2-150 supports up to 40,000 lbs per caster with certain wheel types. When equipped with the PX premium polyurethane on iron wheel, it supports up to 16,000 lbs per caster—a significant capacity for polyurethane casters. The PX wheel is Caster City’s highest-capacity polyurethane wheel, designed to handle heavy loads while resisting internal heat buildup.

What are the dimensions of the Model 2-150 mounting plate?

The Model 2-150 mounting plate measures 8 1/2″ x 8 1/2″, with a bolt hole spacing of 7″ x 7″. It uses 5/8″ mounting bolts, ensuring a secure attachment for heavy machinery in demanding industrial settings like aerospace manufacturing facilities.

What wheel sizes are available for the Caster Model 2-150 with the PX wheel?

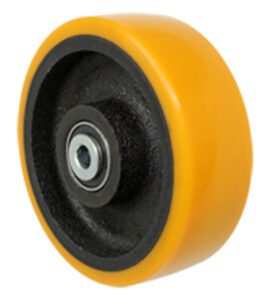

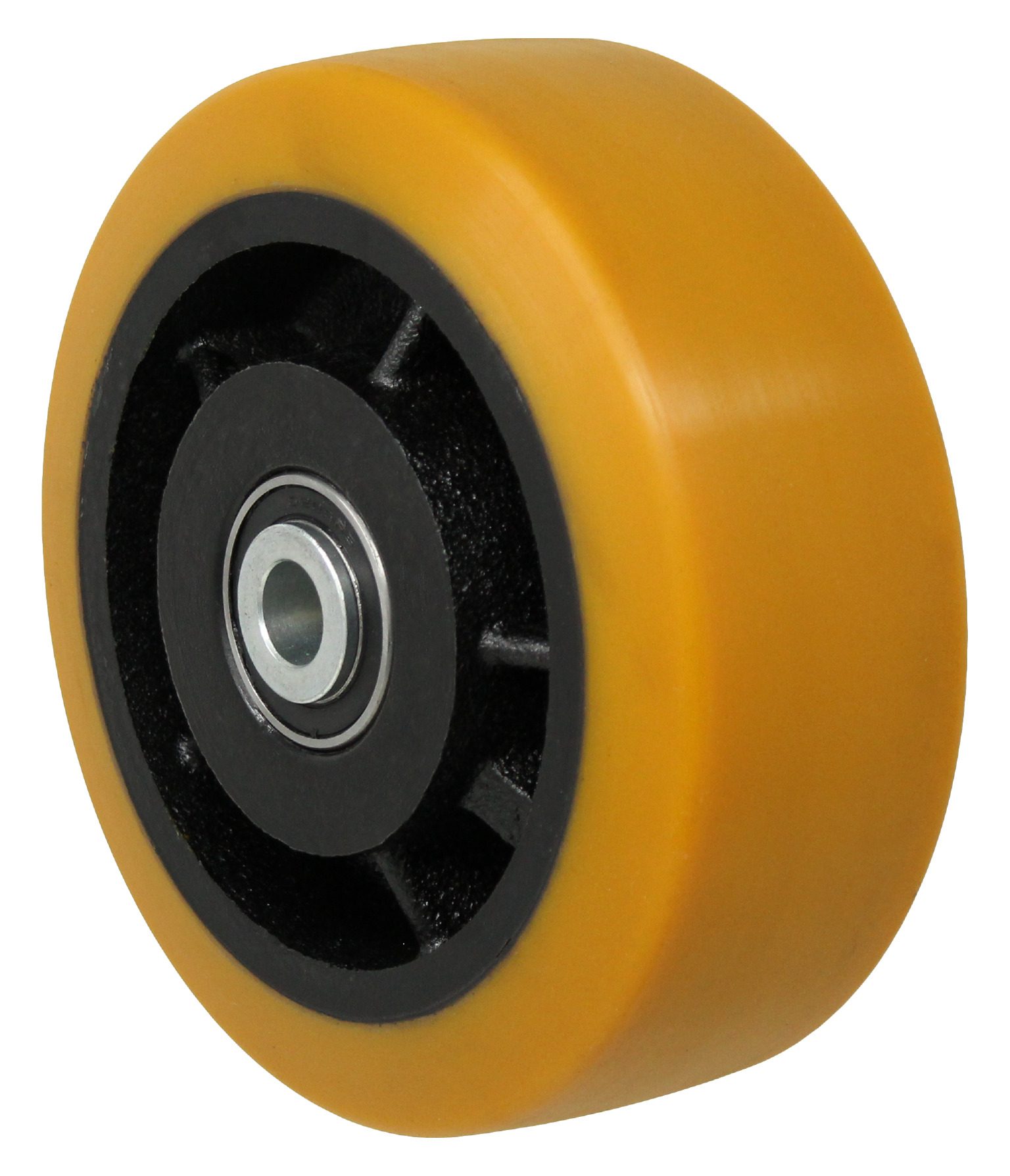

The Caster Model 2-150 with the PX premium polyurethane wheel is available in 8″, 10″, and 12″ diameters, with all wheels being 4″ wide. The PX wheel features a 1″ thick orange polyurethane tread, providing excellent floor protection and a smoother ride, especially when transitioning cargo across uneven terrain or between facilities.

What makes the PX premium polyurethane wheel different from other polyurethane wheels?

The PX industrial caster wheel features a softer, more resilient 95A Durometer polyurethane tread compared to standard 65D polyurethane wheels. This resiliency, the highest among polyurethane wheels of this size, aids in initiating motion, towing heavy cargo, and protecting sensitive components from vibrations. It’s particularly effective for applications requiring smooth transport inside and outside manufacturing facilities.

What are the benefits of the dual wheel design with the PX wheel in the Model 2-150?

The dual wheel design of the Model 2-150, paired with the PX wheel, offers a high load capacity of up to 16,000 lbs per caster with a lower overall height. The larger footprint enhances stability, distributes weight over a greater floor area, and reduces strain on multimillion-dollar epoxy floors. The PX wheel’s 1″ thick tread and differential action provide a smoother ride, protect costly floors, and make it easier to change directions, especially when towing heavy loads.

What bearing options are available for the Model 2-150 with the PX wheel?

The Model 2-150 with the PX industrial caster wheel can be equipped with either sealed precision ball bearings or tapered roller bearings. These bearing options ensure smooth operation and durability, making the caster ideal for power towing applications in high-stakes industrial environments.

What optional features are available for the Model 2-150 caster with the PX wheel?

The Model 2-150 offers a foot-activated wheel brake that locks both wheels simultaneously for secure positioning. It also includes an optional swivel lock, converting the swivel caster into a rigid caster for straight-line movement, which is useful when towing heavy cargo with mechanically powered equipment in precision manufacturing settings.

When should I choose Model 2-150 Rigid Casters with the PX wheel over swivel casters?

Model 2-150 Rigid Casters with the PX wheel are ideal for straight-line movement, such as when towing or pushing heavy loads with mechanically powered equipment in precision industrial facilities. For greater maneuverability in any direction, using four swivel casters with PX wheels allows easier positioning of cargo in tight spaces or controlled environments.

What applications are best suited for the Model 2-150 with the PX premium polyurethane wheel?

The Model 2-150 with the PX wheel is ideal for high-stakes industrial applications, such as those in aerospace or heavy manufacturing, where it supports loads up to 16,000 lbs per caster. Its resiliency ensures smooth movement over uneven terrain without jostling sensitive cargo, while the softer 95A polyurethane tread protects multimillion-dollar epoxy floors—commonly used in high-tech facilities for their level, chemical-resistant surfaces. This makes it perfect for material handling, power towing, and transporting large equipment in manufacturing and staging areas.

How does the PX wheel on the Model 2-150 protect expensive epoxy floors in high-tech facilities?

The PX premium polyurethane wheel on the Model 2-150, with its 1″ thick, 95A Durometer tread, is soft yet resilient, providing exceptional floor protection for multimillion-dollar epoxy floors found in high-tech industrial facilities. These floors, often designed with high-performance systems for level, durable, and chemical-resistant surfaces, are costly to repair. The PX wheel’s design minimizes scratches and wear, supporting up to 16,000 lbs per caster while ensuring a smooth ride that protects both the floor and sensitive cargo.

How does the PX wheel on the Model 2-150 perform on uneven terrain or during towing?

The PX premium polyurethane wheel on the Model 2-150 excels on uneven terrain due to its 1″ thick tread and resilient 95A Durometer polyurethane. This design ensures a smoother ride, reduces vibrations, and enhances stability, making it ideal for power towing heavy loads across indoor and outdoor environments in industrial settings. It prevents jostling of sensitive cargo, such as precision components, while protecting costly epoxy floors during transitions.
