Download STP FileDownload 2D File8″ High Capacity Black Nylon Swivel Wheel – Model 9 Swivel Caster
$47.14
In Stock
Please select any add ons you require for your caster and if you are selecting multiple option types, add all of the quantity for the first choice and then make your selections for the second, third, fourth, etc… choices. (Example: 2 With Brakes and 2 Without Brakes)
Technical Specifications
Wheel Diameter
8
Caster City Recommendation
Ollie Recommends!
Non-Marking
Yes
Wheel Width
2
Wheel Bearing
Precision Sealed
Maximum Capacity (lbs)
900 lbs
Overall Height
9 1/2"
Swivel Radius
6 1/4
Color
Black
Plate Fastener Type
Mounting Plate, Top Plate
Plate Mounting Type
Top Plate
Weight
8.5 lbs
Description
Plate Caster Model 9s are our most favored industrial caster because of its cost efficient price and wide selection of wheels. Under the mounting plate it has 2 rows of balls rotating on heat treated raceways. The swivel has a bolt and nut center pin welded to withstand normal damage in a manually moved equipment. Spec: center bolt diameter – 5/8”, leg thickness – 1/4”; welded on the inside and out, axle diameter – 1/2” long, hub width – 2 7/16”. This caster is built with stamped steel. The metal frames are zinc plated prevent rust, and it has oil fittings for all moveable components. Model 9 has an expansive selection of wheel brakes and swivel turn locks for most equipment. Other mounting plate sizes and wheel bearing sorts are available on demand.
DO NOT ORDER SWIVEL LOCK OR RACEWAY SEALS IF YOU ORDER THE TL – TOTAL LOCK BRAKE. THE TL BRAKE WILL NOT WORK WITH EITHER THE SWIVEL LOCK OR RACEWAY SEALS.

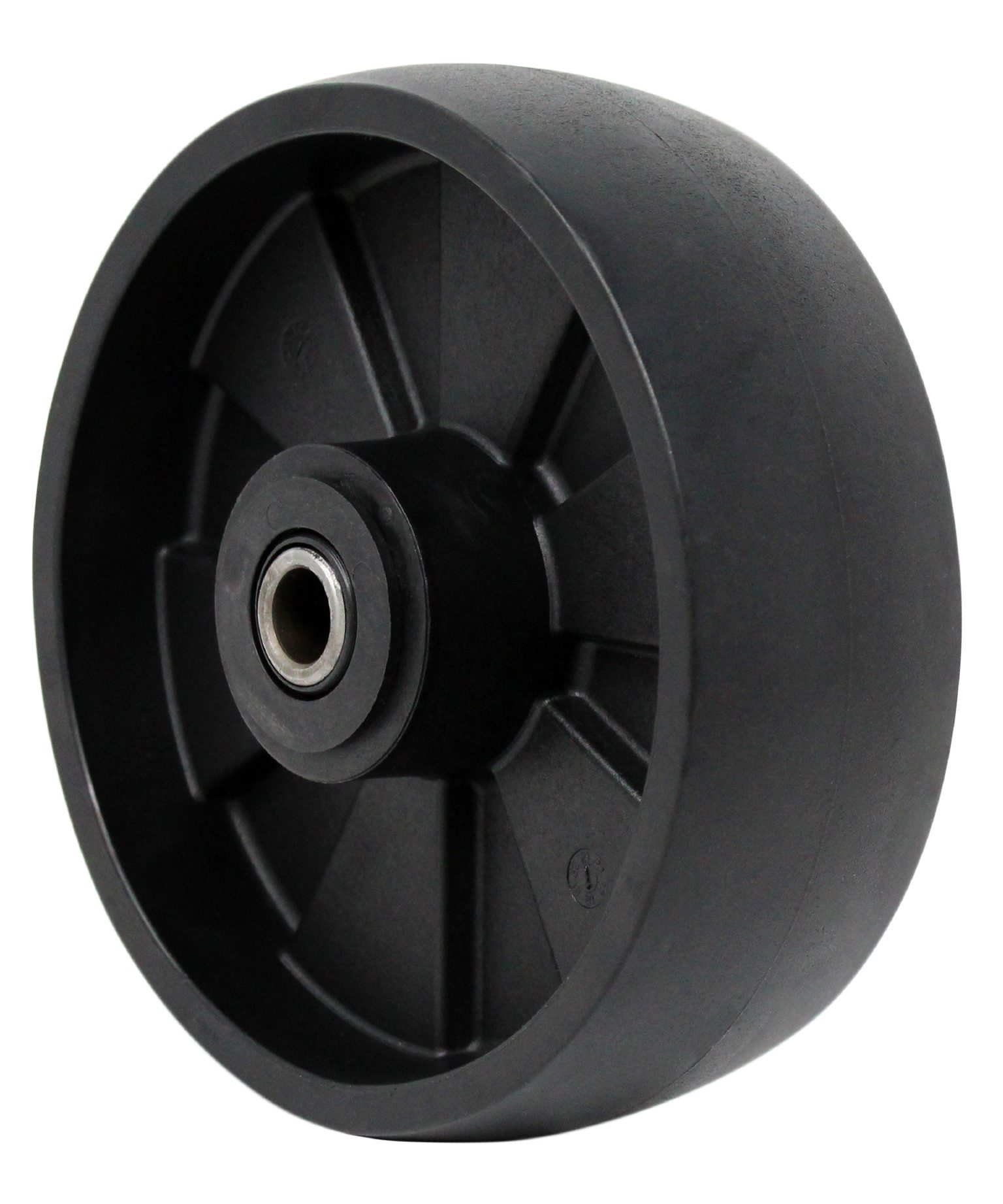

The MK Nylon Wheel in the Industrial Caster Model 9 is a top pick for heavy duty industrial casters, supporting heavy loads like metal wheels without flat spots, while weighing little and resisting chemicals, bases, steam, salt, brine, acid, blood, oils, and greases—perfect for harsh spots like manufacturing or food processing where casters and wheels need to handle shocks and impacts while protecting floors.
*This Plate Caster Model 9 contains the High Capacity Black Nylon Swivel Wheel. Precision Sealed Ball Bearings in the Wheel.
The Photo Displayed on CasterCity.com is the 8″ Caster Wheel.
This caster is available in Stainless Steel – click here. This is an excellent caster for wet or corrosive applications if your total weight exceeds 1000lbs. It comes with the same large selection of wheels, some of which are also NSF and ROHS compliant.
For more information and help placing an order, give us a call at 800-501-3808.
Application Use Plate Industrial Caster Model 9:
The Plate Model 9 is designed for medium to heavy-duty jobs and are built for floor protection, mobility, and ergonomic effectiveness in a variety of industries, such as:
Manufacturing Industry
- Assembly line carts
- Tool carts and cabinets
- Workbenches
- Assembly stations
- Die and mold carts
- Material handling carts
- Engine stands
- Transmission jacks
- Wing assembly jigs
Warehousing and Distribution
- Stock picking carts
- Shipping and receiving carts
- Flatbed carts
- Dollies
- Mobile shelving units
Automotive Industry
- Vehicle assembly line equipment
- Parts transport carts
- Tool chests
- Battery carts
- Mobile diagnostic equipment
Aerospace Industry
- Aircraft maintenance platforms
- Engine transport dollies
- Wing and fuselage assembly jigs
Food Processing and Service
- Ingredient bins
- Mixing bowls on stands
- Oven racks
- Bakery carts
- Kitchen carts
- Serving trolleys
- Laundry carts
Healthcare
- Hospital beds
- Medical carts
- Mobile diagnostic machines
Retail
- Mobile display racks
- Shelving units
- Point-of-purchase displays
- Shopping carts
Construction and Maintenance
- Mobile scaffolds
- Work platforms
- Tool carts
- Generator carts
- Compressor carts
Agriculture
- Farm machinery parts transport carts
- Greenhouse carts
Marine
- Boat mold transport carts
- Deck equipment movement
Data Centers and IT
- Server rack carts
- Mobile cabinets
Entertainment and Events
- Stage equipment carts
- Lighting and sound equipment stands
- Mobile platforms
Laboratories
- Lab carts
- Equipment stands
Printing and Publishing
- Paper roll carts
- Printing press component transport
Textile Industry
- Fabric roll carts
- Sewing machine stands
Chemical Industry
- Drum dollies
- Cylinder carts
HVAC and Electrical
- HVAC equipment carts
- Electrical panel carts
Woodworking and Metalworking
- Mobile worktables
- Saw stands
- Material handling carts
Waste Management
- Waste containers on wheels
- Recycling bins
Fitness Centers
- Mobile weight racks
- Equipment stands
Transportation Hubs
- Baggage carts
- Luggage carts
Cold Storage and Refrigeration
- Refrigerated warehouse carts
- Food processing plant equipment
FAQ
Industrial Caster Model 9 with MK Nylon Wheel
What is the Industrial Caster Model 9 with MK Nylon Wheel built for?
This heavy duty industrial caster supports up to 1,200 lbs per caster, perfect for tough settings like manufacturing, labs, or food processing where you need strong casters and wheels that resist chemicals and protect floors.
Why pick the MK Nylon Wheel for the Model 9 industrial caster?
The 2-inch wide MK Nylon Wheel on this heavy duty caster fights off chemicals, acids, bases, oils, blood, salt, and brine, takes shocks and impacts, and won’t get flat spots, keeping your floors safe.
What sizes and load capacities does the MK Nylon Wheel on the Model 9 caster come in?
This industrial caster’s 2-inch wide MK Nylon Wheel comes in 3.25”, 4”, 5”, 6”, and 8” diameters; the 6×2 and 8×2 heavy duty casters hold 1,200 lbs each, matching the bracket’s max, while smaller sizes hold less.
What bearing types can I get with the MK Nylon Wheel on this heavy duty industrial caster?
You can choose plain bore, precision sealed ball bearings, roller bearings, stainless steel ball bearings, or stainless steel roller bearings for this caster, depending on what your setup needs.
What’s good about the Model 9 swivel caster with the MK Nylon Wheel?
The Model 9 swivel caster, also in 304 stainless steel, gives you 360-degree movement, fights rust, and holds 1,200 lbs (for 6×2 and 8×2 wheels), making it great for wet or harsh spots while keeping floors safe.

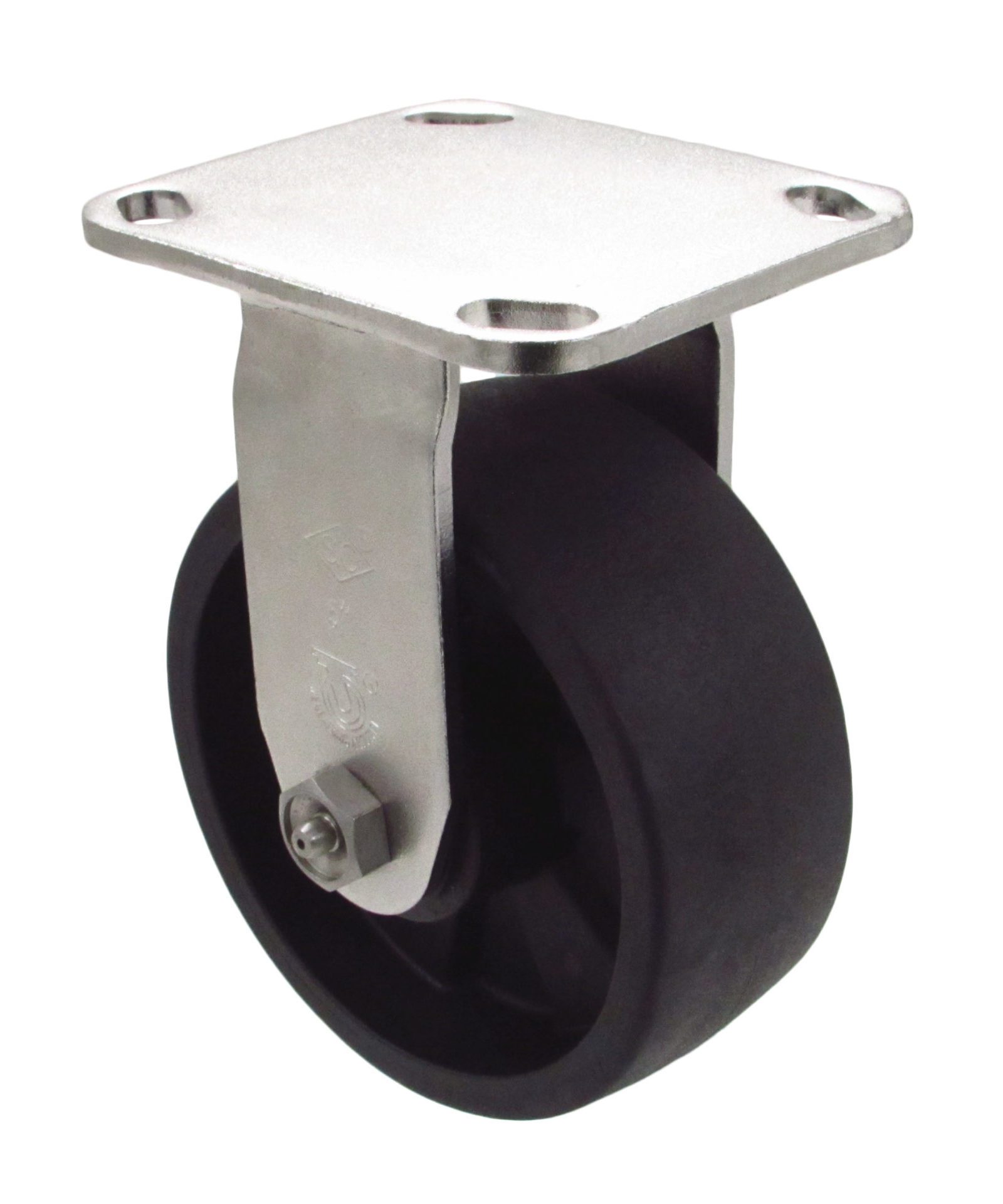

Why use the Model 9 rigid caster with the MK Nylon Wheel for straight-line movement?
The Model 9 rigid caster keeps equipment moving straight, holds 1,200 lbs (for 6×2 and 8×2 wheels), and works with the MK Nylon Wheel to handle chemicals and impacts in tough environments.
Can the Model 9 industrial caster with MK Nylon Wheel handle wet environments?
Yes, the stainless steel Model 9 caster with the MK Nylon Wheel resists corrosion and chemicals, fitting wet or hygiene-focused spots like food processing, and meets NSF and ROHS standards.
What brake options does the Model 9 swivel caster with MK Nylon Wheel have?
This swivel caster has a total lock brake (TL) and swivel lock, but the TL brake won’t work with swivel locks or raceway seals because of how it’s built.
How do you mount the MK Nylon Wheel on the Model 9 heavy duty caster?
The 2-inch wide MK Nylon Wheel, with a 2 7/16” hub width, fits on the Model 9 caster’s 1/2” diameter axle and 4 x 4-1/2” mounting plate, working with standard equipment for easy setup.
