4″ Black Polyolefin Swivel Wheel – Model K3 Swivel Caster

$27.42

PN: K3PB4X1.25-S3
In Stock
Please select any add ons you require for your caster and if you are selecting multiple option types, add all of the quantity for the first choice and then make your selections for the second, third, fourth, etcโ€ฆ choices. (Example: 2 With Brakes and 2 Without Brakes)

Please Select a Brake Option.

No BrakeTB | TB - Metal Pedal on side of wheel +$3.00PTB | PTB - Plastic Pedal on top of wheel (Easier To Use) +$5.00TL | TL - Total Locking Brake - Nylon Pedal +$6.00
Volume Pricing on Inquiry. Call us: 800-501-3808

View cart Request for Quote

Technical Specifications

4
Wheel Diameter
4
Ollie Recommends!
Caster City Recommendation
Ollie Recommends!
Yes
Non-Marking
Yes
1 1/4
Wheel Width
1 1/4
Plain
Wheel Bearing
Plain
300 lbs
Maximum Capacity (lbs)
300 lbs
5 1/8"
Overall Height
5 1/8"
3 1/4
Swivel Radius
3 1/4
Black
Color
Black
PTBTB
Zinc Brake Codes
PTB, TB
LA
Lubeย Axleย Code
LA
Mounting PlateTop Plate
Plate Fastener Type
Mounting Plate, Top Plate
Top Plate
Plate Mounting Type
Top Plate
Weight
Weight
2 lbs

Description

4″ Polyolefin ( Black ).Plain Bore – No Bearing in the Wheel. Shown with 5″ Wheel. Plate Caster Model K3 is made from stamped steel frames with a zinc plating to resist corrosion. This plate caster uses a โ…œโ€ diameter axle and the swivel caster raceway is held together by a ยฝโ€ diameter rivet. Plate Caster Model K3 caster brackets have two rows of ball bearings rotating on raceways for smoother swiveling. The swivel caster raceways are protected by a solid dust shield. This casterโ€™s larger plate size makes it easier to fabricate with, which is itโ€™s primary selling point. This plate caster performs best if you limit the load to no more than 1200 lbs on a set of 4 Model K3 casters.

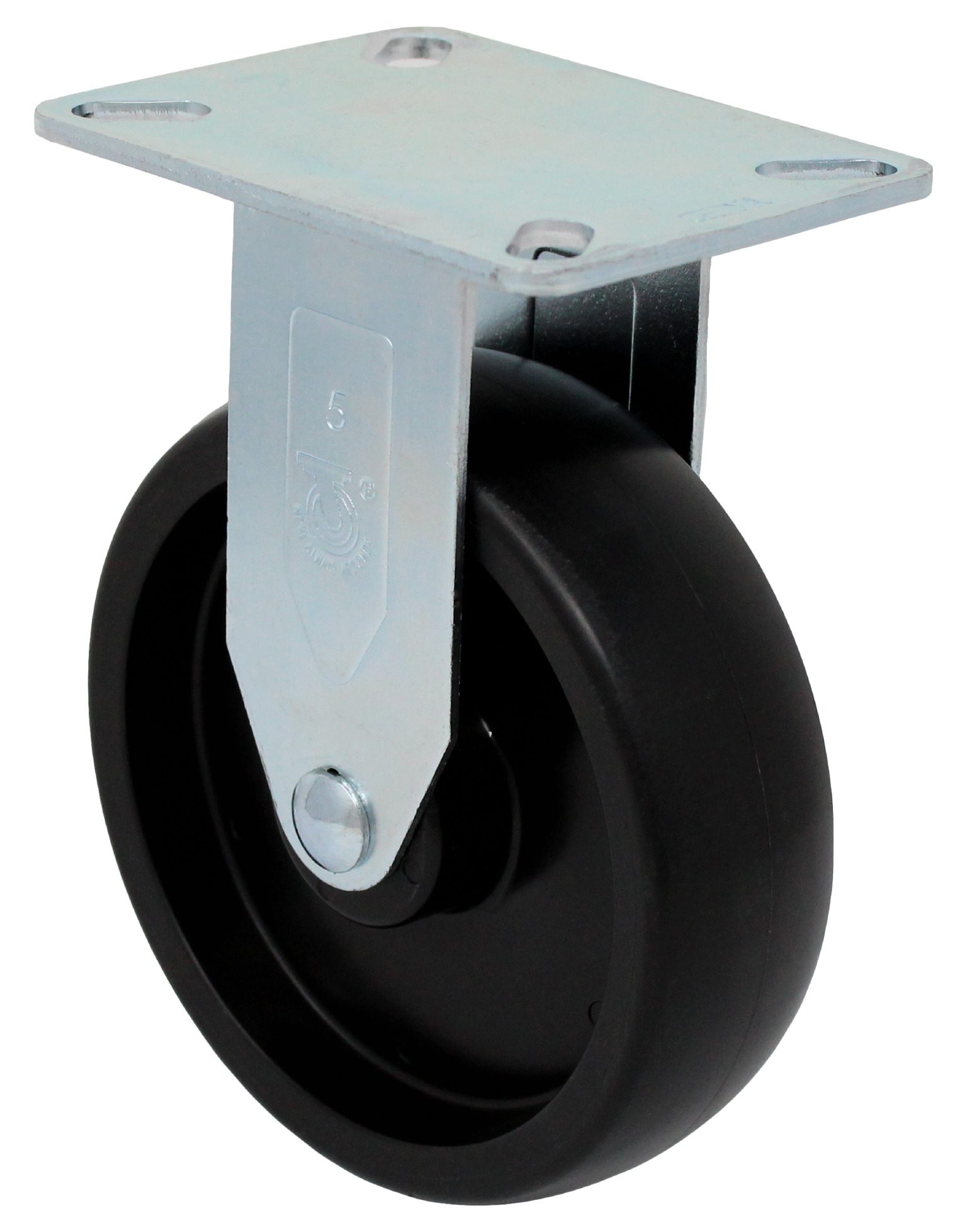

Sample of the Plate Caster Model K3:

Polyolefin Caster Wheels from Caster City

Polyolefin Caster Wheels are injection molded from a blend of thermoplastic polymers, forming a one-piece solid sanitary design that prioritizes durability and hygiene. These wheels are available with a plain bore, precision sealed ball bearings, roller bearings, or Delrin bearings for smooth operation across various light to medium-duty applications. As a cost-effective and lightweight option, polyolefin wheels are hard, non-marking, and non-conductive, offering superior resistance to water, chemicals, solvents, acids, grease, oils, and gasoline. Their unique composition ensures excellent abrasion resistance and impact absorption, making them a reliable choice for environments where sanitation and floor protection are essential.

Polyolefin Caster Wheels are particularly suited for wet and corrosive applications due to their outstanding resistance to most commonly encountered liquids, ensuring long-lasting performance. Their slightly crowned tread enhances rollability and maneuverability, and they do not develop flat spots when parked for extended periods. With a hardness of 65โ€“70 Shore D, these wheels provide floor protection, low noise, and easy cleaning, while remaining impervious to sterilization processes. However, they can become brittle in cold, dry environments like refrigerated storerooms and should not be used in freezers or heat applications above 180ยฐF during intermittent usage, such as rack washers.

Ideal for bakeries, food processing, dairies, meat packaging, laundries, supermarkets, warehouses, manufacturing plants, cleanrooms, medical facilities, and offices, these wheels excel where chemical resistance and non-marking performance are critical. Capable of handling impacts and loads up to 900 lbs per wheel depending on size, they offer economical mobility in harsh conditions. For reliable, sanitary, and floor-friendly caster solutions tailored to your needs, contact Caster City to explore custom configurations of our durable Polyolefin Caster Wheels.

FAQ

Plate Caster Model K3 with PB Polyolefin Wheel (Black, Plain Bore)

What is the Plate Caster Model K3 with PB Polyolefin Wheel?

The Plate Caster Model K3 with PB Polyolefin Wheel is a swivel plate caster or rigid plate caster featuring a black, non-marking polyolefin wheel with a zinc-plated or stainless steel bracket. With a 1.25โ€ tread width, 3โ€ to 5โ€ diameters, plain bore, and 350 lbs capacity per caster (1400 lbs for four), this industrial caster is NSF-rated, ideal for sanitary settings like food processing, hospitals, or labs.

Why choose these industrial casters for sanitary applications?

This light duty industrial caster combines a liquid-resistant, non-marking PB Polyolefin Wheel with a corrosion-resistant plate caster bracket, supporting 350 lbs. NSF-rated for wet or dry settings, itโ€™s perfect for casters and wheels in hospitals, food processing, or labs, ensuring hygiene and no flat spotting.

How does the PB Polyolefin Wheelโ€™s sanitary design benefit this plate caster?

The PB Wheelโ€™s one-piece, solid polyolefin design resists liquids and prevents contamination, paired with the swivel plate casterโ€™s stainless steel option for washdown durability. This caster excels in sanitary settings like food processing or hospitals.

How do these casters and wheels protect floors in sensitive environments?

The non-marking PB Polyolefin Wheel in this plate caster protects floors like tile or hardwood, with the light duty industrial casterโ€™s sturdy bracket ensuring controlled movement in hospitals, offices, or retail spaces, preventing floor damage.

How easy is it to roll the Plate Caster Model K3 with PB Polyolefin Wheel?

This industrial caster rolls smoothly on smooth floors at 350 lbs capacity due to the PB Wheelโ€™s hard polyolefin composition and plain bore, with the swivel plate casterโ€™s swivel action aiding maneuverability in labs or small warehouses.

Can these casters and wheels be parked under load?

Yes, the hard polyolefin wheel in this plate caster prevents flat spotting, even under prolonged loads, ideal for stationary equipment in hospitals, labs, or workshops. No specific load limit applies, but avoid excessive static loads for longevity.

Are these light duty industrial casters suitable for rough floors?

No, the PB Polyolefin Wheel in this light duty industrial caster is designed for smooth, dry or wet floors without obstructions. Itโ€™s ideal for casters in hospitals, labs, or retail settings, not rough or abusive environments.

Can the Plate Caster Model K3 with PB Wheel be used in wet environments?

Yes, the PB Wheelโ€™s liquid-resistant polyolefin and the stainless steel plate caster option make this industrial caster suitable for wet, washdown environments like food processing or labs, unlike the zinc-plated frame, which may rust.

Do these industrial casters require maintenance?

The plain bore in the PB Wheel may require occasional lubrication, while the swivel plate casterโ€™s sealed swivel bearings are maintenance-free. Regularly inspect and clean to maintain hygiene in washdown settings like labs or food processing.

What are the mounting specs for this plate caster?

The Plate Caster Model K3 has a 3-1/8โ€ x 4-1/8โ€ top plate with a 2-3/8โ€ x 3-3/8โ€ bolt hole spacing (slotted to 1-3/4โ€ x 2-15/16โ€), using 3/8โ€ bolts, easing fabrication for light duty industrial casters in various settings.

Is the Plate Caster Model K3 with PB Wheel NSF-rated for food service?

Yes, this light duty industrial caster and its PB Wheel are NSF-rated, making it ideal for casters and wheels in food service, hospitals, or labs where hygiene is critical.

How do I select the PB Polyolefin Wheel for swivel plate casters?

Choose a 1.25โ€ wide PB Polyolefin Wheel with 3โ€, 3.5โ€, 4โ€, or 5โ€ diameter and 3/8โ€ axle, featuring a plain bore for swivel plate casters like Model K3, ensuring non-marking, sanitary performance in labs or food processing.

How does this industrial caster compare to nylon casters for institutional settings?

The Plate Caster Model K3 with PB Wheel offers similar non-marking, sanitary performance to nylon casters but with a 350 lbs capacity. Nylon resists more chemicals, but this light duty industrial caster excels for standing loads in hospitals or schools.

What role does the rigid design play in this plate caster?

The rigid plate caster prevents sideways movement, aiding straight-line travel for equipment with casters and wheels, enhancing control for heavy, infrequent moves in food processing or retail, with TB, PTB, or K3A brake options for stability.

What brake options are available for this light duty industrial caster?

This plate caster offers the TB Top Lock Brake (metal pedal, side-mounted, high-temp capable, cost-effective), PTB Plastic Pedal Top Lock Brake (trailing position, easier to engage/disengage), and K3A Total Locking Brake (locks wheel and swivel, matches K3โ€™s height and plate), enhancing safety for industrial casters in hospitals, labs, or workshops.

What are the advantages of the Plate Caster Model K3 with PB Wheel?

This light duty industrial caster combines the PB Wheelโ€™s non-marking, liquid-resistant polyolefin with the swivel plate caster or rigid bracketโ€™s larger plate for easy fabrication, delivering hygienic, durable movement for casters and wheels in labs, hospitals, or offices, with TB, PTB, and K3A brake options.

How do these industrial casters benefit schools or office environments?

The Plate Caster Model K3 with PB Wheel ensures non-marking, quiet rolling and floor protection, making it ideal for light duty industrial casters in schools or offices. Its sanitary design, no flat spotting, and TB/PTB/K3A brakes suit carts in libraries or classrooms.

Why are these casters and wheels suited for retail or workshops?

This swivel plate caster supports 350 lbs with the PB Wheelโ€™s smooth, low-maintenance rolling, ideal for industrial casters in retail (e.g., display racks) or workshops (e.g., tool carts). Its non-marking, durable design with TB/PTB/K3A brakes protects floors in light-duty industrial settings.
