Technical Specifications



































Description

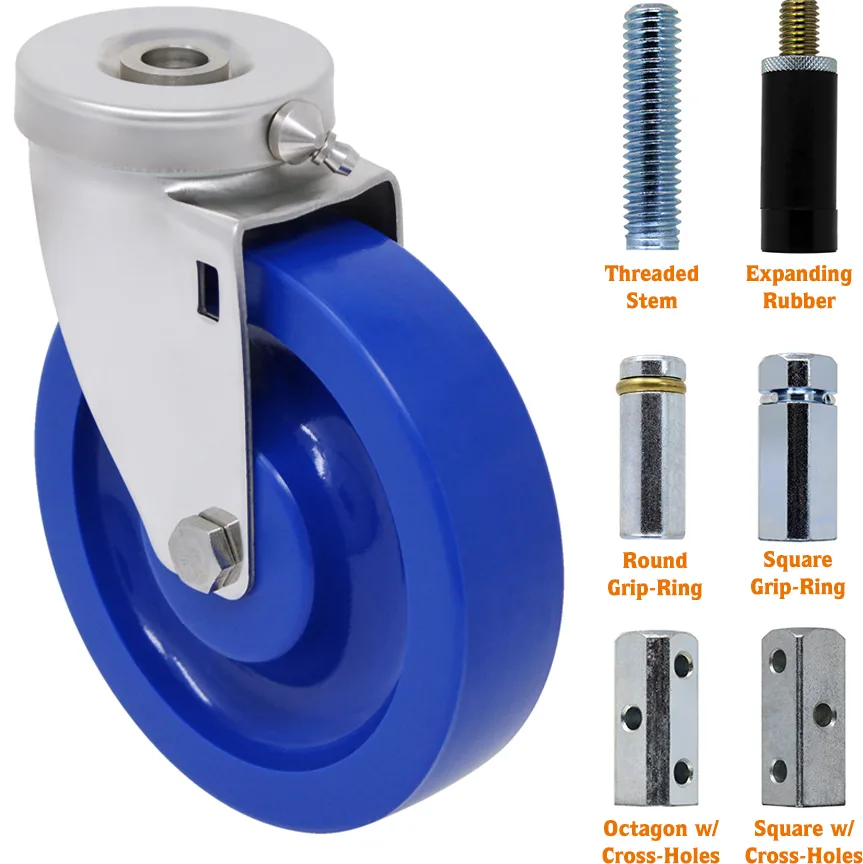

300 Lb. Maximum Capacity Each5″ All Solid Polyurethane. Swivel Bearing Seal & Grease Fitting. This Model 3 stainless steel stem caster is formed from 304 stainless stamped steel. This stainless steel stem caster uses an axle bolt with a diameter of ⅜”, and this stainless steel stem caster has it’s swivel bearing held together by a ½” rivet. Stainless Steel stem Caster Model 3 caster brackets have two rows of ball bearings rotating on raceways for smoother swiveling. There is a solid cover over the swivel raceways to shield them from dirt and dust. The Stainless Steel Stem Caster Model 3 performs best if you limit the load to no more than 1000 lbs on a set of 4 Model 3 casters.
This solid all polyurethane industrial caster wheel was developed for sanitary and washdown applications, and is capable of rolling indoors or outdoors. The blue all polyurethane (“AP”) caster wheel is manufactured in 1-¼” wide and with diameters ranging from 3”-5”. Caster City manufactures this 1-1/4″ wide (“AP”) blue all polyurethane wheel to come with a steel spanner bushing which is available in stainless steel as well upon request. The temperature range of this industrial caster wheel is -50°to 180° F and the durometer of the polyurethane is Shore 60D.
These wheels are non marking and non conductive. The absence of a metal center eliminates bond failure as a cause for wheel replacement. These caster wheels are especially suited for use with stainless steel casters in wet and corrosive applications. They are designed for use in Pharmaceutical Laboratories, Hospitals, and Food Processing Plants – wherever a clean sanitary design is desired. These wheels are not recommended for applications involving shock, overloading, abuse, obstructions, poor floors, or for storage (standing) loads.
These wheels are designed for use in a wet environment and they eliminate the possibility of tire separation.
Application Use
- Healthcare (Up to 350 lbs): Hospital beds, medical carts, IV poles — Non-marking, rubber wheels
- Education (Up to 300 lbs): Classroom chairs, library carts — Polypropylene, rubber wheels
- Offices (Up to 300 lbs): Office chairs, desks — Soft rubber, nylon wheels
- Retail (Up to 300 lbs): Display racks, shopping carts — Non-marking, polyurethane wheels
- Food Service (Up to 1250 lbs, NSF certified): Food carts, kitchen equipment — Stainless steel, high-temp wheels
- Industrial (Up to 350 lbs): Moving dollies, stocking carts — Hard rubber, nylon wheels
- Hospitality (Up to 300 lbs): Banquet tables, laundry carts — Chrome, rubber wheels
- Warehouses (Up to 1500 lbs): Shelving, carts — Polyurethane, steel wheels
- Manufacturing (Up to 350 lbs): Assembly lines, material handling — Phenolic, rubber wheels
Application Uses for Ultra High Capacity Polymer Caster Wheels:
- Material Handling
- Platform trucks for transporting heavy goods in warehouses
- Carts for moving bulk materials in distribution centers
- Dollies for relocating heavy inventory in logistics hubs
- Automated Guided Vehicles (AGVs) in automated warehouses
- Tow lines for continuous material transport in plants
- Pallet trucks for handling oversized pallets
- Container movers for shipping and receiving docks
- Manufacturing
- Assembly line carts for moving heavy machinery components
- Work-in-progress (WIP) carts for transporting parts during production
- Metal fabrication shop trolleys for steel or aluminum components
- Heavy equipment movers for relocating industrial presses
- Tooling carts for large molds or dies
- Conveyor system supports for moving oversized products
- Maintenance carts for servicing heavy machinery
- Warehousing and Distribution
- Pallet movers for high-capacity storage systems
- Inventory carts for bulk goods in e-commerce fulfillment centers
- Container transport carts for cross-docking operations
- Rack movers for repositioning heavy storage racks
- Order picking carts for large or heavy items
- Shipping crate transporters for outbound logistics
- Cold storage carts for frozen or refrigerated goods
- Aerospace
- Ground support equipment for aircraft maintenance
- Aircraft component movers for wings, fuselages, or engines
- Tool carts for heavy aviation tools in hangars
- Assembly jigs for positioning large aerospace parts
- Test equipment movers for wind tunnel or stress testing setups
- Rocket or satellite component transporters in manufacturing facilities
- Runway equipment carts for ground operations
- Automotive
- Vehicle assembly line carts for chassis or body panels
- Engine block movers in production plants
- Tire stack transporters for tire manufacturing
- Heavy parts carts for axles, transmissions, or suspensions
- Paint shop carts for moving vehicle frames
- Quality control carts for moving vehicles during inspection
- Scrap metal bins for recycling in manufacturing plants
- Defense and Military
- Ammunition carts for transporting heavy ordnance
- Equipment movers for tanks, artillery, or radar systems
- Mobile command center equipment transporters
- Field hospital equipment carts for heavy medical devices
- Supply chain carts for moving heavy military gear
- Missile component movers in defense manufacturing
- Armory carts for weapons storage and transport
- Shipbuilding and Marine
- Ship component movers for hull sections or propellers
- Dockside equipment carts for port operations
- Shipyard trolleys for moving heavy materials
- Anchor or chain transporters in marine construction
- Dry dock equipment movers for maintenance operations
- Offshore platform supply carts for heavy tools
- Submarine component movers in manufacturing facilities
- Heavy Equipment Manufacturing
- Construction equipment movers for bulldozers or excavators
- Agricultural machinery carts for tractors or combines
- Mining equipment transporters for drills or conveyors
- Industrial pump or compressor movers
- Generator or turbine component carts
- Heavy machinery assembly line carts
- Crane or hoist component transporters
- Medical and Healthcare
- MRI machine movers in hospitals or imaging centers
- CT scanner transporters for medical facilities
- Heavy hospital bed movers for patient rooms
- Surgical equipment carts for operating theaters
- Radiology equipment movers for diagnostic labs
- Pharmacy bulk storage carts for medical supplies
- Sterilization equipment transporters in clean rooms
- Agriculture
- Heavy equipment movers for tractors or harvesters
- Grain or feed carts for bulk agricultural products
- Irrigation system component transporters
- Fertilizer or chemical container movers
- Livestock equipment carts for feeding or milking systems
- Greenhouse equipment movers for hydroponic systems
- Harvesting machinery component transporters
- Construction
- Crane component movers for tower or mobile cranes
- Material handler carts for concrete or steel beams
- Scaffolding transporters for construction sites
- Heavy tool carts for jackhammers or compressors
- Precast concrete element movers for building components
- Temporary structure movers for modular buildings
- Construction waste bins for debris removal
- Mining
- Ore carts for transporting mined materials
- Drilling equipment movers for underground operations
- Conveyor system component transporters
- Heavy machinery carts for mining excavators
- Explosives storage carts for blasting operations
- Ventilation system movers for mine air management
- Rock crusher component transporters
- Energy
- Transformer movers in power plants
- Generator carts for energy production facilities
- Wind turbine component transporters in manufacturing
- Solar panel frame movers in production plants
- Oil rig equipment carts for offshore platforms
- Nuclear reactor component movers in controlled environments
- Battery storage carts for renewable energy systems
- Food and Beverage
- Bulk ingredient carts for flour, sugar, or liquids
- Processing equipment movers for mixers or ovens
- Cold storage container transporters for frozen goods
- Bottling line carts for moving heavy bottles or cans
- Packaging equipment movers for pallets or crates
- Sanitation equipment carts for cleaning systems
- Large batch transporters for food production
- Pharmaceutical and Chemical
- Clean room equipment movers for sterile environments
- Chemical reactor carts for production facilities
- Bulk chemical container transporters
- Laboratory equipment movers for heavy analyzers
- Tablet press or packaging machine carts
- Hazardous material carts for safe transport
- Sterile supply carts for pharmaceutical manufacturing
- Waste Management
- Heavy waste bin movers for industrial refuse
- Recycling container transporters for metal or plastic
- Compactor or baler component carts
- Hazardous waste carts for safe disposal
- Landfill equipment movers for waste processing
- Scrap material carts for recycling plants
- Sludge or liquid waste container transporters
- Textile Industry
- Large fabric roll movers for weaving or knitting
- Dyeing machine component carts
- Textile machinery movers for looms or spindles
- Yarn or thread bulk storage carts
- Cutting table transporters for fabric processing
- Finished garment carts for bulk transport
- Chemical treatment carts for textile finishing
- Printing and Publishing
- Printing press movers for large offset printers
- Paper roll carts for newsprint or magazines
- Binding machine component transporters
- Ink container movers for printing operations
- Finished product carts for books or catalogs
- Packaging equipment movers for printed materials
- Plate or die storage carts for printing presses
- Electronics Manufacturing
- Semiconductor equipment movers for clean rooms
- Circuit board assembly line carts
- Heavy testing equipment transporters
- Battery manufacturing carts for EV batteries
- Robotics component movers for automation systems
- Server rack transporters for data center assembly
- Precision instrument carts for electronics testing
- Miscellaneous Industrial Applications
- Stage equipment movers for theater or concert setups
- Museum exhibit transporters for large artifacts
- Retail display movers for heavy fixtures
- Theme park ride component carts for maintenance
- Film production equipment movers for heavy cameras or sets
- Data center equipment carts for servers or cooling units
- Railroad maintenance carts for track or locomotive parts
Total Locking Stainless Caster Model 3A Application Use:
- Healthcare and Medical
- Hospital beds (exposed to washdowns and cleaning agents)
- Medical carts (used in sterile, frequently cleaned areas)
- IV stands (subject to spills and cleaning)
- Surgical tables (in operating rooms with rigorous sanitation)
- Diagnostic equipment (e.g., mobile X-ray machines in damp environments)
- Patient lifts (used in wet areas like bathrooms)
- Autoclave equipment (exposed to steam and moisture)
- Food and Beverage
- Food processing equipment (e.g., conveyors, mixers in wet processing areas)
- Food service carts (in kitchens with steam and washdowns)
- Kitchen equipment (e.g., mobile ovens, mixers exposed to moisture)
- Dishwashing carts (constantly wet from cleaning)
- Brewery and winery equipment (in humid, wet fermentation areas)
- Dairy processing equipment (in high-hygiene, washdown environments)
- Hospitality
- Hotel luggage carts (in coastal hotels or pool areas)
- Housekeeping carts (used in bathrooms or wet cleaning areas)
- Banquet tables (in outdoor or humid event spaces)
- Room service carts (exposed to spills and outdoor conditions)
- Marine and Coastal
- Equipment on ships (e.g., maintenance carts exposed to saltwater)
- Dockside equipment (e.g., loading carts in salty, wet conditions)
- Coastal area equipment (e.g., beach maintenance tools in humid, salty air)
- Pharmaceutical and Laboratory
- Cleanroom carts (in sterile, washdown environments)
- Sterile equipment movers (exposed to cleaning chemicals)
- Laboratory benches on wheels (in chemical-heavy labs)
- Pharmaceutical manufacturing equipment (in areas with corrosive substances)
- Industrial and Manufacturing
- Material handling carts in chemical plants (exposed to corrosive chemicals)
- Equipment in wastewater treatment plants (in wet, corrosive settings)
- Automotive painting booths (with chemical and moisture exposure)
- Semiconductor manufacturing equipment (in cleanrooms with washdowns)
- Oil and gas industry equipment (e.g., in refineries or offshore platforms with saltwater)
- Mining equipment (in wet, muddy conditions)
- Construction equipment (in outdoor, humid, or coastal job sites)
- Transportation and Logistics
- Laundry trucks (frequently washed and exposed to moisture)
- Dollies (in wet warehouses or coastal distribution centers)
- Stock carts (in humid storage or outdoor loading areas)
- Shopping carts (in coastal or humid retail settings)
- Aviation and aerospace plant equipment (in hangars with moisture or chemicals)
- Distribution center equipment (in corrosive or wet storage environments)
- Entertainment and Retail
- Stage equipment (e.g., lighting rigs in outdoor or coastal venues)
- Lighting rigs in theaters (in humid or outdoor performance spaces)
- Retail display units (in coastal stores with salty air exposure)
- Other Applications
- Zoo and animal care equipment (e.g., cages, feeding carts in washdown areas)
- Swimming pool equipment (exposed to chlorine and moisture)
- Greenhouse equipment (in humid, wet plant-growing environments)
Our #1 goal is to help you find the best caster and wheels for your needs. If you need help finding the right casters, contact our team of professionals. You can also customize many of our casters with a variety of options such as swivel locks, wheel brakes and zerk fittings. We ship our products from assembly plants in Georgia, Pennsylvania, Virginia, Texas, Nevada and Canada. Whether you’re a one-man shop or a global giant, we can provide you with: We specialize in Business to Business, however, consumer orders are gladly accepted and we can provide you with:
- Fastest Lead Time in the Industry
- Caster performance data.
- Comparative data.
- Customized caster solutions.
- Help with caster solutions.
- Case studies by industry or application.
- Manufacturer and Distributor of over $25 million dollars in Finished Component Parts
- Majority of Orders Processed and Shipped in 2 Days or Less


Articles
September 6, 2023
