Description

The Model G15 Plate Caster Swivel is the start of our kingpinless industrial caster line with a precision machined swivel bearing. This design provides superior performance on both manually moved and mechanically powered equipment. Benefits of the kingpinless construction include easier swiveling, reduced vibration, and longer trouble free performance. The swivel casters are zinc plated for rust resistance and include lubrication fittings for all moveable parts. A broad selection of wheel brakes and swivel locks is available for most applications. We offer the same wide selection of wheels as Model 9, and in many cases the wheels carry a higher load capacity rating in the G15. One popular option is the larger swivel radius available on 6″ and 8″ wheel diameters, reducing swivel shimmy vibration and making it easier to change directions. The caster features a 1/2″ diameter axle with a locking nut. Hot-forged construction with legs welded to the swivel bearing provides long lasting strength. Ideal for solar panel manufacturing, semiconductor equipment, and cleanroom support carts. This caster can also be supplied in 304 Stainless Steel with NSF and ROHS compliant wheel options.

Where loads are too heavy for floor protective wheels, or where unusually severe service factors are present, Ductile steel industrial caster wheels will do the job. Ductile steel wheels are selected due to their ductility and tensile strength, making them the top choice for environments requiring shock absorption and reliability. These solid steel wheels are incredibly durable in normal service. Caster City manufactures all of our steel wheels with a lubrication fitting in the hub for easy maintenance and prolonged service life. We offer Ductile steel industrial caster wheels with roller bearings or sealed precision ball bearings. Ductile steel wheels like this can withstand high temperatures up to 400°F depending upon the application. For continuous temperatures above 400°F, where steel roller bearings and spanner bushings may anneal, consult our engineering team to ensure optimal performance in high-temperature applications. Ductile steel industrial caster wheels will damage most factory floors while under heavy loads, and thus are generally used on steel plate, in channel, or as v-grooved wheels rolling on an inverted angle iron track. Ideal for industrial oven and furnace carts, heavy construction equipment, and shipyard operations.

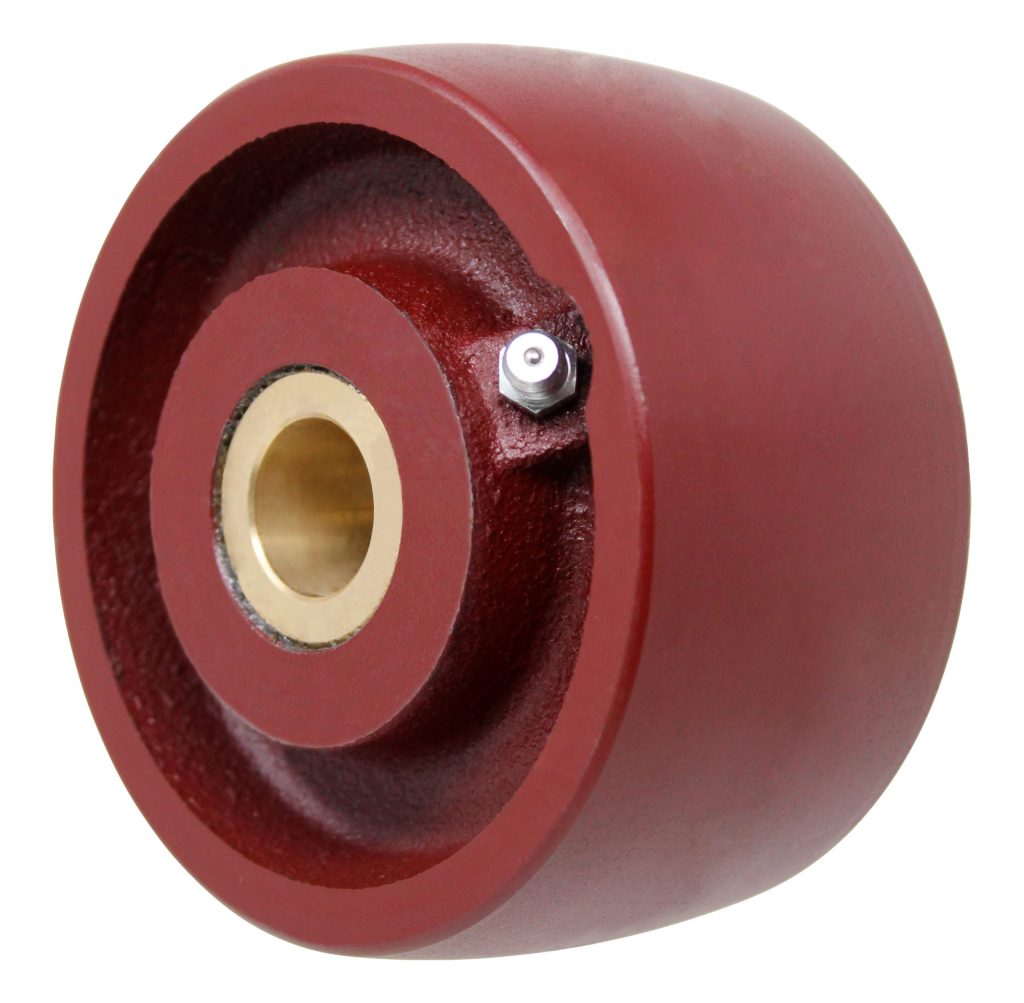

*This Plate Caster Model G15 contains a Ductile Steel Wheel

The Featured Photo displayed on CasterCity.com is with the 6″x2″ Wheel.

For more information and help placing an order, give us a call at 800-501-3808.

Applications List for Plate Caster Model G15 (Zinc-Plated, Kingpinless) with 2-Inch Wide Industrial Wheels

• Manufacturing Plants: Heavy machinery transport carts, assembly line equipment movers, tool and die carts, and mobile workstations, handling high loads and impacts in dry factory settings.
• Construction Sites: Material handling carts, scaffolding movers, concrete equipment transport, and mobile tool carts, supporting heavy construction materials on smooth surfaces.
• Automotive Assembly Lines: Parts carts, engine block transport carts, assembly line equipment movers, and tool carts, managing heavy automotive components in dry environments.
• Warehouses: Pallet jacks, storage rack movers, conveyor system carts, and heavy-duty dollies, moving large loads in dry warehouse conditions.
• Distribution Centers: Conveyor system carts, heavy-duty dollies, shipping crate movers, and inventory transport carts, handling high-volume goods in dry settings.
• Steel Mills: Equipment carts on steel plates, mobile furnace tools, and maintenance carts, supporting heavy loads in high-impact, dry environments.
• Foundries: Mobile mold carts, casting equipment movers, and maintenance tool carts, managing heavy loads in dry, high-impact foundry settings.
• Aerospace Manufacturing: Component transport carts, mobile jigs and fixtures, and assembly line equipment movers, handling heavy aerospace parts in dry factory conditions.
• Mining (Dry Areas): Ore cart movers in dry zones, mobile drilling equipment carts, and maintenance tool carts, supporting heavy mining equipment in non-corrosive areas.
• Waste Management (Dry Areas): Large waste bin movers, mobile recycling equipment, and dry waste material transport carts, managing heavy waste loads in dry environments.
• Semiconductor Manufacturing (Dry Areas): Wafer handling carts, photolithography equipment movers, and cleanroom furniture, supporting heavy loads in dry, controlled environments.
• Textile Industry (Dry Areas): Fabric roll transport carts, mobile looms, and maintenance tool carts, handling heavy textile equipment in dry factory settings.
• Pulp and Paper Industry (Dry Areas): Paper roll transport carts, mobile processing equipment, and maintenance carts, managing heavy loads in dry, non-corrosive areas.
• Agricultural Processing (Dry Areas): Fertilizer transport carts, grain bin movers, and mobile storage units, supporting heavy loads in dry agricultural settings.
• Retail and Logistics: Heavy-duty stock carts, warehouse shelving movers, and delivery equipment carts, handling large loads in dry retail and logistics environments.
• Entertainment Industry: Stage equipment movers, lighting rig transport carts, and prop carts, supporting heavy loads in dry, controlled settings like studios or theaters.
• Heavy Equipment Rental: Mobile generator carts, compressor movers, and equipment transport carts, handling heavy rental equipment in dry environments.

Ductile Steel Caster Wheels from Caster City

Caster City’s Ductile Steel Industrial Caster Wheels are designed for heavy-duty applications where loads surpass the capacity of floor-protective wheels or severe service conditions are present. Ideal for industrial and manufacturing settings where floor wear is secondary to the critical tasks performed, these wheels are available in 2”, 3”, and 4” widths and diameters ranging from 4” to 16”. With high ductility and tensile strength, our ductile steel wheels absorb shocks and impacts without failure, ensuring reliable performance in rugged environments. For precise, guided movement, we offer a V-groove design that rolls smoothly on inverted angle iron tracks, providing stable and controlled operation in demanding conditions.

These Ductile Steel Industrial Caster Wheels are built for exceptional durability, featuring either roller bearings or sealed precision ball bearings, with load ratings determined solely by bearing capacity. Each wheel includes a lubrication fitting in the hub for easy maintenance and prolonged service life. Capable of withstanding temperatures up to 400°F depending on the application, these solid steel wheels are well-suited for challenging environments. For continuous temperatures above 400°F, where steel roller bearings and spanner bushings may anneal, consult our engineering team to ensure optimal performance in high-temperature applications.

While Ductile Steel Industrial Caster Wheels excel at handling substantial loads in harsh conditions, they can damage most factory floors under heavy loads. To mitigate this, they are typically used on steel plating, in metal channels, or as V-grooved wheels on angle iron tracks to protect costly flooring. Compared to Gray Iron wheels, our ductile steel wheels offer superior ductility and tensile strength, making them the top choice for environments requiring shock absorption and reliability. Contact Caster City for custom configurations to meet your heavy-duty needs with our durable, high-capacity ductile steel wheels.
