Technical Specifications
Overall Height
10-1/8"
ISO 9001
ISO 9001:2015 Certified
Swivel Radius
7-1/2"
Maximum Capacity (lbs)
1200 lbs
Durometer
80-85A ± 5
Color
Orange
Wheel Diameter
8"
Wheel Width
2"
Weight
12 lbs
Description
The Maintenance-Free Swivel Caster for Tow Line Applications is built for strength, precision, and ease of movement in demanding industrial environments. Designed for automotive assembly, aerospace, and manufacturing systems, it combines heavy-duty construction with effortless swivel action. A single 8-inch orange polyurethane wheel powers loads up to 1,200 pounds with low push and pull force. The thick, soft 80A crown tread delivers a smooth, quiet ride while rejecting debris that could damage floors or slow performance. Its extended 7.5-inch swivel radius reduces effort by nearly half, allowing easy maneuvering in tight spaces or continuous-motion towline systems.
This caster is made to last. The 4.5-by-6.25-inch mounting plate with a 3/8-inch top plate and 5/16-inch cold-forged steel legs provides exceptional strength and stability. Double welding ensures solid support even under high load conditions. Maintenance-free bearings eliminate downtime and service costs: precision sealed ball bearings in the wheel, tapered roller bearings in the upper raceway for high-speed axial loads, and thrust ball bearings in the lower raceway for radial and thrust support. The result is a caster that performs quietly, rolls easily, and requires no lubrication.
The non-marking polyurethane wheel protects floors while maintaining traction and smooth movement. Available in multiple diameters and widths, it supports up to 2,500 pounds per caster depending on configuration. A higher-grade yellow zinc coating offers long-term corrosion resistance, giving the caster a bright, professional finish that resists moisture and cleaning chemicals. Rated for temperatures from -20°F to 240°F, it performs in hot paint booths, refrigerated spaces, and everything in between.
Applications Use
This caster excels in demanding settings. Here’s where it stands out:
- AGV Equipment: Lowers rolling resistance to cut battery drain, extending runtime in warehouses and factories.
- Automotive Assembly Lines: Handles heavy loads in tight spaces with easy swiveling, boosting efficiency.
- Aerospace Cleanrooms: Non-marking wheels and corrosion-resistant coating meet strict cleanliness standards.
- Automotive Paint Booths: Resists chemicals and high temperatures while protecting floors.
- Tugline Systems: Supports heavy loads in continuous-motion logistics hubs.
- Food Processing Plants: Yellow zinc coating and sealed bearings withstand washdowns and meet hygiene rules.
- Hospitals: Quiet, non-marking wheels protect floors and keep environments calm.
- Manufacturing Floors: Moves heavy machinery or pallets with less effort, improving worker comfort. Its versatility makes it ideal for any industry needing reliable, low-maintenance mobility.
Ideal for AGVs, towline systems, and logistics carts, this caster cuts battery drain by lowering rolling resistance and reducing start-up force. It glides easily through assembly lines, aerospace cleanrooms, and warehouse operations, helping keep your equipment efficient and your maintenance costs low. The quiet rolling action also improves workplace comfort in hospitals, food plants, and production floors where noise control matters.
Why Yellow Zinc?
The yellow zinc coating is a major upgrade. Standard bright zinc plating wears off faster in wet or chemical-heavy settings, causing rust. This higher-grade yellow zinc is thicker, resisting moisture, salts, and cleaning chemicals for more duty cycles. It’s perfect for food processing, marine environments, or outdoor use. The bright yellow finish gives equipment a clean, professional look, setting it apart from standard-duty casters. This coating ensures your casters stay functional and attractive for years.
This maintenance-free swivel caster is a powerhouse for industries needing reliable, low-maintenance mobility. Its robust 3/8-inch top plate, 5/16-inch steel legs, and flexible bolt pattern conquer tough setups. The extended swivel radius and precision bearings cut effort and battery drain, while the yellow zinc coating ensures durability and a sharp look. From AGVs to cleanrooms, it delivers real results. Choose this caster for a long-lasting, hassle-free solution that keeps your operations moving smoothly.
Order Today:
If you need a caster that saves time, reduces energy use, and delivers dependable performance, this maintenance-free swivel caster is the right upgrade. It’s designed to handle heavy loads without greasing, squeaking, or slowing down your workflow. Order now or contact Caster City at 1-800-501-3808 or sales@castercity.com to discuss load requirements and application details. Reliable movement starts with components you can trust, and this caster is built to keep your operation moving smoothly for years.
FAQ
AGV-UXO-8-SWIVEL Kingpinless High Performance Swivel Caster FAQ
What is the AGV-UXO-8-SWIVEL caster, and why choose it?
As noted in our , the AGV-UXO-8-SWIVEL is a kingpinless high performance swivel caster with extended long lead, powering 1,200 lbs. via a single 8″ orange polyurethane wheel (AGV-UXO-8). Its industry-leading push/pull force, thick 80A Shore hardness crown tread, and maintenance-free bearings deliver a quiet, debris-rejecting ride, per our . Trusted in aerospace and automotive production, it excels in AGV equipment, towline routes, and tugline tasks, saving battery life. Need a custom fit? Call 1-800-501-3808 for a quote!
What industries can use the AGV-UXO-8-SWIVEL kingpinless caster?
Our highlight its versatility across industries:
- Aerospace production: Glides debris-free in cleanrooms and hangars for precision.
- Automotive production: Protects paint booth floors with shock-absorbing rolls.
- Manufacturing: Powers heavy loads on towlines in high-traffic production zones.
- Warehousing: Ensures tugline efficiency and floor safety in storage facilities.
- Logistics: Handles indoor/outdoor towline runs for seamless distribution.
As our notes, it’s trusted where reliability matters. Got a specific industry? Email sales@castercity.com!
How much weight can the AGV-UXO-8-SWIVEL caster support?
Per our , this caster supports 1,200 lbs. total with its AGV-UXO-8 wheel, ideal for AGV systems, aerospace carts, automotive setups, or towlines in manufacturing and logistics. The 4-1/2″x6-1/4″ mounting plate and tapered roller/thrust ball bearings ensure stability, as our highlights. Need capacity advice? Call 1-800-501-3808 to discuss your project!
What are the key features of the AGV-UXO-8-SWIVEL caster?
Our list its standout qualities:
- Industry-leading push/pull force: Self-energizing for effortless 1,200 lbs. movement.
- Thick 80A polyurethane tread: Absorbs shocks, rejects debris, ensures quiet rolls.
- Maintenance-free bearings: Precision sealed ball bearings need zero upkeep.
- Kingpinless swivel: Offers a 7-½” swivel radius for towline and AGV precision.
- Tapered & thrust bearings: Handle high-speed and heavy-load thrust in production.
- Non-rusting heatsink hub: Boosts durability in aerospace and automotive tasks.
Trusted in aerospace and automotive production, per our . Ready for top performance? Request a quote at sales@castercity.com!
Why is the AGV-UXO-8-SWIVEL ideal for AGV equipment?
Our explains its self-energizing AGV-UXO-8 wheel cuts resistance, extending battery life in automated guided vehicle (AGV) systems. The thick polyurethane tread rejects debris, while the extended long lead and kingpinless swivel ensure precise tracking, per our . Maintenance-free bearings keep AGVs reliable in manufacturing, warehousing, and logistics. Want to boost your AGVs? Call 1-800-501-3808 for a custom solution!
How does this caster protect floors in production environments?
As our note, the AGV-UXO-8 wheel’s thick 80A polyurethane tread absorbs shocks, preventing scuffs or cracks in automotive paint booths and aerospace cleanrooms. Unlike hard wheels, it guards floors during towline or tugline runs in warehousing or logistics, with debris-rejecting tread keeping surfaces clean, per our . Concerned about floor wear? Email sales@castercity.com to learn more!
What makes the AGV-UXO-8-SWIVEL’s push/pull force industry-leading?
The self-energizing design, highlighted in our , minimizes effort to move 1,200 lbs., outperforming standard casters. Maintenance-free precision sealed ball bearings ensure smooth starts, while tapered roller and thrust ball bearings handle thrust for tugline stability, per our . It’s ergonomic for towline and tugline tasks in aerospace and automotive production. Need ergonomic power? Call 1-800-501-3808 for a quote!
Can the AGV-UXO-8-SWIVEL handle debris-heavy environments?
Absolutely! Our confirm the thick polyurethane crown tread and resilient 80A poly shed dust, chips, and grit, ideal for aerospace hangars, manufacturing floors, and logistics towlines. This debris-rejecting design, per our , keeps rolls clean and smooth, protecting floors in high-traffic automotive or warehousing zones. Dealing with debris? Contact us at sales@castercity.com for solutions!
Is the AGV-UXO-8-SWIVEL suitable for indoor and outdoor use?
Yes, our show the 8″ AGV-UXO-8 wheel handles indoor and outdoor settings seamlessly. Its thick polyurethane tread and non-rusting aluminum hub tackle aerospace cleanrooms, automotive shops, and outdoor towline routes in logistics, as our notes. The kingpinless swivel and 7-½” radius ensure agility across surfaces. Need versatility? Call 1-800-501-3808 to discuss your needs!
How quiet is the AGV-UXO-8-SWIVEL caster?
Per our , the AGV-UXO-8 wheel’s soft 80A poly, minimal crown tread contact, and tophat-equipped bearings deliver ultra-quiet operation. Our highlights its suitability for noise-sensitive aerospace production, automotive paint booths, and AGV setups in manufacturing, cutting vibrations under 1,200 lbs. Want quieter rolls? Email sales@castercity.com for details!
Does the AGV-UXO-8-SWIVEL caster require maintenance?
No maintenance needed! The AGV-UXO-8 wheel’s precision sealed ball bearings are upkeep-free, as are the caster’s tapered roller and thrust ball bearings, per our . The debris-rejecting thick tread resists wear, ensuring durability in aerospace, automotive, warehousing, and logistics tasks, as noted in our low-maintenance casters? Call 1-800-501-3808 for a quote!
Why is it trusted in aerospace and automotive production?
Our emphasizes trust in aerospace and automotive production due to its precision and reliability. The kingpinless swivel, extended long lead, and thick 80A tread deliver debris-free, floor-protecting rolls in cleanrooms, hangars, and paint booths, while towline and tugline efficiency shines in manufacturing, per our . Seeking trusted reliability? Email sales@castercity.com!
What makes the kingpinless swivel design unique?
The kingpinless swivel, per our , eliminates kingpin wear for lasting durability, offering a 7-½” swivel radius for agile AGV, towline, and tugline tasks. Supported by tapered roller and thrust ball bearings, it ensures precision in aerospace and automotive production, as our highlights. Curious about swivel perks? Call 1-800-501-3808 for details!
How do the mounting plate and swivel radius improve performance?

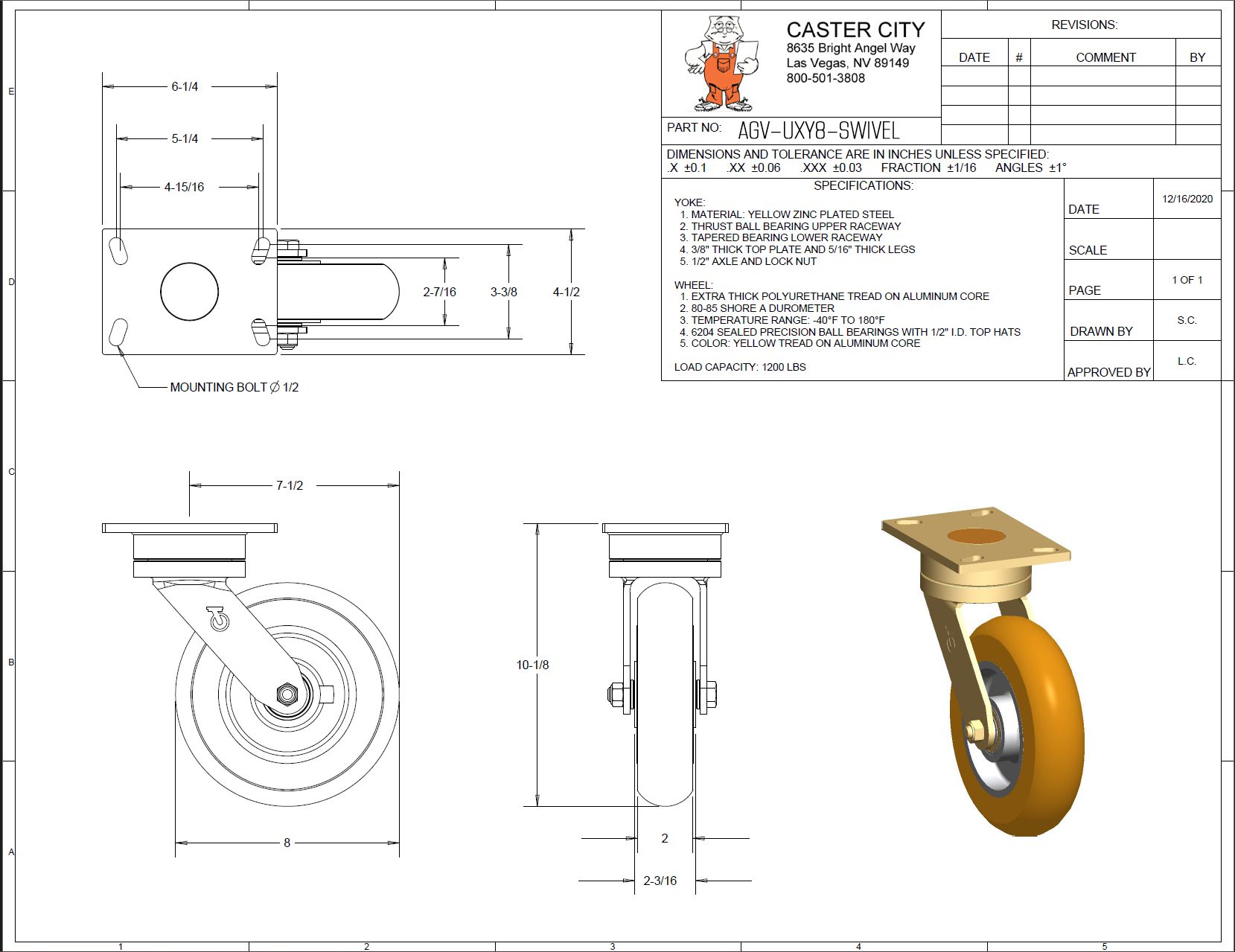

Our detail the 4-1/2″x6-1/4″ mounting plate with a bolt pattern (2-7/16″x4-15/16″ to 3-3/8″x5-1/4″) for secure AGV, aerospace, and automotive setups. The 7-½” swivel radius, noted in our , allows tight turns in warehousing or manufacturing spaces, boosting towline and tugline efficiency. Need a perfect fit? Email sales@castercity.com for specs!
What role does the AGV-UXO-8 wheel play in this caster?

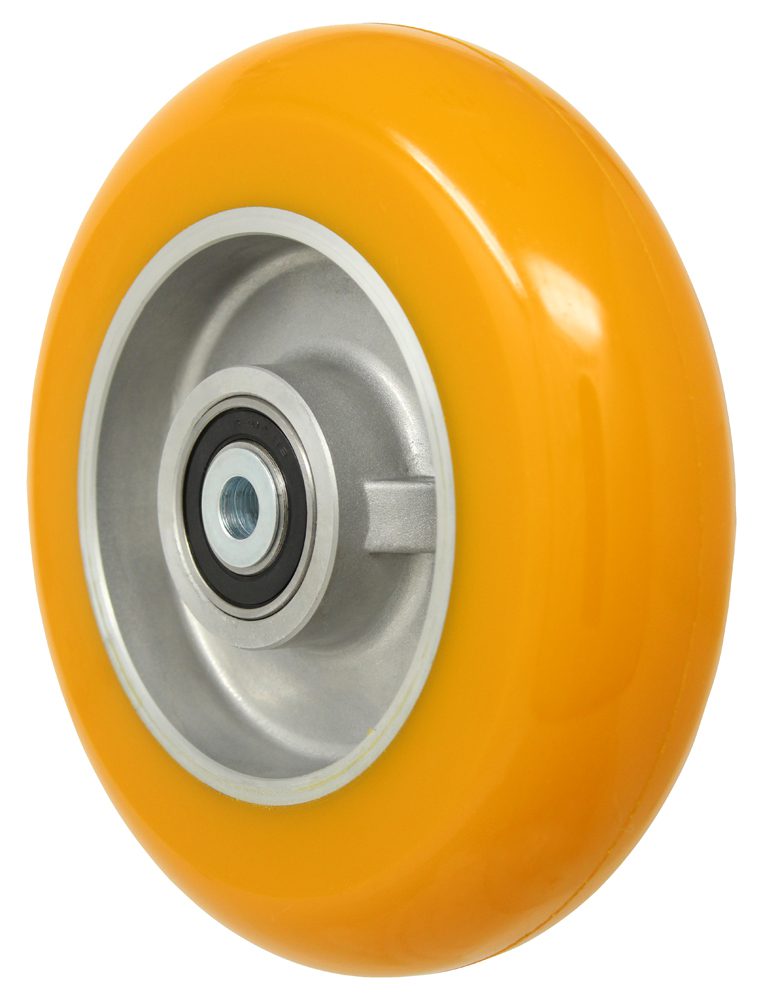

The AGV-UXO-8 is the 8″ orange polyurethane wheel driving the AGV-UXO-8-SWIVEL, delivering 1,200 lbs. capacity, per our . Its thick 80A tread, maintenance-free bearings, and self-energizing design ensure quiet, shock-absorbing, debris-rejecting rolls for AGV, towline, and tugline tasks in aerospace and automotive production, as our notes. Interested in AGV-UXO-8? Call 1-800-501-3808 for a quote!
How does this caster compare to other AGV or towline casters?
Our underscores its edge: superior push/pull force and a thick 80A tread outperform standard casters in debris rejection and floor protection. The kingpinless swivel, extended long lead, and dual bearing system, per our , deliver precision for AGV, aerospace, automotive, and logistics tasks, trusted over competitors. Want the best caster? Email sales@castercity.com!
Where can I buy the AGV-UXO-8-SWIVEL caster, and how do I get pricing?
Buy through Caster City’s tailored solutions with custom quotes for AGV, towline, aerospace, automotive, or warehousing needs. Contact us at sales@castercity.com or call 1-800-501-3808 to discuss specs and pricing, ensuring the perfect AGV-UXO-8-SWIVEL fit.
