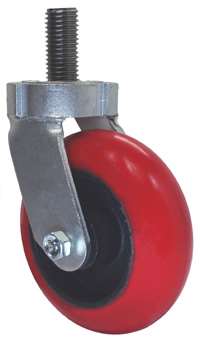

4″ Crown Polyurethane on Iron – Stem Caster G15

FAQ

What is the Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel, and what’s it used for?

The Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel is a robust industrial caster shipped from Texas, Ohio, or Washington, designed for heavy-duty applications with a capacity of up to 1,500 lbs per caster, suitable only for infrequently moved manual applications with no abuse. It features precision machined swivel bearings with a heat-treated raceway and no center pin, ensuring easier swiveling, reduced vibration, and longer trouble-free performance. The caster includes 1/4″ thick legs welded inside and out, a 1/2″ diameter hollow bolt axle with lock nut, and a zinc-plated finish for rust resistance, with zerk grease fittings for swivel and wheel bearings to facilitate maintenance. It offers fastener type options: threaded stems (TST1: 3/8″ – 10 x 2 1/2″, TSS7: 3/4″ – 10 x 4 1/2″, TST2: 1″ – 8 x 2 1/4″, TSC7: 1″ – 8 x 4″, TST8: 1″ – 8 x 8″ Long) and plain round stems (RDL2: 3/4″ x 4″, RDL3: 7/8″ x 4″, RDL4: 1″ x 4″, RDL5: 1 3/8″ x 4″), supporting 2″ wide “PCI” wheels in 4”, 5”, 6”, and 8” diameters with overall heights of 4” x 2” = 5-7/16”, 5” x 2” = 6-5/16”, 6” x 2” = 7-5/16”, and 8” x 2” = 9-5/16”. The “PCI” wheel’s Flex Compound polyurethane elastomer (85 Shore A durometer), chemically bonded to a heavy cast iron core, provides a semi-cushioned ride, excellent floor protection, and a crown tread that reduces surface friction for easier turns and rolling effort. Threaded stems should not be used as leveling devices, and capacity ratings assume weight is directly on the swivel bearing. It’s ideal for manually moved equipment like material handling carts and warehouse setups on dry factory floors, with optional brakes for added safety. Contact us at sales@castercity.com or 800-501-3808 for tailored recommendations.

What’s the load capacity of the Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel?

The Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel supports up to 1,500 lbs per caster under ideal manual conditions (up to 3 mph on smooth floors) for infrequently moved applications with no abuse, with the “PCI” wheel offering up to 1,000 lbs capacity. The crown tread enhances rolling ease, but capacity ratings are based on weight directly on the swivel bearing, and threaded stems should not bear weight above the bearing. Exceeding this limit or using it with powered equipment may reduce capacity—contact us at sales@castercity.com or 800-501-3808 for specific ratings.

What wheel sizes are available for the Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel?

The Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel accommodates 2″ wide “PCI” wheels in 4”, 5”, 6”, and 8” diameters, with overall heights of 4” x 2” = 5-7/16”, 5” x 2” = 6-5/16”, 6” x 2” = 7-5/16”, and 8” x 2” = 9-5/16”, tailored to the stem mount configuration for a semi-cushioned, low-effort ride.

What materials are used in the Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel?

The Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel features a zinc-plated steel frame for rust resistance, 1/4″ thick legs welded inside and out, a 1/2″ diameter hollow bolt axle with lock nut, and fastener type options (threaded and plain round) for secure mounting. The “PCI” wheel has a non-marking Flex Compound polyurethane elastomer tread with a crown design and 85 Shore A durometer, chemically bonded to a heavy cast iron core, providing durability and floor protection. Zerk grease fittings ensure maintenance ease—contact us for additional material details.

What bearings are used in the Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel?

The Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel uses precision machined combination load and thrust bearings with a heat-treated raceway, coming standard with roller bearings and offering sealed precision ball bearings as an option to minimize friction and enhance rolling effort with the crown tread. For specific needs, contact us at sales@castercity.com or 800-501-3808.

What brake options are available for the Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel?

The Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel offers the following brake options:

No Brake: Standard option with no additional cost.
TB – Top Lock Brake – Pedal on side of wheel: Adds $10.00, providing a pedal-activated lock.
FCB – Heavy Duty Weld On Face Contact Brake: Adds $50.00, a robust weld-on brake for enhanced stopping power.
TL – Total Lock Brake: Adds $25.00, offering a comprehensive lock for both wheel and swivel.
UFCB – Universal Face Contact Brake: Adds $20.00, a versatile face contact brake. These options enhance safety for manual applications—contact us for installation guidance.

Can the Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel handle wet or corrosive environments?

The Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel’s zinc-plated steel frame resists rust, with potential stainless steel options for wet or corrosive environments—contact us for availability. The “PCI” wheel’s polyurethane elastomer offers some chemical resistance, suitable for manual use within its -40°F to 180°F temperature range.

Which industries use the Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel?

The Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel is used in warehouses, manufacturing plants, food processing facilities, automotive shops, healthcare facilities, retail storage, construction sites, aerospace, defense, pharmaceuticals, electronics assembly, textile manufacturing, marine engineering, renewable energy installations, heavy equipment repair shops, and logistics hubs, ideal for infrequently moved manual equipment like material handling carts and warehouse setups on dry factory floors, where the crown tread reduces rolling effort.

How do I maintain the Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel for long-term use?

The Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel requires greasing the zerk fittings in the raceway and wheel bearings regularly to ensure smooth, quiet performance in manual applications. Avoid exceeding 1,500 lbs per caster or 1,000 lbs per wheel, and keep within the -40°F to 180°F range to prevent damage to the polyurethane bond or rolling efficiency.

Can the Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel be used with powered equipment?

The Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel is recommended only for manually moved applications and not suitable for powered equipment due to its 1,500 lbs capacity limit under non-abusive conditions. For powered use, contact us at sales@castercity.com or 800-501-3808 for alternative models.

What size is the stem on the Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel?

The Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel offers threaded stems (TST1: 3/8″ – 10 x 2 1/2″, TSS7: 3/4″ – 10 x 4 1/2″, TST2: 1″ – 8 x 2 1/4″, TSC7: 1″ – 8 x 4″, TST8: 1″ – 8 x 8″ Long) and plain round stems (RDL2: 3/4″ x 4″, RDL3: 7/8″ x 4″, RDL4: 1″ x 4″, RDL5: 1 3/8″ x 4″), allowing flexible mounting options. Contact us for compatibility with your equipment.

Where can I buy the Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel?

The Heavy Duty Stem Caster G15 with PCI Crown Tread Polyurethane on Cast Iron Core Wheel is available at www.castercity.com or get more details there, shipped from Texas, Ohio, or Washington. For custom setups or questions, call Caster City at 800-501-3808 or email sales@castercity.com.

Key Features

• Construction: Zinc-plated steel frame, 1/4″ thick legs welded inside and out
• Weight Capacity: Up to 1,500 lbs per caster (manual, infrequent use, no abuse)
• Wheel Sizes: 4” x 2” to 8” x 2” (2″ width only) with “PCI” Crown Tread Polyurethane on Cast Iron Core
• Bearings: Roller bearings (standard), Sealed Precision Ball Bearings (optional) with spanner bushings
• Brake Options: No Brake, TB – Top Lock Brake (+$10.00), FCB – Heavy Duty Weld On Face Contact Brake (+$50.00), TL – Total Lock Brake (+$25.00), UFCB – Universal Face Contact Brake (+$20.00)
• Fastener Type: Stem mount with threaded (TST1, TSS7, TST2, TSC7, TST8) and plain round (RDL2, RDL3, RDL4, RDL5) options
• Overall Heights: 4” x 2” wheel (5-7/16”), 5” x 2” wheel (6-5/16”), 6” x 2” wheel (7-5/16”), 8” x 2” wheel (9-5/16”)
• Applications: Warehouses, manufacturing plants, food processing facilities, automotive shops, healthcare facilities, retail storage, construction sites, aerospace, defense, pharmaceuticals, electronics assembly, textile manufacturing, marine engineering, renewable energy installations, heavy equipment repair shops, logistics hubs
