Technical Specifications
Wheel Diameter
5"
Caster City Recommendation
Ollie Recommends!
Non-Marking
Yes
Stainless Steel Grade
304 Stainless Steel
Durometer
90-95A
ISO 9001
ISO 9001:2015 Certified
Wheel Core Material
Polyolefin
Wheel Width
1.25"
Wheel Bearing
Precision Sealed Ball Bearings
Maximum Capacity (lbs)
250 lbs
Overall Height
6-3/16"
Swivel Radius
4"
Color
Red
Stainless Steel Stem Add Ons
ER17, ER21, ER25, ER26, ER27, ER28, ER29, ER9, GR91, GR95, HK1/2, RD3/4, SQ3/4, SQ7/8-GR, TS-S1, TS-S2, TS-S3, TS-S7, TS22, TS26N, TS61
Brake Codes
PTB, TB
Lube Axle Code
LA
Weight
3.25 lbs
Description
The Economy Model K3 Stainless Steel Stem Caster by Caster City is a corrosion-resistant swivel caster manufactured from 304 stainless stamped steel for stem-mount installation in wet and corrosive settings. Mounts into equipment socket holes with threaded, grip ring, or expanding adapter stems without requiring additional hardware. The double ball bearing swivel rides on polished smooth raceways with an open design–no dust cap, no grease fitting–that ensures water cannot pool in the swivel after sanitation. A 1/2″ diameter rivet secures the swivel and a 3/8″ diameter axle holds the wheel. Capacity up to 350 lbs per caster depending on wheel and stem type; recommended max 1,000 lbs per set of 4. NSF listed and RoHS compliant for senior living dining services, nursing home kitchen equipment, and assisted living meal prep carts.
Injection molded polyurethane wheels are non-marking polyurethane tires that are injection molded to an industrial plastic center. This polyurethane caster wheel comes with a non-marking, injection molded polyurethane tire mechanically bonded to a polyolefin center. This caster wheel comes in a variety of colors including red, gray, blue, and black. These caster wheels are especially suited for use in research laboratories, hospitals, food service, schools, bakeries and other institutional applications. They withstand exposure to many chemicals and solvents. These caster wheels are easier rolling than gray rubber on smooth floors. This caster wheel has a durometer of 90-95A which assists in vibration and noise dampening. This polyurethane caster wheel is assembled with a sealed precision ball bearing that is further guarded by two plastic spanner bushings which also act as thread guards, rotating against the axle and further protecting the bearing from direct water or chemical exposure. Injection molded caster wheels are not designed to carry large amounts of weight in static load applications, please consult with us for a better choice. Ideal for hospitals, food service, and laboratory equipment.
FAQ
Economy Stainless Steel Stem Caster Model K3 with Polyurethane Wheel on Polyolefin
What is the Economy Stainless Steel Stem Caster Model K3 with Polyurethane Wheel on Polyolefin?
The Economy Stainless Steel Stem Caster Model K3 with Polyurethane Wheel on Polyolefin is a light-duty caster made from stamped 304 stainless steel, designed for wet, corrosive environments. It has a capacity of up to 300 lbs per caster (150 lbs when parked), features a double ball raceway swivel with a 1/2″ stainless steel rivet, and uses a 3/8″ axle bolt. The polyurethane tread on a polyolefin core, with sealed ball bearings and thread guards, ensures smooth, quiet rolling without marking floors.
What environments is the Economy Stainless Steel Stem Caster Model K3 suited for?
This caster is designed for food service plants, hospitals, research labs, schools, bakeries, and light industrial settings with smooth floors. Its 304 stainless steel construction resists rust in wet or corrosive conditions, making it ideal for washdown applications like animal labs or butcher tables, while meeting NSF and ROHS standards for hygiene.
What is the weight capacity of the Economy Stainless Steel Stem Caster Model K3?
The Model K3 has a capacity of up to 300 lbs per caster for manual movement and 150 lbs when parked. To avoid overloading, divide the total equipment load by the number of casters, ensuring each caster’s capacity exceeds the calculated load for uneven surfaces or dynamic forces.
What is the temperature range of the Economy Stainless Steel Stem Caster Model K3?
The polyurethane on polyolefin wheel operates in temperatures from -20°F to 180°F, suitable for light-duty applications. For higher temperature needs, such as autoclaving, consult Caster City at 800-501-3808 to explore alternative wheel options.
What are the key features of the Economy Stainless Steel Stem Caster Model K3?
It features a 304 stainless steel frame, a double ball raceway swivel with a 1/2″ rivet, and a 3/8″ axle bolt with an optional lube axle. The wheel is polyurethane on a polyolefin core with sealed ball bearings, offering chemical resistance, floor protection, and a capacity of 300 lbs per caster. It lacks a dust cap and grease fitting for better washdown drainage.
What wheel options are available for the Economy Stainless Steel Stem Caster Model K3?
The Model K3 comes with a polyurethane on polyolefin wheel with sealed ball bearings, but other wheel options are available, including polyolefin for standing loads to prevent flat spots. Wheel sizes range from 3″ to 5″ in diameter, and additional bearing types like Delrin or plain bore can be selected based on application needs.
Is the Economy Stainless Steel Stem Caster Model K3 resistant to chemicals?
Yes, the 304 stainless steel frame resists corrosion from water, chemicals, and washdowns. The polyurethane on polyolefin wheel also resists oils, cleaning solutions, and mild acids, making it suitable for food processing, labs, and healthcare settings with frequent sanitation.
What is the durometer of the Economy Stainless Steel Stem Caster Model K3 wheel?
The polyurethane on polyolefin wheel has a Shore A durometer of approximately 90 (±5), providing a balance of durability and smooth rolling on flat surfaces, while protecting floors from marks in light-duty applications.
What is the lead time for the Economy Stainless Steel Stem Caster Model K3?
The Model K3 has a fast lead time, typically 2 days, allowing quick delivery for industrial buyers. Orders can be placed through Caster City’s website or by calling 800-501-3808 for prompt processing.
What are the mounting specifications for the Economy Stainless Steel Stem Caster Model K3?
The caster uses a stem for mounting, with options like threaded stems, grip rings, or bolt holes (e.g., 1/2″ hole for a bolt), depending on the stem type selected. The wheel uses bearings for a 3/8″ axle, ensuring secure attachment for light-duty carts.
How should the Economy Stainless Steel Stem Caster Model K3 be maintained?
Maintenance is minimal due to its open swivel design and lack of grease fitting, which prevents water retention. Clean the caster regularly to remove debris, especially after washdowns, to maintain performance in corrosive environments.
Where can I buy the Economy Stainless Steel Stem Caster Model K3?
Buy the Model K3 directly from Caster City’s website or by calling 800-501-3808. With a fast lead time and online availability, it’s accessible for industries needing corrosion-resistant, washdown-ready casters.

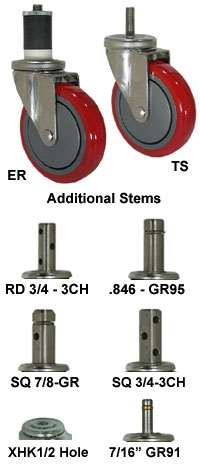

The Model K3 supports a wide range of stem types for mounting:
Expanding Rubber Stems (for round tubes, secured with a knurled nut):
ER9: Fits 7/8″ to 1″ round tubes, 1-7/8″ length, expands 0.730″ to 0.851″.
ER27: Fits 7/8″ to 1″ round tubes, 1-7/8″ length, expands 0.852″ to 0.927″.
ER28: Fits 1″ to 1-1/16″ round tubes, 1-7/8″ length, expands 0.928″ to 1.029″.
ER29: Fits 1-1/16″ to 1-1/8″ round tubes, 1-7/8″ length, expands 1.030″ to 1.140″.
ER17: Fits 1-1/8″ to 1-1/4″ round tubes, 2-1/4″ length, expands 1.141″ to 1.303″.
ER25: Fits 1-1/2″ to 1-9/16″ round tubes, 2-1/4″ length, expands 1.300″ to 1.425″.
ER26: Fits 1-5/8″ to 1-11/16″ round tubes, 2-1/4″ length, expands 1.426″ to 1.589″.
ER21: Fits 1-7/8″ to 1-9/16″ round tubes, 2-1/4″ length, expands 1.590″ to 1.950″.
Grip Ring Stems (for sockets, secured by a grip ring):
GR91: 7/16″ diameter, 1-7/16″ length, 1-1/8″ usable length below grip ring.
GR95: 7/8″ diameter, 1-7/8″ length, 1-1/2″ usable length below grip ring.
Square and Round Metal Stems (for square or round metal tubes):
SQ3/4: 3/4″ square stem, 1-1/4″ length, fits 3/4″ square tubes, 1-1/8″ usable length.
SQ7/8-GR: 7/8″ round stem with grip ring, 2-1/4″ length, fits 7/8″ round tubes, 1-1/2″ usable length.
SQ7/8: 7/8″ round stem, 2-1/4″ length, fits 7/8″ round tubes, 1-1/2″ usable length.
Threaded Stems (for threaded holes or with a nut):
TS81: 3/8-16 thread, 1″ length.
TS82: 3/8-16 thread, 1-1/2″ length.
TS22: 1/2-13 thread, 1-1/2″ length.
TS26N: 1/2-13 thread, 2-3/4″ length.
TS5/8: 5/8-11 thread, 1-3/4″ length.
TS3/4: 3/4-10 thread, 1-3/4″ length.
TSC1: 5/8-11 thread, 4″ length.
TSC2: 3/4-10 thread, 4″ length.
TSC3: 3/4-10 thread, 6″ length.
These stem types and sizes ensure compatibility with a wide range of equipment setups in light-duty applications.
Our #1 goal is to help you find the best caster and wheels for your needs. If you need help finding the right casters, contact our team of professionals. You can also customize many of our casters with a variety of options such as swivel locks, wheel brakes and zerk fittings. We ship our products from assembly plants in Georgia, Pennsylvania, Virginia, Texas, Nevada and Canada. Whether you’re a one-man shop or a global giant, we can provide you with: We specialize in Business to Business, however, consumer orders are gladly accepted and we can provide you with:
- Fastest Lead Time in the Industry
- Caster performance data.
- Comparative data.
- Customized caster solutions.
- Help with caster solutions.
- Case studies by industry or application.
- Manufacturer and Distributor of over $25 million dollars in Finished Component Parts
- Majority of Orders Processed and Shipped in 2 Days or Less
If you have any questions about your measurements, please call 800-501-3808
