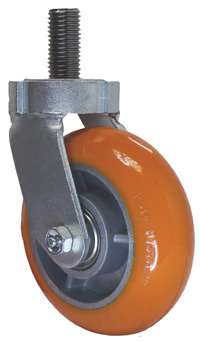

6″ Orange Crown Tread Polyurethane on Aluminum – Stem Caster G15
$162.96
In Stock
Please select any add ons you require for your caster and if you are selecting multiple option types, add all of the quantity for the first choice and then make your selections for the second, third, fourth, etc… choices. (Example: 2 With Brakes and 2 Without Brakes)
Technical Specifications
Maximum Capacity (lbs)
1000 lbs
ISO 9001
ISO 9001:2015 Certified
Wheel Core Material
Aluminum
Wheel Diameter
6"
Caster City Recommendation
Ollie Recommends!
Non-Marking
Yes
Kingpinless
Yes
Wheel Width
2"
Wheel Bearing
Precision Sealed Ball Bearings
Overall Height
7-5/16"
Swivel Radius
4-3/4"
Color
Orange
G15 Stem Zinc Add Ons
RDL2, RDL3, RDL4, RDL5, TSC7, TSS7, TST1, TST2
Model G15 Fastener Type
Round Stem, Threaded Stem
Mounting Type
Stem
Weight
10 lbs
- Description
- FAQ
- Application Use
- Reviews
- CASTER CITY GUARANTEE
- Measurement Conversion Table
- Articles and How to Guides
Description
Stem Caster Model G15 has the highest capacity ratings of all our model stem casters. This is the beginning of our industrial casters built with a precision machined swivel bearing for dependable performance. Advantages of the precision machined bearing include easier swiveling, reduced swivel vibration, and longer trouble free service. The caster frame is hot-forged construction with legs welded to the swivel bearing for maximum strength. Zinc plated for rust resistance, this caster comes with lubrication fittings for all moveable parts. Rated up to 1,500 lbs per caster only if infrequently moved in a manual application where there is no abuse. G15 stems are most often bought with a threaded stem. Caster City offers ¾” and 1″ diameter threaded stems. The weight on a threaded stem caster is supposed to be supported on the top of the turn bearing, not somewhere above it on the thread stem. This caster was not built to be used as a leveling device. You should fully thread this caster to your application. Plain round stems are also available with model G15 stem casters. Plain round stems are held inside tubing by drilling a hole through the tubing and the stem, then installing a bolt through the cross hole. Plain round stem diameters include ¾”, ⅞”, 1″, and 1-⅜”. G15 stem casters should be used only in manually moved applications. They are only made in a swivel caster design. There is no swivel lock and rigid caster option. However, a wheel brake can be provided but keep in mind that these casters are not designed to hold weight on an incline. The wheel is mounted on a 1/2″ diameter axle with a locking nut. All casters ship from Texas, Ohio, or Washington.
The UAO industrial caster wheel features a robust crown tread polyurethane tire chemically and mechanically bonded to a sturdy aluminum hub. This orange polyurethane on aluminum caster wheel offers higher aesthetic value than iron centered wheels and is lighter than standard polyurethane on iron wheels. The wide crown tread is engineered for seamless directional changes. The Durometer is 90A, offering a semi-cushioned ride that is flexible enough to climb over small debris, door jambs, and expansion joints. Given the same size load on a smooth floor, a polyurethane caster wheel rolls easier than the same size conventional rubber caster wheel. This caster wheel offers superior load capacity compared to hard composition or metal wheels with enhanced floor protection. This caster wheel comes with high-efficiency, maintenance-free precision sealed ball bearings. Polyurethane caster wheels can have their chemical bonds weakened by overloading, chemical exposure, heat from continuous usage, or heavy impacts. Ideal for distribution centers, logistics carts, and light industrial applications.
Wheel materials (treads) vary to match specific applications, including:
- Rubber (e.g., gray soft rubber with crown tread): Quiet, floor-protecting, and non-marking for smooth indoor surfaces.
- Polyurethane (e.g., all polyurethane, crown orange polyurethane on iron core, red crown polyurethane on cast iron core): Durable, non-marking, and resistant to chemicals/oils, ideal for institutional or factory floors.
- Polyolefin: Lightweight, affordable, and impact-resistant for general use.
- Nylon: High-strength and abrasion-resistant for rougher surfaces.
- Phenolic: Hard and heat-resistant for heavy loads in dry environments.
- Steel: Caster City offers Ductile Steel and Forged Steel wheels as options for this heavy duty industrial caster.
Bearing choices for the wheels further enhance performance and longevity, with options including:
- B (Ball Bearings): Smooth rolling for moderate loads. Lowest initial force needed to get moving.
- BRNZ (Bronze): High Temperature Bearing for High Heat Applications. Low-maintenance and corrosion-resistant.
- D (Delrin): Self-lubricating plastic for quiet, lightweight operation where frequent wash-downs occur.
- PS (Precision Sealed Ball Bearings): Maintenance-free, high-precision for smoother, longer-lasting performance (standard on many polyurethane wheels).
- P (Plain Bore): Simple and economical for basic applications.
- R (Roller Bearings): Cost Effective and a great choice for many industrial applications.
The swivel construction features precision-machined combination load and thrust bearings with heat-treated raceways for reduced vibration, easier swiveling, and extended durability— Kingpinless Caster Design has no center pin and avoids weakpoints and failures occurring.
Optional add-ons enhance functionality:
- TB (Top Lock Brake): A pedal on the side of the wheel locks only the wheel’s rotation.
- TL (Total Lock Brake): Simultaneously locks both the wheel and the swivel mechanism for maximum stability.
- UFCB (Bolt-On Universal Face Contact Brake): A versatile, bolt-on brake that engages the wheel’s face to prevent movement.
- FCB (Heavy Duty Weld-On Face Contact Brake): A robust, permanently welded brake for heavy-duty applications requiring secure wheel locking.
These features, combined with the flexible wheel and bearing selections, make the G15 a versatile choice for industrial settings where durability, high load capacity, and customization are critical, provided the application aligns with its hand-powered design. For CAD files, exact capacities per configuration, or tailored recommendations, contact Caster City at sales@castercity.com or 800-501-3808.
Threaded Stem Casters should NOT be used as a “Leveling Device”!
TYPES OF STEMS FOR THIS MODEL
THREADED STEMS:
- TST1 – Threaded Stem 3/4″-10 x 2-1/2″ Long
- TSS7 – Threaded Stem 3/4″-10 x 4-1/2″ Long
- TST2 – Threaded Stem 1″-8 x 2-1/4″ Long
- TSC7 – Threaded Stem 1″-8 x 4″ Long
- TSS1 – Threaded Stem 1/2″-13 x 4″ (Good for only 350 lbs)
- TSD7 – Threaded Stem 3/4″-10 x 4″ Long
- TSD1 – Threaded Stem 1″-8 x 6-1/4″ Long
- TSS3 – Threaded Stem 3/4″-10 x 6″ Long
PLAIN ROUND STEMS:
- RDL2 – Plain Round Stem 3/4″ x 4″ Long (To Drill Your Own Cross-Holes)
- RDL3 – Plain Round Stem 7/8″ x 4″ Long (To Drill Your Own Cross-Holes)
- RDL4 – Plain Round Stem 1″ x 4″ Long (To Drill Your Own Cross-Holes)
- RDL5 – Plain Round Stem 1-3/8″ x 4″ Long (To Drill Your Own Cross-Holes)
FAQ
Zinc-Plated Total Locking Kingpinless Stem Caster Model G15 with 2-Inch Wide Polyurethane on Aluminum (UAO/UAC) Caster Wheel
What material is the Polyurethane on Aluminum (UAO/UAC) Caster Wheel made from in the Zinc-Plated Total Locking Kingpinless Stem Caster Model G15?
The Polyurethane on Aluminum (UAO/UAC) Caster Wheel in the Model G15 heavy-duty total locking caster has non-marking injection molded polyurethane tires mechanically bonded to an aluminum center, available in red, gray, black, or blue colors, with a Shore 90A durometer for smooth rolling in demanding settings.
What applications are best for the heavy-duty total locking caster with Polyurethane on Aluminum (UAO/UAC) Caster Wheels in labs and hospitals?
The heavy-duty total locking caster with Polyurethane on Aluminum (UAO/UAC) Caster Wheels is perfect for labs, hospitals, and food processing plants in institutional settings, where an industrial kingpinless stem caster moves equipment like carts and tables on smooth floors in dry environments, keeping equipment secure with its total lock brake.
What bearing type comes with the Polyurethane on Aluminum (UAO/UAC) Caster Wheel in the heavy-duty total locking caster?
The Polyurethane on Aluminum (UAO/UAC) Caster Wheel in the heavy-duty total locking caster comes standard with precision sealed ball bearings with top hat spanners for a 1/2” axle, keeping smooth rolling in institutional applications on smooth floors.
What stem types are available for the Zinc-Plated Total Locking Kingpinless Stem Caster Model G15 with Polyurethane on Aluminum (UAO/UAC) Caster Wheels?
The Zinc-Plated Total Locking Kingpinless Stem Caster Model G15 with Polyurethane on Aluminum (UAO/UAC) Caster Wheels is compatible with grip ring stems, threaded stems, round stems, square stems, stems with cross holes (both round and square), and expanding rubber stems, providing versatile mounting options for institutional equipment like carts and tables in labs or hospitals.
Can the Polyurethane on Aluminum (UAO/UAC) Caster Wheel in the heavy-duty industrial caster roll on rough floors?
No, the Polyurethane on Aluminum (UAO/UAC) Caster Wheel in the heavy-duty industrial caster is built for smooth floor surfaces only—rough floors or obstructions will damage these zinc-plated casters and shorten their life.
Are the zinc-plated casters with Polyurethane on Aluminum (UAO/UAC) Caster Wheels good for standing loads?
Nope, the zinc-plated casters with Polyurethane on Aluminum (UAO/UAC) Caster Wheels don’t work for standing loads—don’t exceed 70% of the rated capacity for applications parked for prolonged periods, as the tires may cause flat-spotting.
How do I protect the Polyurethane on Aluminum (UAO/UAC) Caster Wheel in the Zinc-Plated Total Locking Kingpinless Stem Caster Model G15 from damage?
Keep the Polyurethane on Aluminum (UAO/UAC) Caster Wheel in the Model G15 industrial kingpinless caster free from shock, overloading, abuse, obstructions, poor floors, rack washers, and exposure to some chemicals, impact, or heat buildup from continuous usage, which can weaken the bonding agent holding the tire to its center and affect the zinc-plated construction’s performance.
Do the Polyurethane on Aluminum (UAO/UAC) Caster Wheels in the heavy-duty total locking caster leave marks on floors in institutional settings?
No, the non-marking injection molded polyurethane tire build of the Polyurethane on Aluminum (UAO/UAC) Caster Wheels in the heavy-duty total locking caster is ideal for protecting floor surfaces in labs or hospital settings.
Why are the heavy-duty total locking casters with Polyurethane on Aluminum (UAO/UAC) Caster Wheels good for institutional applications?
The heavy-duty total locking casters with Polyurethane on Aluminum (UAO/UAC) Caster Wheels roll easier than gray rubber on smooth floors, withstand impacts and heavy loads while offering a semi-cushioned ride with a flexible crown tread that helps with efficiently changing directions, with the zinc-plated assembly ensuring rust resistance and stability, making them a smart choice for institutional applications without a big price tag.
What’s the load capacity and temperature range for the Polyurethane on Aluminum (UAO/UAC) Caster Wheel in the industrial stem caster, and how do I adjust for prolonged parking?
The Polyurethane on Aluminum (UAO/UAC) Caster Wheel in the industrial stem caster holds up to 1200 lbs per wheel at room temperature and works from 32°F to 180°F, but don’t exceed 70% of the rated capacity for applications parked for prolonged periods to avoid flat-spotting.
How does the ergonomic design of the Polyurethane on Aluminum (UAO/UAC) Caster Wheel in the heavy-duty total locking caster benefit users in institutional settings?
The ergonomic design of the Polyurethane on Aluminum (UAO/UAC) Caster Wheel in the heavy-duty total locking caster, with its flexible polyurethane crown tread and semi-cushioned ride, reduces user fatigue by making it easier to push heavy loads and change directions efficiently, while the larger swivel radius on 6” and 8” wheels minimizes shimmy vibration, enhancing comfort and control during manual operation in institutional settings like labs and hospitals.
How does the metal pedal brake work on the Total Locking Caster Model G15 with the Polyurethane on Aluminum (UAO/UAC) Caster Wheel and zinc-plated assembly?
The metal pedal brake on the Total Locking Caster Model G15 locks both the wheel and the swivel bearing at the same time, completely immobilizing the zinc-plated assembly and turning it into an extension of the leg, keeping the heavy-duty caster secure for safety in stationary applications like carts or tables.
Why is the total lock brake on the Model G15 industrial kingpinless caster with Polyurethane on Aluminum (UAO/UAC) Caster Wheels important for safety in hospital or lab settings?
The total lock brake on the Model G15 industrial kingpinless caster with Polyurethane on Aluminum (UAO/UAC) Caster Wheels locks the swivel and the wheel, completely immobilizing the zinc-plated assembly to prevent the object—like a cart, table, or lab equipment—from moving when someone leans against it while working, cleaning, or setting up, ensuring safety during such tasks. Total locking casters are important because in cutting, welding, sawing, or similar tasks, people will lean against the worktable while doing their dangerous cut, and the total lock caster prevents anything in the caster from moving, totally immobilizing wheel and swivel rotation of the caster.
What makes the total lock brake on the Model G15 heavy-duty total locking caster a trusted safety feature for institutional applications?
The total lock brake on the Model G15 heavy-duty total locking caster ensures complete immobilization by locking both the wheel and the swivel bearing simultaneously, transforming the caster into a rigid extension of the equipment leg, preventing any movement during critical tasks like cleaning, maintenance, or setup in institutional settings, making it a trusted choice for safety-focused environments.
How does the total lock brake on the Model G15 heavy-duty industrial caster enhance stability for hospital or lab equipment in institutional settings?
The total lock brake on the Model G15 heavy-duty industrial caster locks the wheel and swivel bearing at the same time, fully immobilizing the zinc-plated assembly to eliminate any risk of movement, ensuring hospital or lab equipment—like carts, tables, or workstations—stays firmly in place during cleaning, sterilization, or setup in institutional settings, providing unmatched stability and safety in high-precision environments. Total locking casters are important because in cutting, welding, sawing, or similar tasks, people will lean against the worktable while doing their dangerous cut, and the total lock caster prevents anything in the caster from moving, totally immobilizing wheel and swivel rotation of the caster.
Application Use
Applications for Stainless Steel Model G15:
- Pharmaceutical Manufacturing: Sterile equipment movers, cleanroom transport carts, autoclave carts for sterilizing tools, mobile storage cabinets.
- Healthcare Facilities: Heavy medical equipment transport (e.g., MRI, CT scanners), sterilizer carts for autoclaving instruments, mobile autoclave units for surgical tools.
- Research Laboratories: Autoclave carts for sterilizing lab instruments, hazardous material transport carts, sensitive equipment movers, mobile workstations.
- Food Processing Plants: Autoclave carts for sterilizing food processing tools, mobile processing equipment, washdown-ready maintenance carts, bakery rack transport.
- Commercial Kitchens and Catering: Autoclave carts for sterilizing kitchen tools, heavy kitchen carts, mobile serving stations, storage carts.
- Dairy Processing: Autoclave carts for sterilizing milk processing tools, cheese press movers, mobile storage units.
- Breweries and Beverage Production: Autoclave carts for sterilizing brewing equipment, keg transport carts, mobile bottling line equipment.
- Fisheries: Autoclave carts for sterilizing fish processing tools, mobile storage units, washdown-ready maintenance carts.
- Cruise Ships and Yachts: Autoclave carts for sterilizing galley tools, passenger service carts, maintenance equipment movers.
- Semiconductor Manufacturing: Autoclave carts for sterilizing cleanroom tools, wafer handling carts, photolithography equipment movers, cleanroom furniture.
- Waste Management: Autoclave carts for sterilizing hazardous waste handling tools, mobile recycling equipment, corrosive waste material transport.
- Textile Industry: Autoclave carts for sterilizing dyeing equipment, mobile fabric carts, maintenance tool carts.
- Pulp and Paper Industry: Autoclave carts for sterilizing chemical pulp tools, mobile processing equipment, maintenance carts.
- Agricultural Processing: Autoclave carts for sterilizing pesticide mixing tools, fertilizer transport carts, mobile storage units.
- Semiconductor manufacturing: wafer carts, bio-carts, Wafer Box Transport Carts
