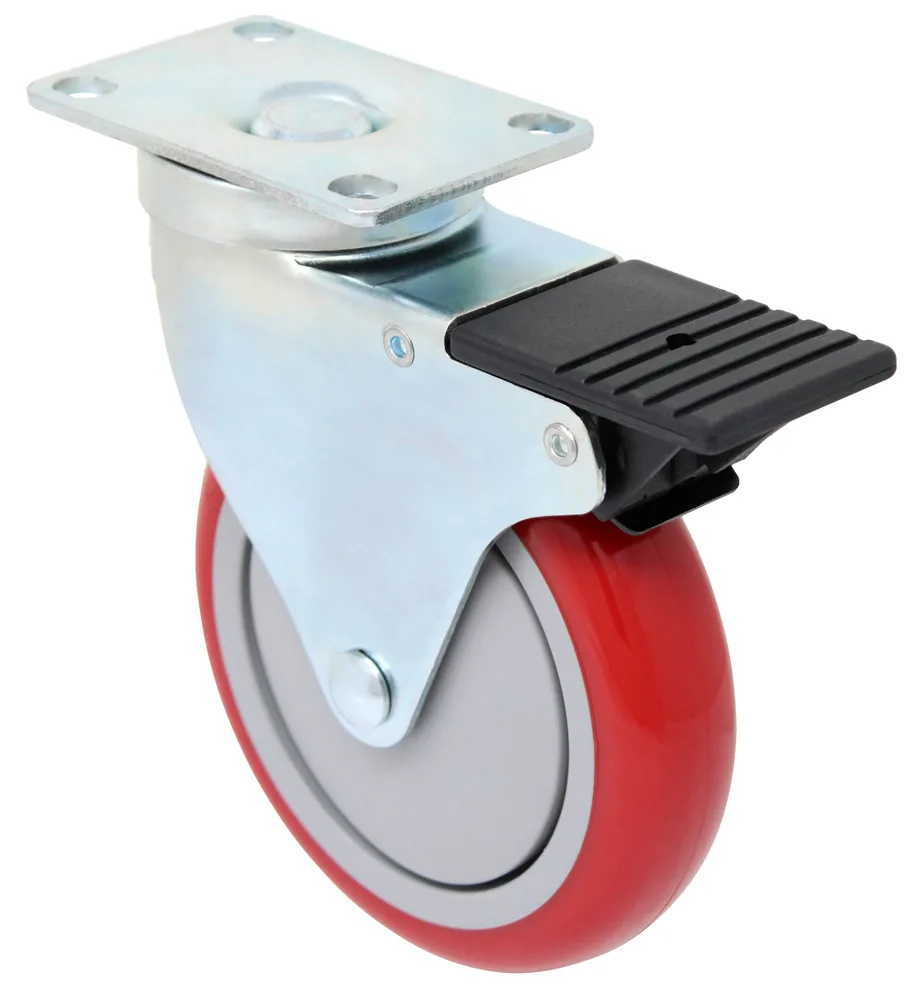

Total Locking Casters – Caster Model K3A

Capacity up to 300 pounds per caster. These institutional casters are ideal for any light duty application where the caster must be totally immobile when the caster brake is applied. Caster Model K3A has a unique brake which locks both the wheel and the swivel bearing at the same time.

Total Locking Plate Caster Model K3A Features:

img Swivel Construction Stamped steel. Swivel has double ball bearing with hardened raceways. Metal cover shields swivel bearings from dirt and dust.
img Finish: external metal parts are Zinc plated.
img METAL PEDAL FOR BRAKE
img Axle is 3/8″ diameter bolt with lock nut.
img Center Pin is a 1/2″ diameter steel rivet.
img Wheel Bearing Types (PS= Precision Sealed Ball Bearings, B= Ball Bearings, D= Delrin Bearings, RB= Roller Bearing, P= Plain Bore.)

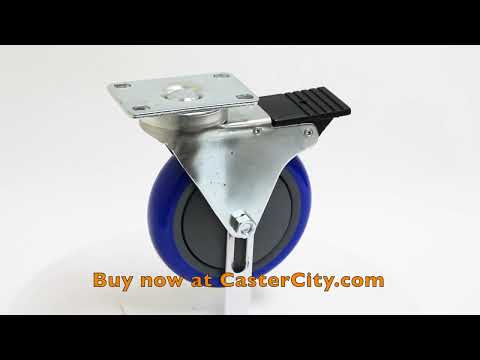

Thumbnail 1

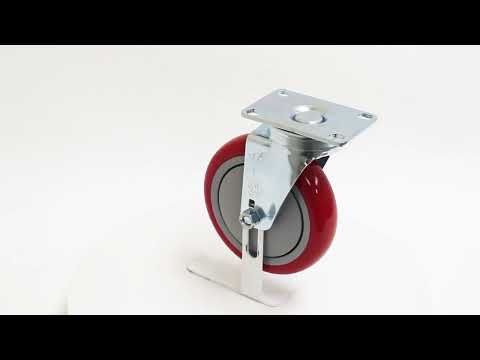

Thumbnail 2

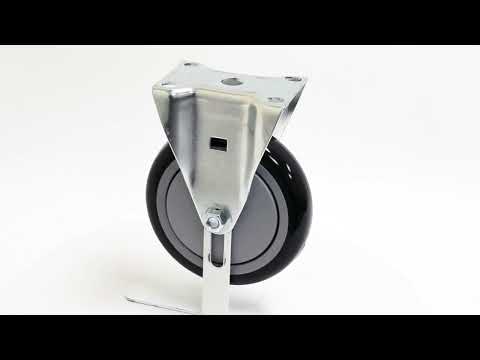

Thumbnail 3

Total Locking Caster Model K3A Chart
(Click the Part Number to Order)

When you put your mouse over the words in the wheel description column you see a picture of the wheel. Click on the part number in any of the three columns to see the complete caster.

CASTER WHEEL DIAM. TREAD WIDTH WHEEL TREAD MATERIAL Click below for Replacement Wheels
 WHEEL TREAD MATERIAL Click below for Replacement Wheels
 MAX CAP. EACH CASTER LBS. Swivel Caster w/ Total-Lock Brake Part Number Swivel Caster ( No Brake ) Part Number Rigid Caster ( No Brake ) Part Number OVERALL HEIGHT
3″ 1 1/4″ Gray Soft Rubber
 PS 150 K3ARF3X1.25-ML K3ARF3X1.25-S K3ARF3X1.25-R 4 1/8″
3″ 1 1/4″ Super Soft Gray Soft Rubber
 B 105 K3ARS3X1.25-ML K3ARS3X1.25-S K3ARS3X1.25-R 4 1/8″
3″ 1 1/4″ High Capacity Rubber
 B 200 K3ARH3X1.25-ML K3ARH3X1.25-S K3ARH3X1.25-R 4 1/8″
3″ 1 1/4″ Maroon/Gray Premium Polyurethane
 B 250 K3APM3X1.25-ML K3APM3X1.25-S K3APM3X1.25-R 4 1/8″
3″ 1 1/4″ Gray Polyurethane
 PS 200 K3AGP3X1.25-ML K3AGP3X1.25-S K3AGP3X1.25-R 4 1/8″
3″ 1 1/4″ Black/Gray Polyurethane
 PS 200 K3ABK3X1.25-ML K3ABK3X1.25-S K3ABK3X1.25-R 4 1/8″
3″ 1 1/4″ Red/Gray Polyurethane
 PS 200 K3ARG3X1.25-ML K3ARG3X1.25-S K3ARG3X1.25-R 4 1/8″
3″ 1 1/4″ Blue/Gray Polyurethane
 PS 200 K3ABP3X1.25-ML K3ABP3X1.25-S K3ABP3X1.25-R 4 1/8″
3″ 1 1/4″ Blue Polyurethane on Aluminum
 B 250 K3APA3X1.25-ML K3APA3X1.25-S K3APA3X1.25-R 4 1/8″
3″ 1 1/4″ Polyolefin – Black
 P 250 K3APB3X1.25-ML K3APB3X1.25-S K3APB3X1.25-R 4 1/8″
3″ 1 1/4″ Polyolefin – Black Donut
 B 250 K3APB3X1.25BML K3APB3X1.25B-S K3APB3X1.25B-R 4 1/8″
3″ 1 1/4″ Nylon ( White )
 B 300 K3ANY3X1.25BML K3ANY3X1.25B-S K3ANY3X1.25B-R 4 1/8″
CASTER WHEEL DIAM. TREAD WIDTH WHEEL TREAD MATERIAL Click below for Replacement Wheels
 STD BRG TYPE MAX CAP. EACH CASTER LBS. Swivel Caster w/ Total-Lock Brake Part Number Swivel Caster ( No Brake ) Part Number Rigid Caster ( No Brake ) Part Number OVERALL HEIGHT
4″ 1 3/8″ Blue Soft Rubber
 		RB 350 K3ARC4X1.375-ML K3ARC4X1.375-S K3ARC4X1.375-R 5 1/8″
4″ 1 1/4″ Gray Soft Rubber
 PS 200 K3ARF4X1.25-ML K3ARF4X1.25-S K3ARF4X1.25-R 5 1/8″
4″ 1 1/4″ Super Soft Gray Soft Rubber
 B 120 K3ARS4X1.25-ML K3ARS4X1.25-S K3ARS4X1.25-R 5 1/8″
4″ 1 1/4″ High Capacity Rubber
 B 250 K3ARH4X1.25-ML K3ARH4X1.25-S K3ARH4X1.25-R 5 1/8″
4″ 1 1/4″ Maroon/Gray Premium Polyurethane
 B 300 K3APM4X1.25-ML K3APM4X1.25-S K3APM4X1.25-R 5 1/8″
4″ 1 1/4″ Gray Polyurethane
 PS 250 K3AGP4X1.25-ML K3AGP4X1.25-S K3AGP4X1.25-R 5 1/8″
4″ 1 1/4″ Black/Gray Polyurethane
 PS 250 K3ABK4X1.25-ML K3ABK4X1.25-S K3ABK4X1.25-R 5 1/8″
4″ 1 1/4″ Red/Gray Polyurethane
 PS 250 K3ARG4X1.25-ML K3ARG4X1.25-S K3ARG4X1.25-R 5 1/8″
4″ 1 1/4″ Blue/Gray Polyurethane
 PS 250 K3ABP4X1.25-ML K3ABP4X1.25-S K3ABP4X1.25-R 5 1/8″
4″ 1 1/4″ Blue Polyurethane on Aluminum
 B 300 K3APA4X1.25-ML K3APA4X1.25-S K3APA4X1.25-R 5 1/8″
4″ 1 1/4″ Polyolefin – Black
 P 300 K3APB4X1.25-ML K3APB4X1.25-S K3APB4X1.25-R 5 1/8″
4″ 1 1/4″ Polyolefin – Black Donut
 B 300 K3APB4X1.25BML K3APB4X1.25B-S K3APB4X1.25B-R 5 1/8″
4″ 1 1/4″ Nylon ( White )
 B 300 K3APB4X1.25-ML K3ANY4X1.25B-S K3ANY4X1.25B-R 5 1/8″
CASTER WHEEL DIAM. TREAD WIDTH WHEEL TREAD MATERIAL Click below for Replacement Wheels
 STD BRG TYPE MAX CAP. EACH CASTER LBS. Swivel Caster w/ Total-Lock Brake Part Number Swivel Caster ( No Brake ) Part Number Rigid Caster ( No Brake ) Part Number OVERALL HEIGHT
5″ 1 1/4″ Gray Soft Rubber
 PS 250 K3ARF5X1.25-ML K3ARF5X1.25-S K3ARF5X1.25-R 6 1/4″
5″ 1 1/4″ Super Soft Gray Soft Rubber
 B 125 K3ARS5X1.25-ML K3ARS5X1.25-S K3ARS5X1.25-R 6 1/4″
5″ 1 1/4″ High Capacity Rubber
 B 300 K3ARH5X1.25-ML K3ARH5X1.25-S K3ARH5X1.25-R 6 1/4″
5″ 1 1/4″ Maroon/Gray Premium Polyurethane
 B 350 K3APM5X1.25-ML K3APM5X1.25-S K3APM5X1.25-R 6 1/4″
5″ 1 1/4″ Gray Polyurethane
 PS 250 K3AGP5X1.25-ML K3AGP5X1.25-S K3AGP5X1.25-R 6 1/4″
5″ 1 1/4″ Black/Gray Polyurethane
 PS 250 K3ABK5X1.25-ML K3ABK5X1.25-S K3ABK5X1.25-R 6 1/4″
5″ 1 1/4″ Red/Gray Polyurethane
 PS 250 K3ARG5X1.25-ML K3ARG5X1.25-S K3ARG5X1.25-R 6 1/4″
5″ 1 1/4″ Blue/Gray Polyurethane
 PS 250 K3ABP5X1.25-ML K3ABP5X1.25-S K3ABP5X1.25-R 6 1/4″
5″ 1 1/4″ Blue Polyurethane on Aluminum
 B 300 K3APA5X1.25-ML K3APA5X1.25-S K3APA5X1.25-R 6 1/4″
5″ 1 1/4″ Polyolefin – Black
 P 300 K3APB5X1.25-ML K3APB5X1.25-S K3APB5X1.25-R 6 1/4″
5″ 1 1/4″ Polyolefin – Black Donut
 B 300 K3APB5X1.25BML K3APB5X1.25B-S K3APB5X1.25B-R 6 1/4″
5″ 1 1/4″ Nylon ( White )
 B 250 K3ANY5X1.25BML K3ANY5X1.25B-S K3ANY5X1.25B-R 6 1/4″
CASTER WHEEL DIAM. TREAD WIDTH WHEEL TREAD MATERIAL Click below for Replacement Wheels
 STD BRG TYPE MAX CAP. EACH CASTER LBS. Swivel Caster w/ Total-Lock Brake Part Number Swivel Caster ( No Brake ) Part Number Rigid Caster ( No Brake ) Part Number ( No Brake ) Part Number OVERALL HEIGHT
6″ 1 1/4″ Gray Soft Rubber
 PS 300 K3ARFR6X1.25ML K3ARFR6X1.25-S K3ARFR6X1.25-R 7 1/8″

Total Locking Plate Caster Model K3A Wheels


The wheels featured with Caster Model K3A are non-marking. Use the Polyolefin ( Industrial Plastic ) wheel for “Standing Loads”. Polyolefin wheels eliminate the possiblilty of a flat spot developing if the castered equipment is left parked for a prolong period.

Gray Soft Rubber and Polyurethane wheels have a sealed precision ball bearing. They provide floor and cargo protection, quiet operation, and are very easy rolling. Try a set of 4 casters. You will be amazed at their performance!

Total Locking Brake:

Combination Wheel Brake and Swivel Lock – This brake simultaneously locks the wheel and the swivel. One step on the activating pedal instantly locks the entire caster holding the equipment firmly in place. One step on the release pedal frees the swivel and wheel.

Total Lock Brake On

Total Lock Brake Off

This “Total-Lock” brake insures that the swivel caster will not turn when the wheel is locked. This combination wheel brake and swivel lock is essential for safety in some applications – such as on worktables, tablesaws, and medical equipment. The Total-Lock brake is desireable whenever a brake is needed because it makes a swivel caster totally immobile.

Swivel Radius for Casters with the Total-Lock Brake – ALL SIZES – 5″

Approximate Weights – Swivel Caster with ML Brake – 3″ wheel = 1 3/4 lbs. – 4″ wheel = 2 lbs. – 5″ wheel = 2 1/2 lbs.

Typical Application Use for the Total Locking Caster Model 3A Series:

img Workbenches
img Shop Equipment
img Kitchen Islands
img Movie & Soundstage Equipment
img Hospital / Medical Equipment
img Computer Equipment Stands and Mobile Workstations
img Electronics & Diagnostic Equipment and Carts
img Any Application requiring the item to be held firmly in place.

Need Help with your order?
(800) 501-3808

You should never select on the basis of load capacity alone. There is no industry standard for load capacity ratings and they may not include a factor for abuse. Our capacity ratings are below what the casters are capable of carrying because most applications have less than perfect conditions. Please refer to the information shown at the bottom of this page. If you have any doubt as to which wheel or caster is the BEST choice for your application contact us for a recommendation.
